Xerox Phaser 6600 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-31
Transfer/Fusing/Exit
On the sheet passed through the registration section, the toner image on the intermediate transfer belt
is transferred by the intermediate transfer belt and the Transfer Roller rotated by the drive of the
Developer Motor. Then, the sheet is fed to the exit section while its toner image is being fused by the
Heat Roller that rotated by the drive of the Main Motor. Also, the drive of the Main Motor is
transmitted to the Exit Clutch 1, and the Exit Roller is rotated in the sheet exit direction, and the print
completed sheet is ejected from the printer. The completion of the sheet exit is detected by the Exit
Sensor.

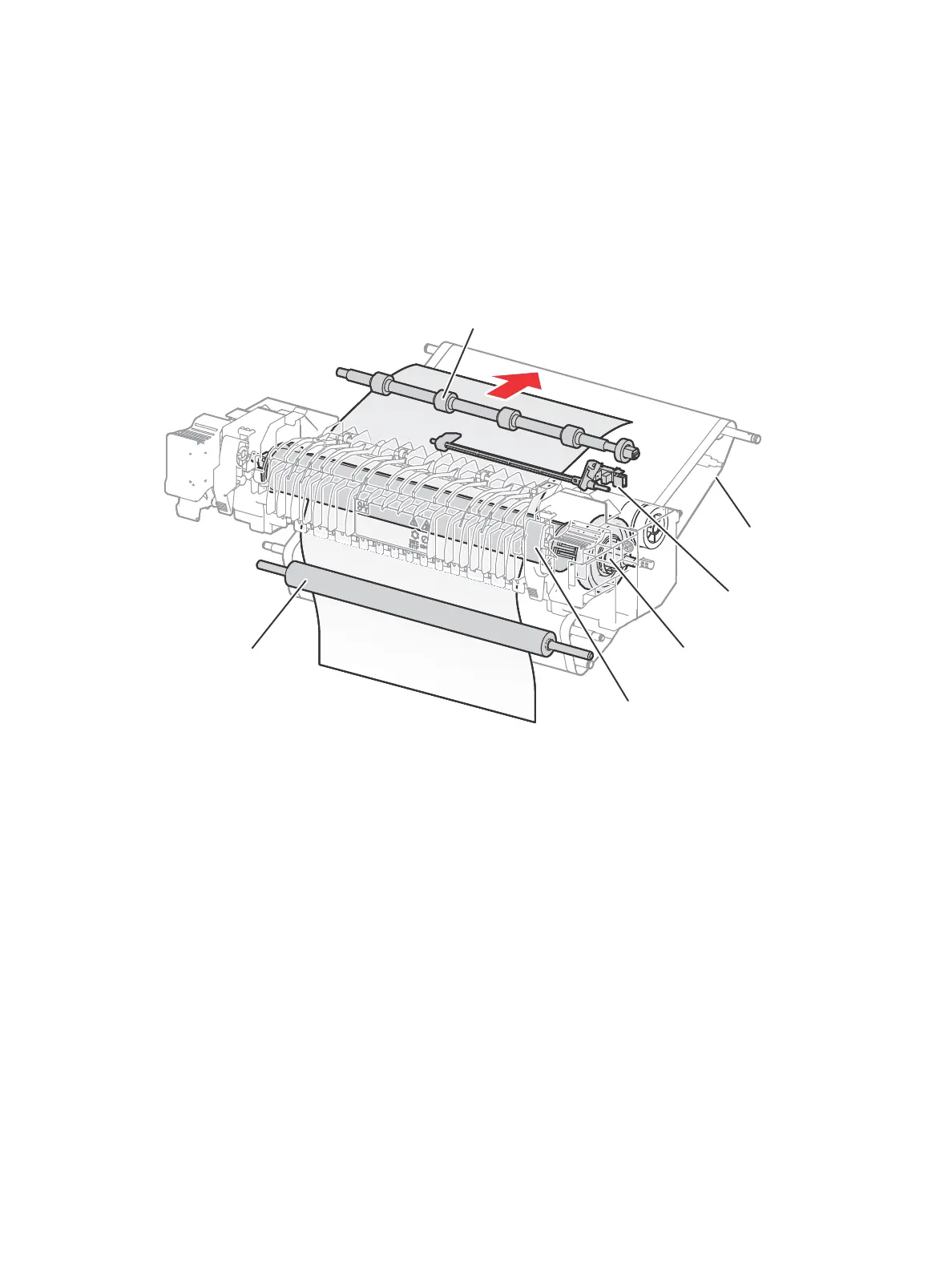

s6600-266
Exit Roller
Transfer Belt
Assembly
Exit Sensor
Heat Roller
Pressure Roller
Transfer Roller 2

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
