Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-4
CAUTION: Screws you should not loosen are painted red. Never remove the red screws because
the equipment may not operate correctly.
General notes
• Wear an anti-static wristband or the like to remove static electricity from your body.
• The string “(PL X.Y.Z)” suffixed to the part name in the procedure denotes that the part
corresponds to the plate (PL) “X.Y”, item “Z” of [Engineering Parts list], and its shape and fitting
position can be checked in [Chapter 5 Parts List].
• Use a Phillips-head (crossslot) screwdriver to remove screws shown in the illustrations , unless
otherwise specified.
• Black arrows shown in the illustrations indicate the motion for removing parts. When numbers are
assigned to these arrows, they refer to the order in the procedure.
• Refer to [7.1 Plug/Jack (P/J) Connector Locations] for the positions of connectors (P/J).

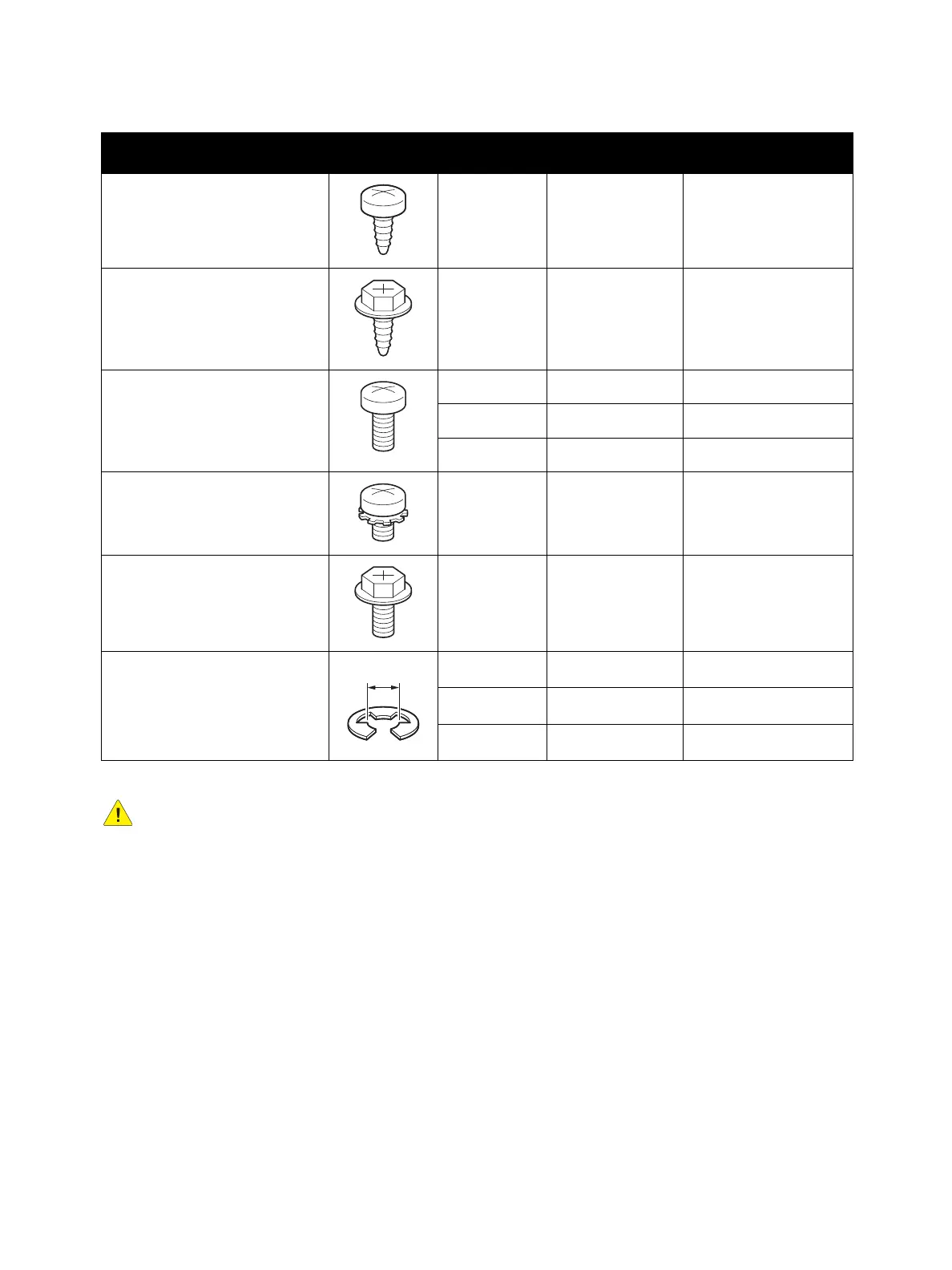

Type Shape PL No. Size PARTS No.
Screw for plastic
Silver,tapping
ST1 M3X8mm 153W 27878
Screw for plastic
Silver,tapping,with flange
ST10 M3X10mm 153W 18088
Machine screw for metal
Silver
SM3 M4X6mm 113W 35688
SM18 M3X6mm 116W 27678
SM19 M3X32mm 826E 11030
Machine screw for metal
Silver,with an extermai tooth
washer
SM5 M4X6mm 826E 25760
Machine screw for metal
Silver,with flange
SM15 M4X8mm 133W 35878
Ring-E E1 D3 354W 21278
E2 D4 354W 24278
E3 D5 354W 26278
D
To Next Page
