Xerox Phaser 6600 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-36
Laser Unit

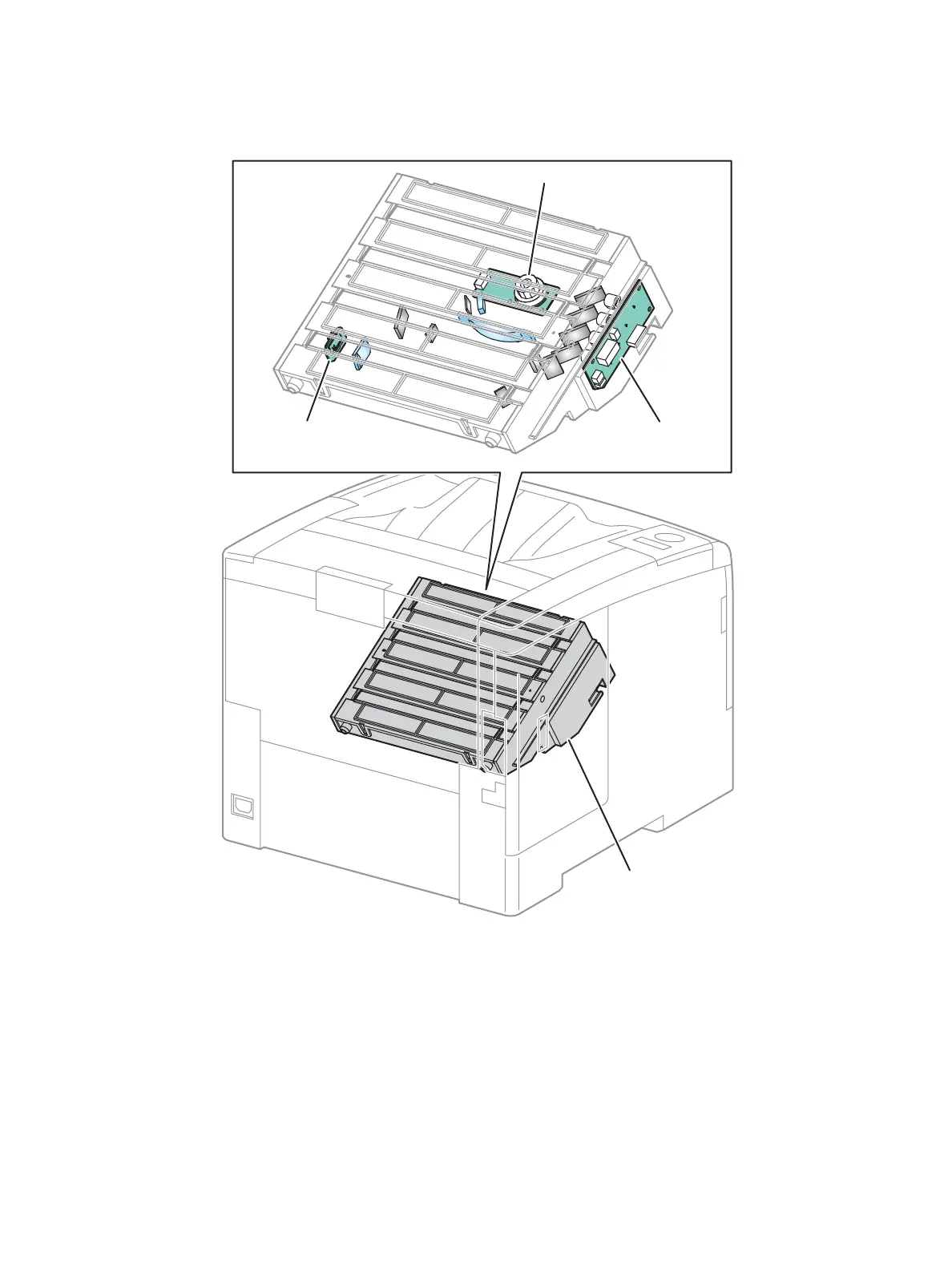

The Laser Unit (PL2.1.1) is an exposure device that outputs laser beams to form an electrostatic latent
image on the drum surface. The Laser Unit consists of the following parts.
• Scanner Motor — spins the Polygon Mirror
• Laser Diode Board — holds the Laser Diodes, converts the image data into laser beams, and
controls the other components in the Laser Unit.
• Humidity/Temperature Sensor
• SOS Sensor — detects the laser beam at the scan starting point, and sends a signal to the MCU
Board.
s6600-264
Laser UnitLaser Unit
Scanner Motor
Laser Diode BoardSOS Sensor

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
