Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-10
Laser Unit

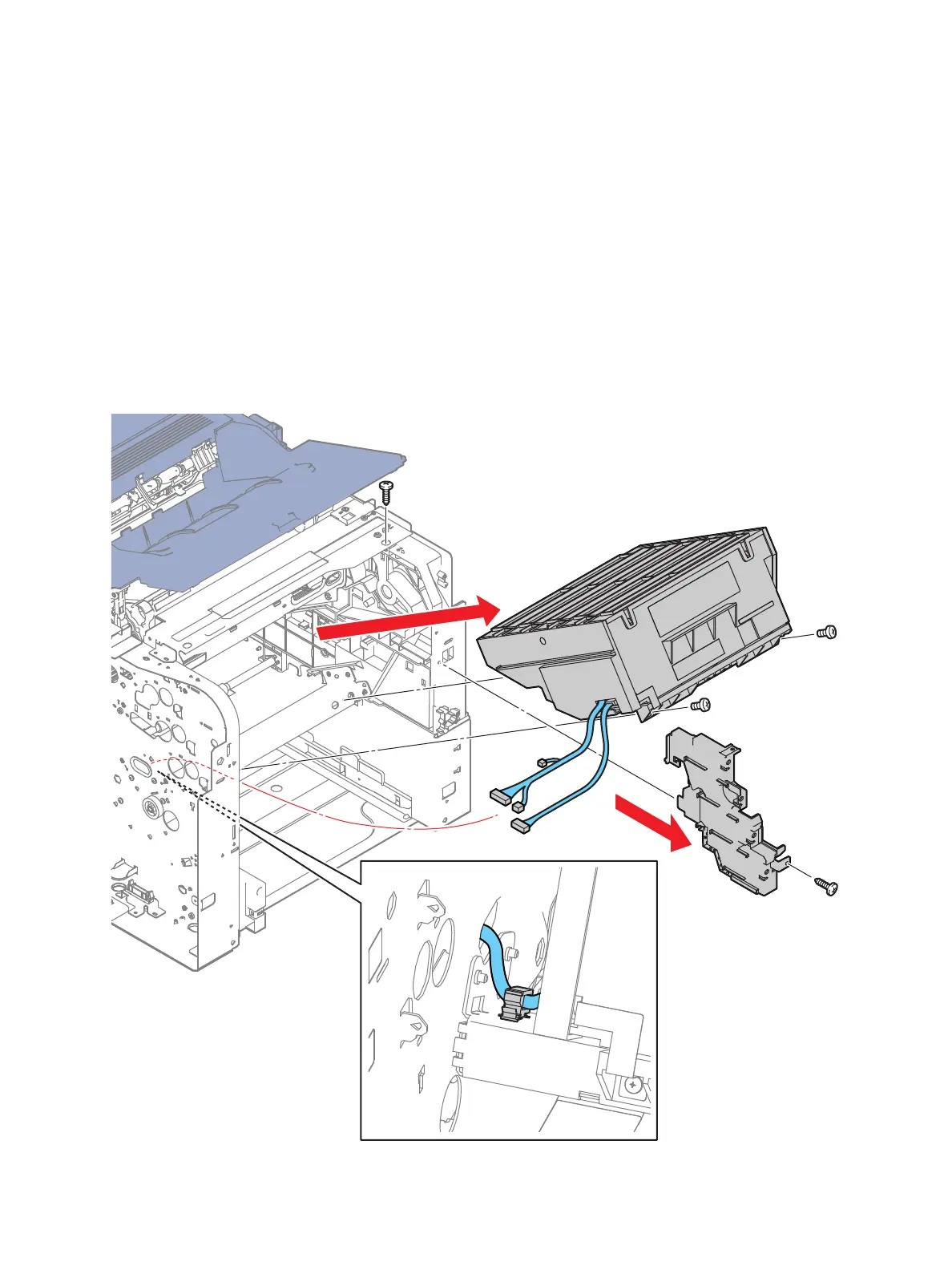

Laser Unit Assembly
PL2.1.1
1. Remove all the Dispenser Assemblies Y, M, C, K. (page 4-34)
2. Remove the two screws (silver, tapping, 8mm) that attach the Base Duct (PL4.1.2) to the printer
and remove the duct. One screw is at the top, the other at the front.
3. Release the clamp holding the harness to the Laser Unit Assembly.
4. Remove the two screws (silver, 6mm) that attach the Laser Unit Assembly and remove the Laser
Unit Assembly while pulling the harness out of the hole on the frame.
s6600-058

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
