Xerox Phaser 6600 Service Manual

Wiring
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
7-35

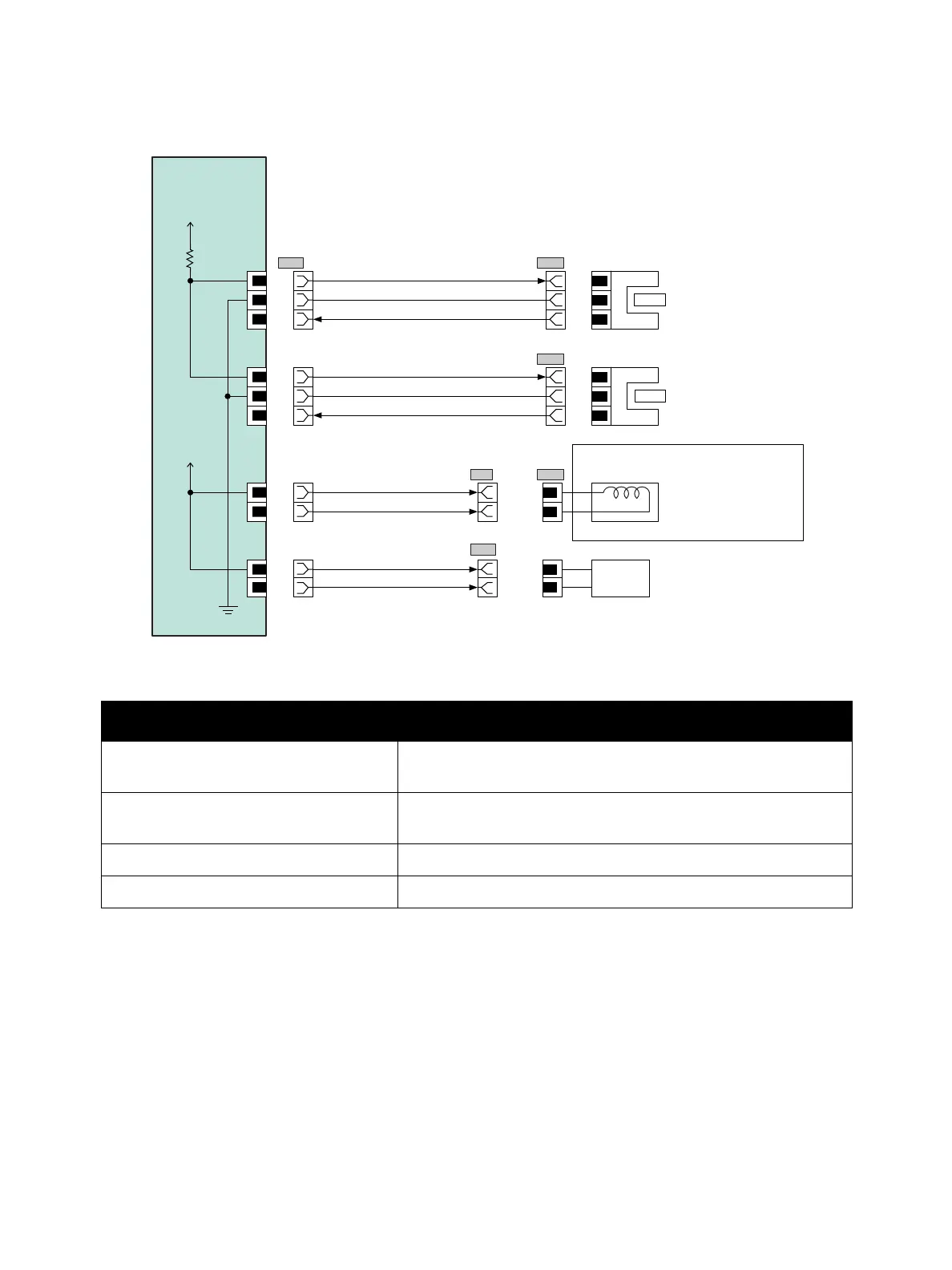

Bypass Tray (MSI)
Signal line name Description
PRE REGI SENSED SIGNAL Detect signal of paper in the Pre Registration section by the MSI
Sensor
MSI PAPER SENSED SIGNAL Detect signal of paper in the MSI section by the MSI No Paper
Sensor
TAKEAWAY CL ON ON/OFF signal of the Takeaway Clutch
MSI FEED SOLENOID ON ON/OFF signal of the MSI Feed Sorenoid
MCU Board
PL18.1.13
P/J21
1
2
+5VDC
SG
3
9
PRE REGI SENSED SIGNAL
I/L +24VDC
10
MSI FEED SOLENOID ON
P/J211
3
2
1
Bypass Tray No
Paper Sensor
PL13.2.4
Bypass Tray No
Paper Sensor
PL13.2.4
1
2
J214
2
1
Bypass Tray Feed
Solenoid
PL13.2.9
+5VDC
4
5
+5VDC
SG
6
MSI PAPER SENSED SIGNAL
P/J212
3
2
1
Takeaway
Clutch
7
8
I/L +24VDC
TAKEAWAY CL ON
I/L +24VDC
J213
2
P213
1
21
Drive Assembly
PL3.1.1
Bypass Tray Harness Assembly
PL13.2.5
s6600-223

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
