Section 8.0
MAN 06–0017H
ZIEHM QUANTUM User’s Manual Page 121 of 220
8.22 MONITOR IMAGE DISPLAYS

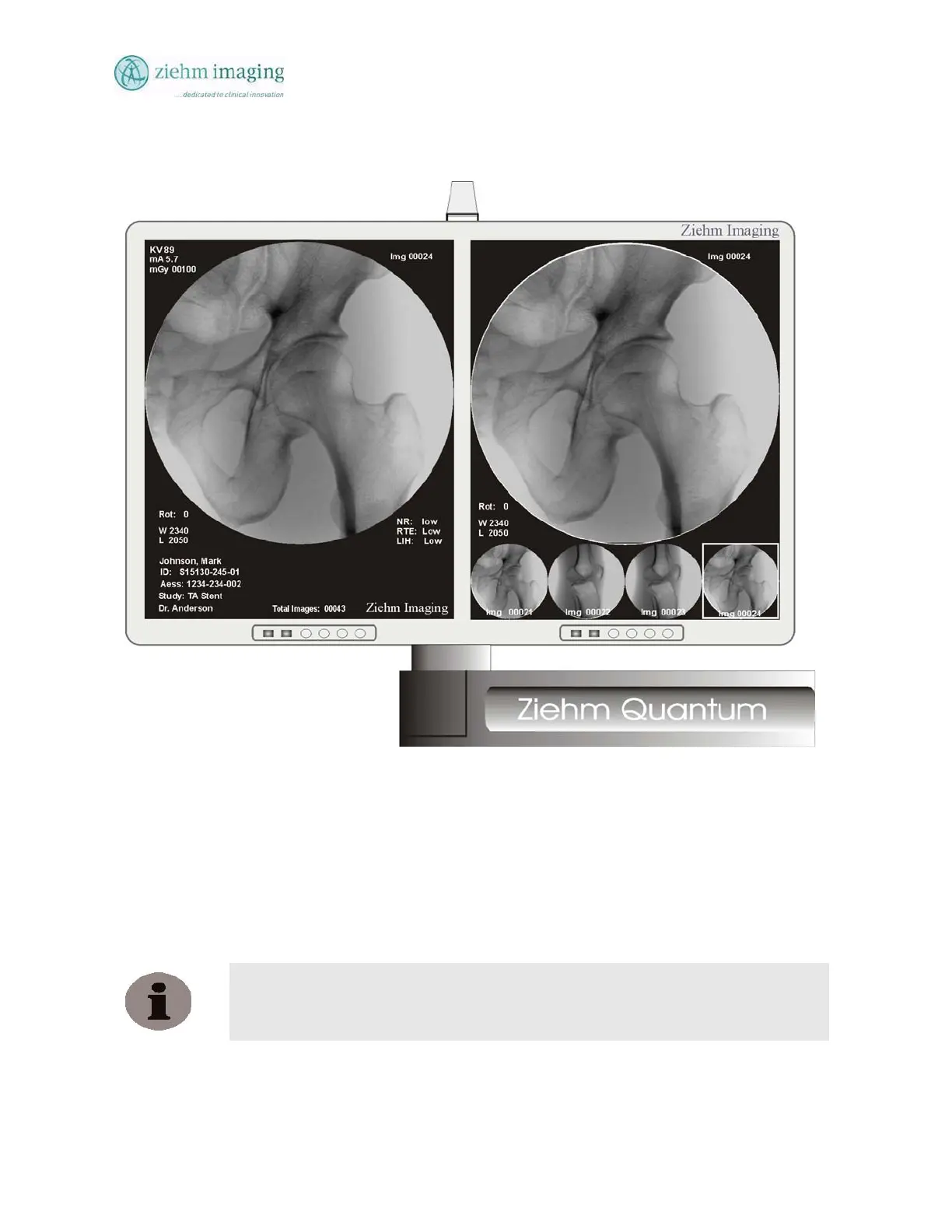

Fig 8.6: Monitor Displays
Live monitor (Left in normal mode) Reference (Right in normal mode)
The Left monitor is normally the live monitor and the Right monitor is normally the reference
monitor.
In certain circumstances such as when LIVE SWAP button is active then the right and left
monitors switches display functions and the live function display is on the right.
This mode of LIVE SWAP is used when the operator needs to view the monitors from either the
right or left side of the image intensifier. The LIVE SWAP allows the technologist to switch the
live monitor display to the outside monitor for better viewing.
NOTE:
To avoid confusion, the neutral terms ‘live monitor’ and reference monitor’ are used
throughout this manual, regardless of your custom setting.
