Ziehm Imaging, Inc. QUANTUM User Manual

Section 6.0
MAN 06–0017H
ZIEHM QUANTUM User’s Manual Page 81 of 220

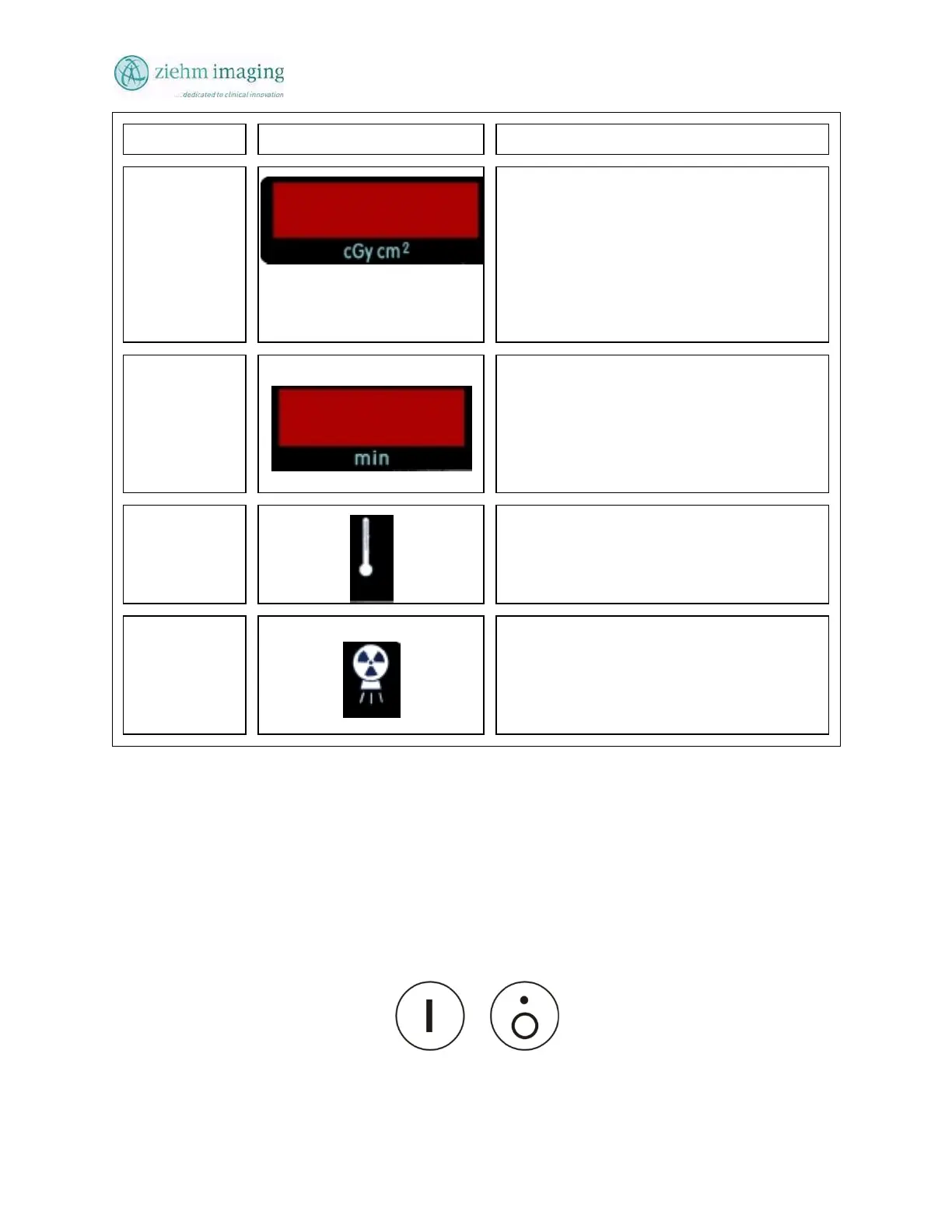

Control No. Symbol(s) Description
B
utton 38
USED ONLY FOR ERROR
CODE READ OUT
Dose Area Product (Option)
USED ONLY FOR ERROR CODE READ
OUT in the UNITED STATES
See Desk View Touch screen for AKR dose
display.
B
utton 39
Radiation Time (fluoroscopy)
Display of the accumulated radiation time for
Fluoroscopy and direct radiography for the
active patient folder in minutes and seconds.
Max (66 or 99 Min) Depending on System
settings.
B
utton 40 Thermometer
Thermal indicator, will light up when the
system has reached maximum level of
thermal loading.
B
utton 41 Radiation indicator
Lights when radiation is active, This
indicator is a representative of the radiation
on and may lead and follow by a < 0.5
seconds of actual radiation.
6.9 SWITCHING ON THE ZIEHM QUANTUM
During power up the system will display information on the Main Display monitors and will
flash, the touch screen “DESK VIEW” will display depending on system options either, a black
screen until fully powered up, or a sequence of Blue screens and system operation screens, Once
the system has fully powered up the touch screen will display the Main User interface Screen, and
the two main viewing monitors will have text but no images displayed.
The Power ON and OFF buttons are located in the upper left are of the Keyboard. The system
can only be turned at the C-arm Mobile Stand keyboard.
