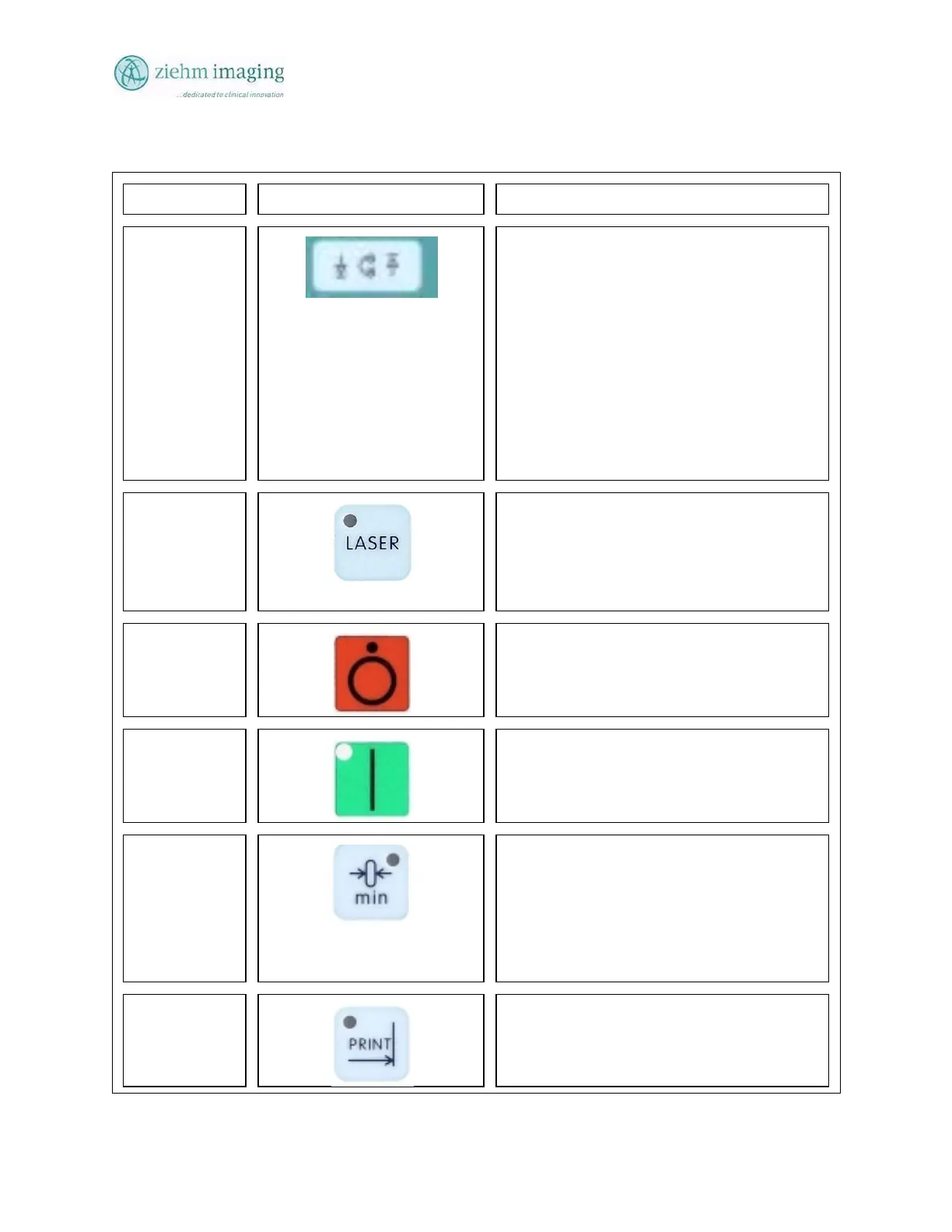

6.8 MOBILE STAND CONTROL KEYBOARD TABLE
Control No. Symbol(s) Description
Button 1 Vertical Lift
UP/Down
Provide motorized lift for the vertical column
of the C-arm
Safety Override
Vertical Down Override button. Located on
each si9de of the mobile stand forward of the
standard Vertical Lift Buttons.
Use only when it is required to go lower than
normal operating height.
Button 2 Laser ON/OFF
Activates the laser(s) on the generator and the
image intensifier. Press the button once to
activate and again to turn it off, or wait for
automatic timer to turn off after 1 minute.
Button 3 Power OFF
Deactivates the power off circuit for the
system.
Button 4 Power ON
Activates power on circuits
Button 5 Timer Reset;
Resets the 5 minute Fluoroscopic timer and
Dose area Product display reset.
Press once reset timer, Press and hold for
more than 2 seconds resets the timer and
Dose Area Product Meter
Button 6 Print Button
Not active on ZIEHM QUANTUM model
