Ziehm Imaging, Inc. QUANTUM User Manual

Section 6.0
MAN 06–0017H
ZIEHM QUANTUM User’s Manual Page 74 of 220
6.7 MOBILE STAND CONTROL KEYBOARD
The Mobile Stand control panel is designed as a fixed mechanical keyboard. For system
operation, just press the desired button directly on the button symbol. Depending on the selected
function, different button LED’s may light to show they are active.
The C-arm mobile stand control panel is different in operation and selection of functions than the
touch screen. However, the same buttons on the touch screen and the mobile stand control panel
affect the same function and operations enabling the operator to use the touch or mobile stand
control panel.

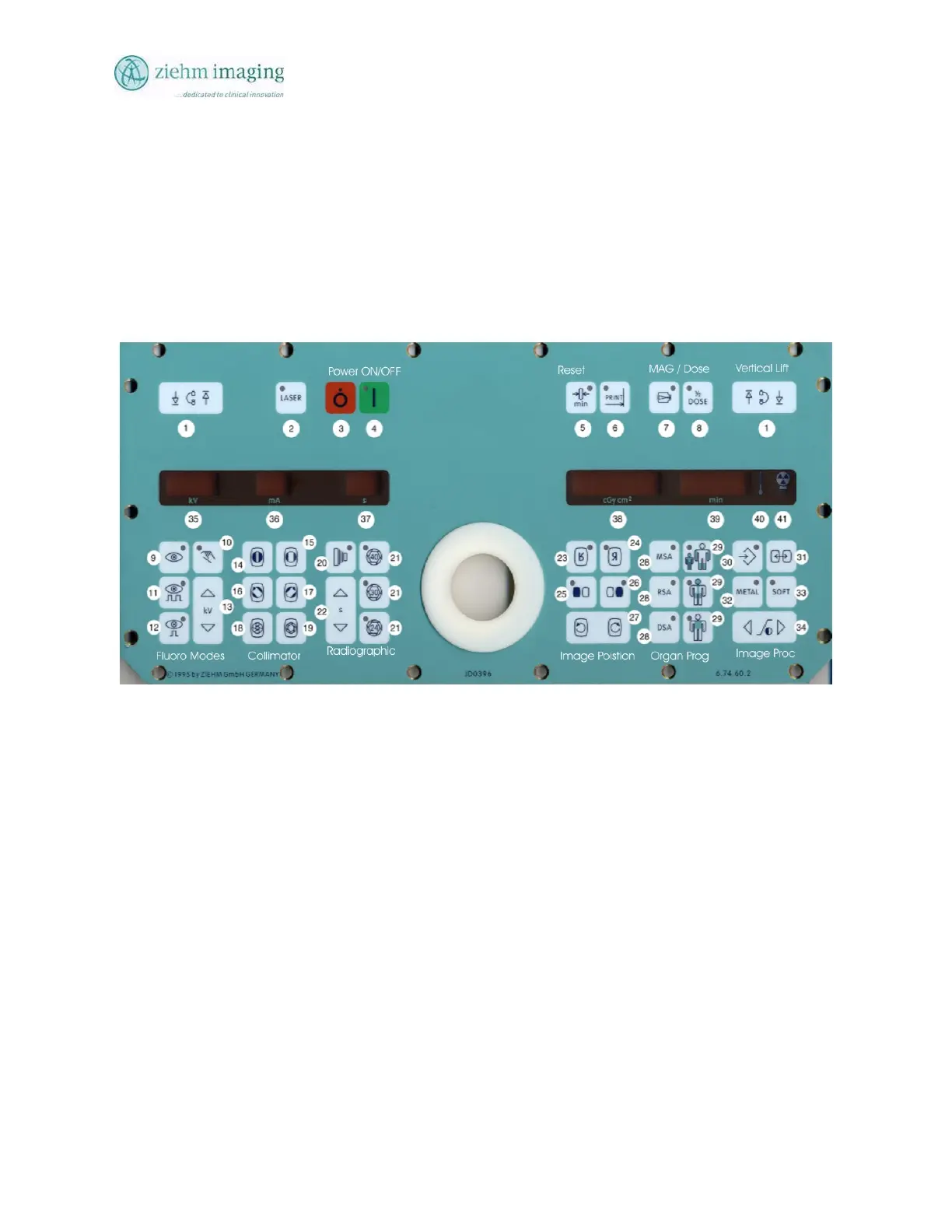

Fig 6.5: Elements Of The Mobile Stand Control Panel
6.7.1 MAIN KEYBOARD ELEMENT GROUPS
• Lower left “Fluoroscopic modes”
• Lower left “Collimator”
• Lower Middle Left “Radiographic”
• Lower Middle Right “Image position”
• Lower Right “Organ /Anatomical Programs”
• Lower Right “Image Processing”
• Upper Right “Vertical Lift”
• Upper Right “Image Mag and ½ Dose”
• Upper Middle Left “Power ON/OFF”
• Upper left “Laser”
• Upper Left “Vertical Lift”
