Ziehm Imaging, Inc. QUANTUM User Manual

Section 11.0
MAN 06–0017H
ZIEHM QUANTUM User’s Manual Page 169 of 220
11.0 ZIEHM QUANTUM OPTIONAL TRANSPORT BRACKETS
The ZIEHM QUANTUM transport brackets were developed as an option to the standard
transport packaging. This option may be preferred if frequent location changes are required and
where floor, truck, or container transport is required. The transport brackets consist of floor and
C-Arm mounted components as well as a hard-shell foam lined container for the display monitor
assembly. The floor-mounted components are a large plate of aluminum, C-Arm and floor
mounting brackets are all secured through the plate and into the floor or pallet. The generator
cradle is also secured to the floor or pallet and securely holds the generator in place during
transport. The C-Arm mounted components consist of brackets to secure the monitor arm and
DeskView control panel in place during transport. The hard-shell foam lined container for the
monitor assembly is secured to the floor with banded strapping and is used to contain the
monitors during transport. If this option is ordered a hole layout diagram may be requested to
allow modification of the floor, truck or transport container.
11.1 FLOOR MOUNTED INSTALLATION

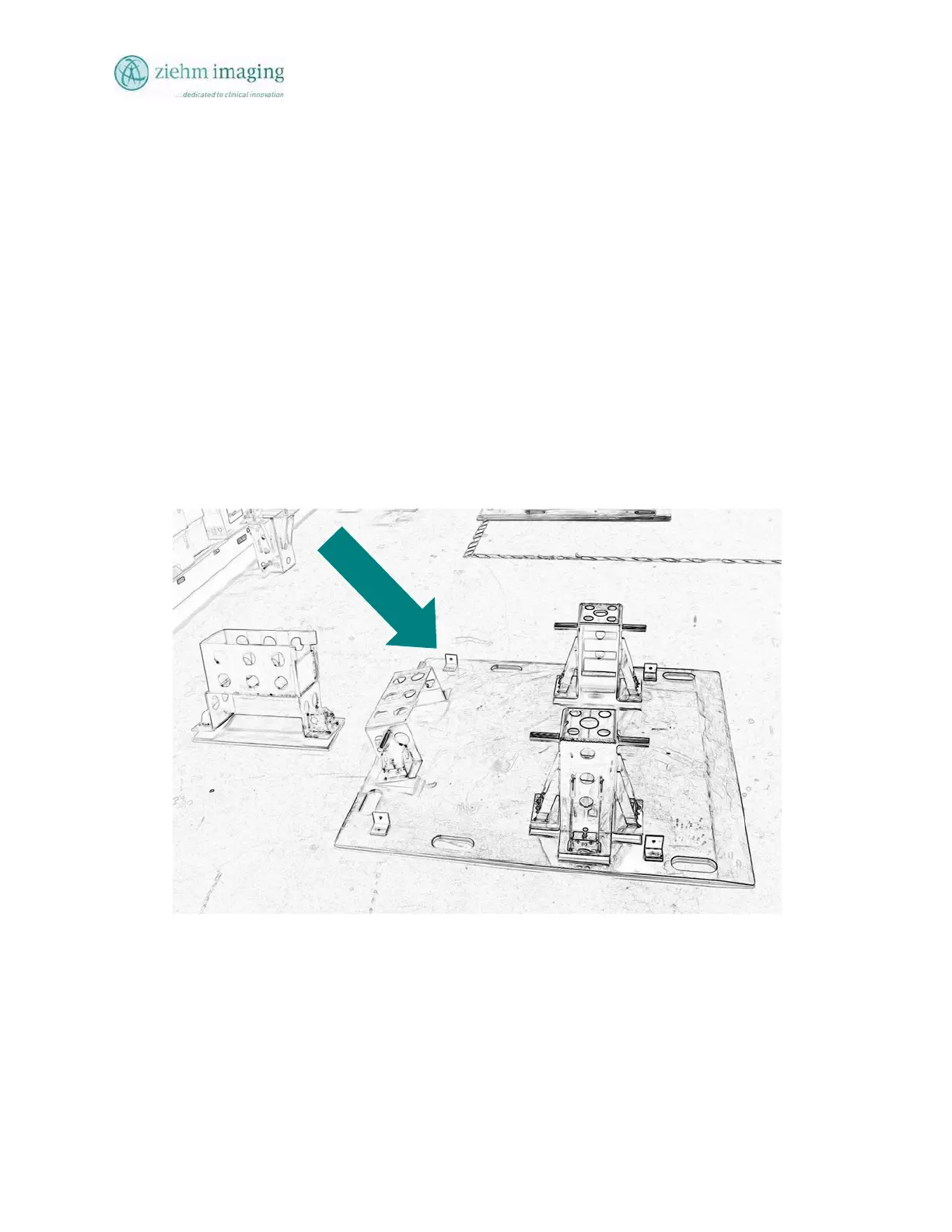

• Ensure that the C-Arm base plate and generator cradle bracket are securely mounted
to the floor. Example Fig 11.1
Figure 11.1
