Section 6.0
MAN 06–0017H ZIEHM QUANTUM User’s Manual Page 59 of 220
6.0 USER TOUCH AND CONSOLE KEYBOARDS
6.1 DESKVIEW
TM
CONTROL PANEL
The DeskView control panel is designed as a touch screen. For system operation, just press the
desired button directly on the screen. Depending on the selected function, different buttons,
display fields and input fields will appear on the screen.
6.2 DESKVIEW CONTROL PANEL
6.2.1 ELEMENTS OF THE CONTROL PANEL
The DeskView control panel is designed as a touch screen. Its operation covers a wide range of
functionality, system operations, image processing, and dose control.
The simple design and ease of use provides the operator with direct press and system response of
desired functionality. Depending on the selected function, different buttons, display fields and
input fields will appear on the screen.
NOTE
The DeskView touch screen offers automatic display of relevant buttons and
removes all but the buttons not relevant or operative for any individual mode, or
functional process.
When radiation is active only those functions that are available during the exposure on time will
be visible and accessible. See figure 6-3 for example of main touch screen with Fluoroscopy
selected and radiation on.
The Buttons will have two states of operation:
• Inactive or off state; Button is light gray and is available for selection
• The active or on state; Button is yellow to indicate the active state, in some cases the text
will change with the toggling of the button through several states.

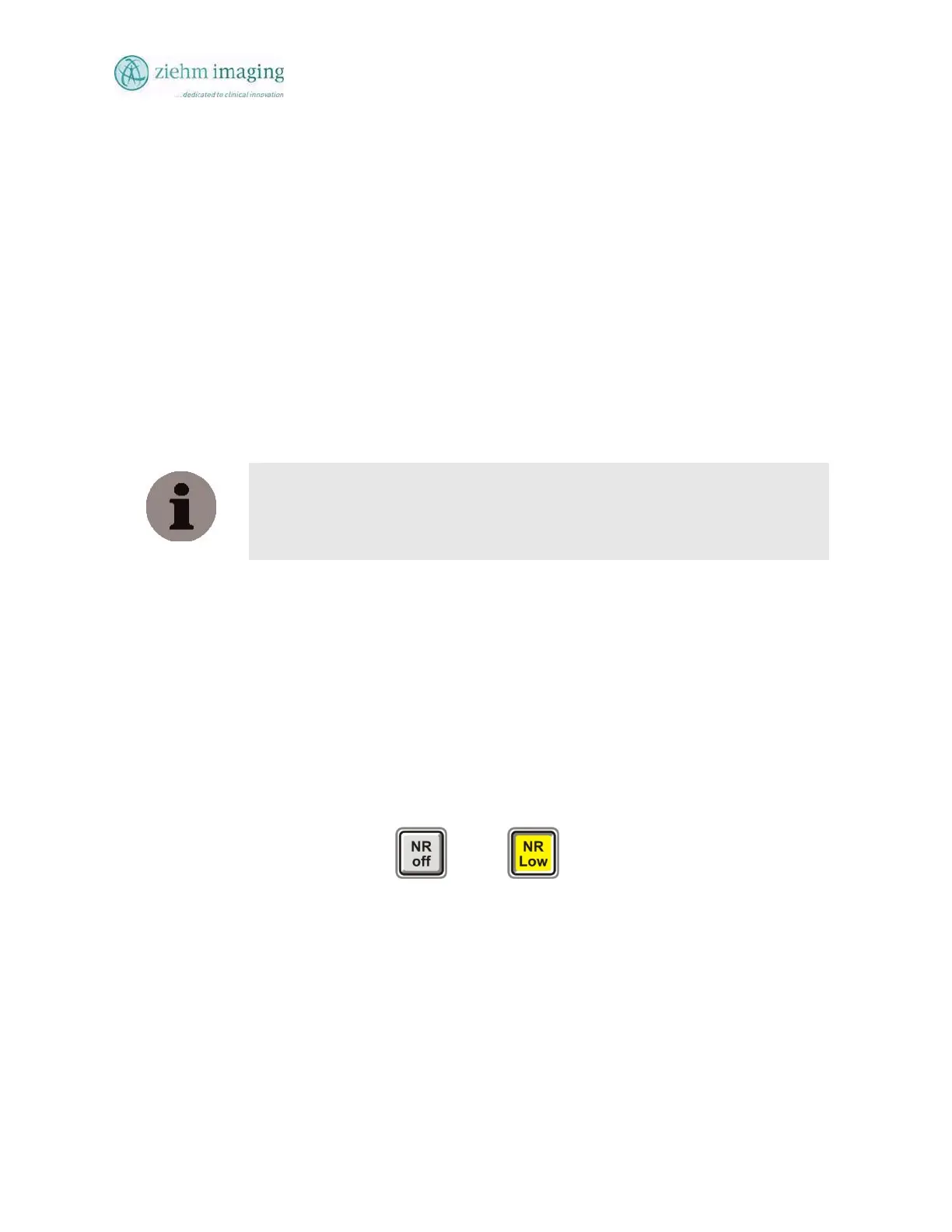

Example; in this case the noise reduction button has four (4) states (Off, Low, Med and High)
Inactive Active
The Main screen elements of operation are shown in the figure 6-1,
