Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 191
Operating Modes Chapter 5
• Operator Station must be enabled in Mismatch Action
(Parameter 233)
• An
operator station must be selected in Operator Station Type
(Paramete
r 224)
Or
• Option Match Warning must be enabled in WarningEnableC
(Paramete
r 192)
• O
perator Station must be disabled in Mismatch Action
(Parameter 233)
• An
operator station must be selected in Operator Station Type
(Paramete
r 224)
6. F
eedback Timeout Trip in TripEnableC (Parameter 186) or Feedback
Time
out Warning in WarningEnableC (Parameter 192) must be enabled.
7. Communication Fault & Idle Override (Parameter 346) must be enabled.
8. Network Fault Override (Parameter 347) must be enabled.
Wiring Diagram
The E300 relay’s Output Relay 0 is wired as a control relay in which the relay is
controlled by the communication network and opens when a trip event occurs.
Figure 96
is a wiring diagram of a non-reversing starter with the contactor
auxiliary wired into Input 0 and Output Relay 0 configured as a control relay.

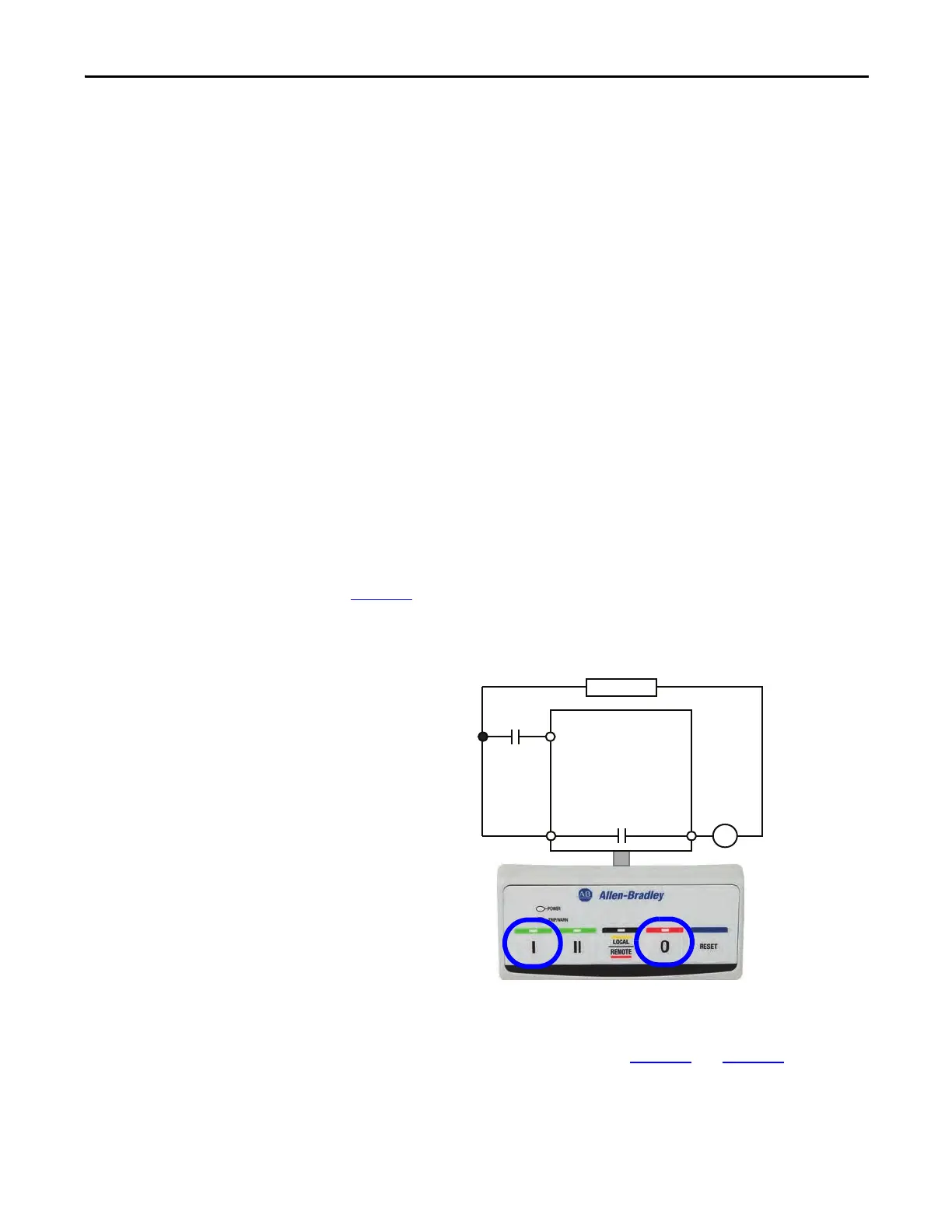

Figure 96 - Non-reversing Starter (Network & Operator Station) with Feedback Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 97 and Figure 98 is
automatically loaded and enabled in the E300 on power-up or when Operating
Mode (Parameter 195) is set to a value of 12.
R03 R04
Relay 0
Run
E300
Control Power
I- Run 0- Stop
Run Aux
IN 0
