Allen-Bradley E300 User Manual

194 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 5 Operating Modes
Input 1 is used to select between Local and Remote control mode. Activate Input
1 to select Remote control mode. De-activate Input 1 to select Local control
mode.
The reset button of the E300 Operator Station is enabled for this operating
mode.
Rules
1. Available for Control Module firmware v5.000 and higher.
2. Output Pt00 Assignment (Parameters 202) must be set to Control Relay.
3. Overload Trip must be enabled in TripEnableI (Parameter 183).
4. Communication Fault & Idle Override (Parameter 346) must be enabled.
5. Network Fault Override (Parameter 347) must be enabled.
Wiring Diagram
The E300 relay’s Output Relay 0 is wired as a control relay in which the relay is
controlled by the communication network and opens when a trip event occurs.
Figure 99
is a wiring diagram of a non-reversing starter with Output Relay 0
configured as a control relay.

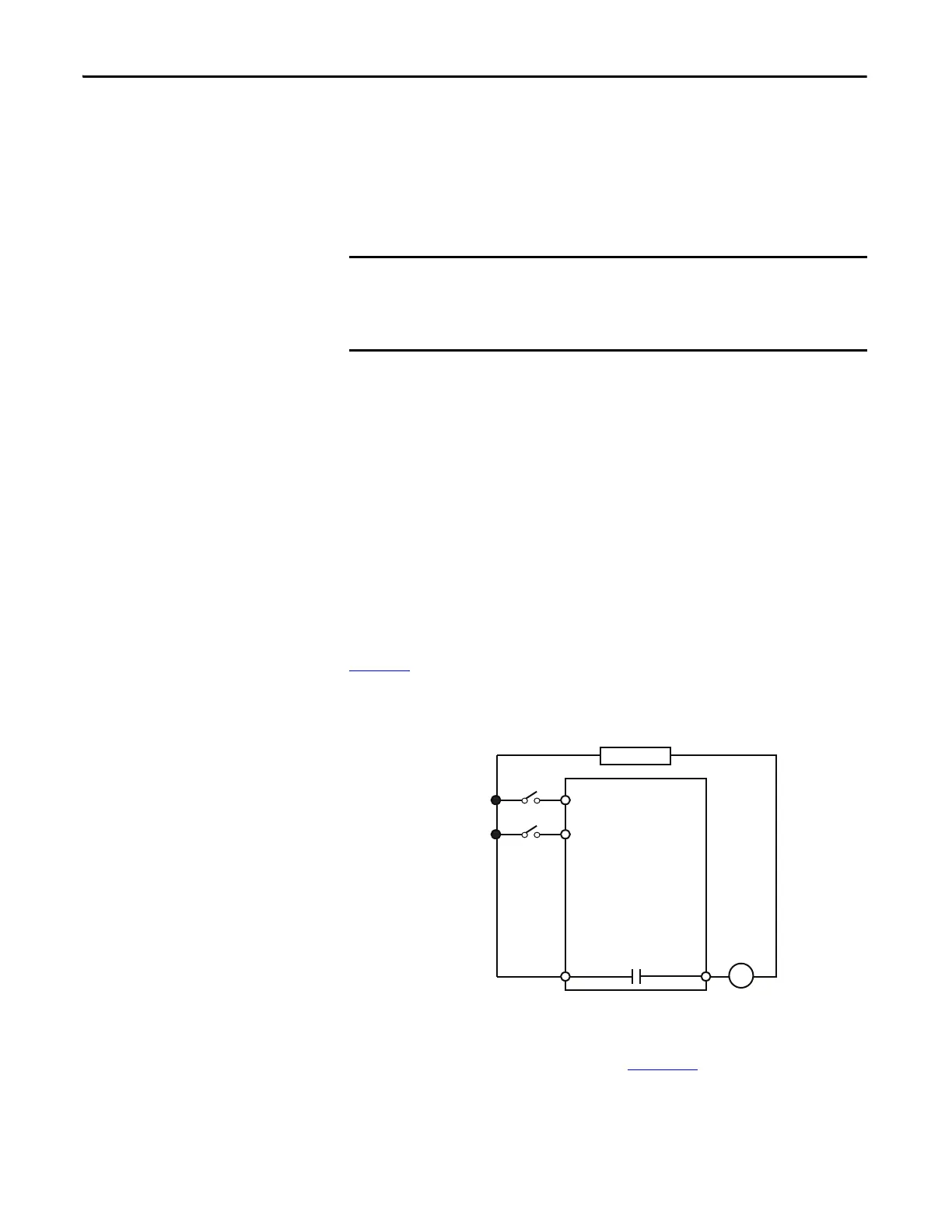

Figure 99 - Non-reversing Starter (Network & Local I/O) – Two-wire Control Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 100 is automatically loaded
and enabled in the E300 on power-up or when Operating Mode (Parameter 195)
is set to a value of 16.
IMPORTANT
The Non-reversing Starter (Network & Operator Station) operating mode uses
the value in network tag LogicDefinedPt00Data to control the starter. When
communication is restored between an automation controller and the E300,
the starter energizes if the value in LogicDefinedPt00Data is set to 1.
R03 R04
Relay 0
Run
E300
IN 1
Control Power
Local Inputs/
Controller
Run/Stop
IN 0
