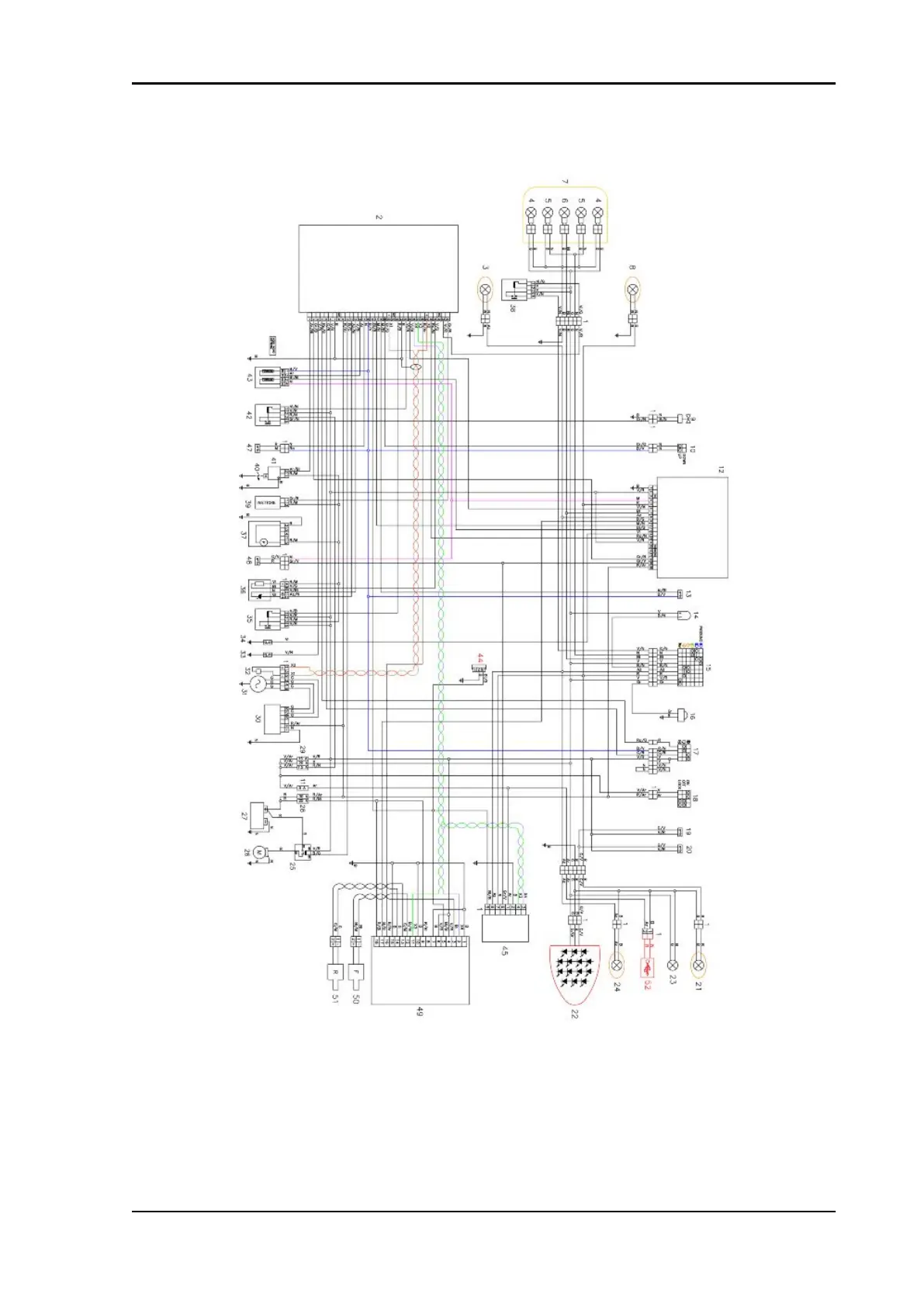

General wiring diagram
Key
1. Multiple connectors
2. MIU G3 control unit
3. Left hand front turn indicator (10W)
4. Front daytime running lights (5W)
RS 125 - Tuono 125 - Euro 4 Electrical system
ELE SYS - 105
