the indicated limits after replacing the bearings,
replace the wheel (2).
Characteristic
Maximum radial (A) eccentricity:
0.6 mm (0.0236 in)
Maximum lateral (B) eccentricity:
0.5 mm (0.0197 in)
CROWN GEAR
•
Check the condition of the teeth of the crown gear (3).
If excessively worn:
•
replace the crown gear.
TO PREVENT NEW COMPONENTS FROM WEARING PREMATURELY, THE REAR SPROCKET,
FRONT SPROCKET AND DRIVE CHAIN MUST ALWAYS BE REPLACED TOGETHER AS A SET.
CAUTION
WHEN REPLACING THE SPROCKET REPLACE THE PRE-IMPREGNATED SCREWS WITH NEW
ONES. BEFORE FITTING THE SCREWS CAREFULLY CLEAN THE THREADED HOLES REMOV-
ING ANY RESIDUES..

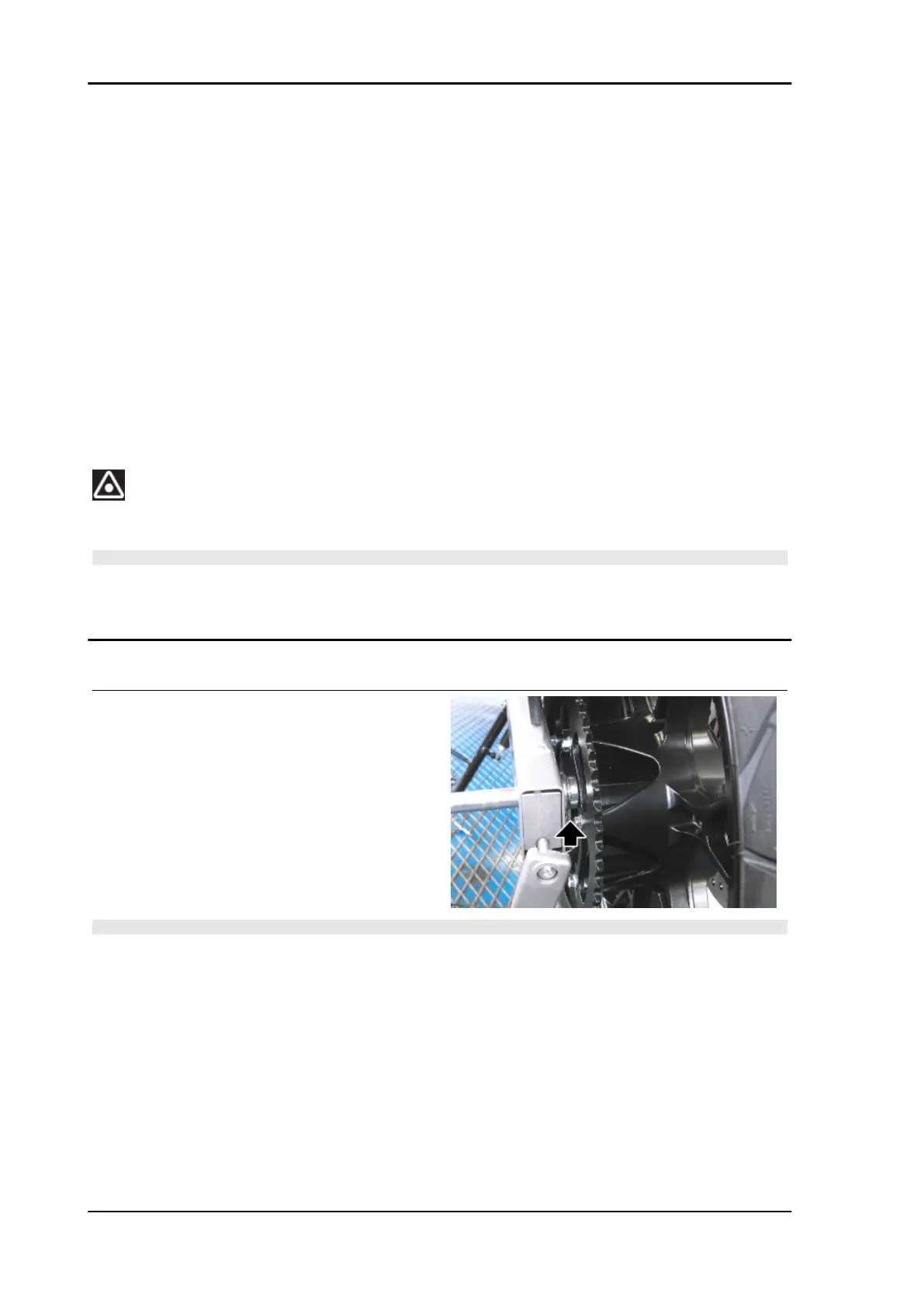

Installing the rear wheel
•
Repeat the removal procedure in re-
verse order, taking care to insert the
spacer correctly on the left hand side,
as indicated in figure.
•
Tighten the nuts, applying the pre-de-
termined torque.
CAUTION
AFTER MOUNTING THE REAR WHEEL, CHECK THAT THE DISTANCE BETWEEN THE ABS
SENSOR AND THE PHONIC WHEEL IS BETWEEN 0.3 mm (0.012 in) AND 2 mm (0.079 in).
•
Ensure the spacer bushing mounted on the rear brake calliper plate is mounted in the correct
direction.
Suspensions RS 125 - Tuono 125 - Euro 4
SUSP - 246
