Stand

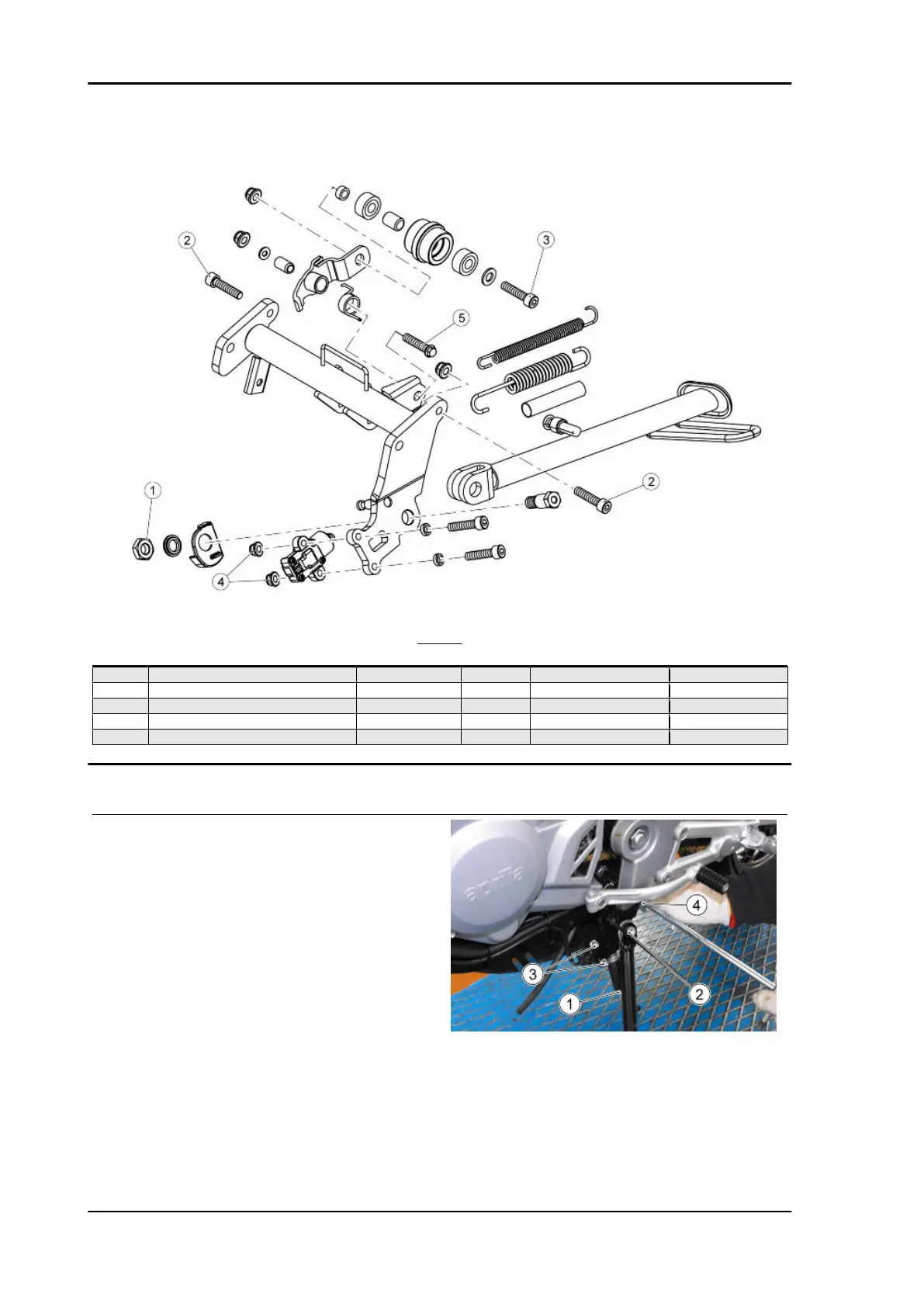

STAND
pos. Description Type Quantity Torque Notes
1 Low nut M10x1.25 1 10 Nm (7.38 lb ft) Loctite 243
2 Stand mounting fixing screw M8x30 2 25 Nm (18.44 lb ft) Loctite 243
3 Chain roller fixing screw M8x45 1 25 Nm (18.44 lb ft) -
4 Side stand switch fastening screws M5x25 2 3 Nm (2.21 lb ft) -
5 Stand mounting fixing screw M6x30 1 10 Nm (7.38 lb ft) -
Side stand
•
Rest the vehicle on the optional rear
stand.
Stand rod removal
•
With closed stand, release the spring
(1)
•
Unscrew and remove the nut (2).
Remove stand together with the plate
•
Unscrew and remove the two stand
switch fixing nuts (3).
•
Unscrew and remove the internal nut
and the pin (4) by collecting the wash-
er.
Chassis RS 125 - Tuono 125 - Euro 4
CHAS - 268
