ABS
ABS SYSTEM

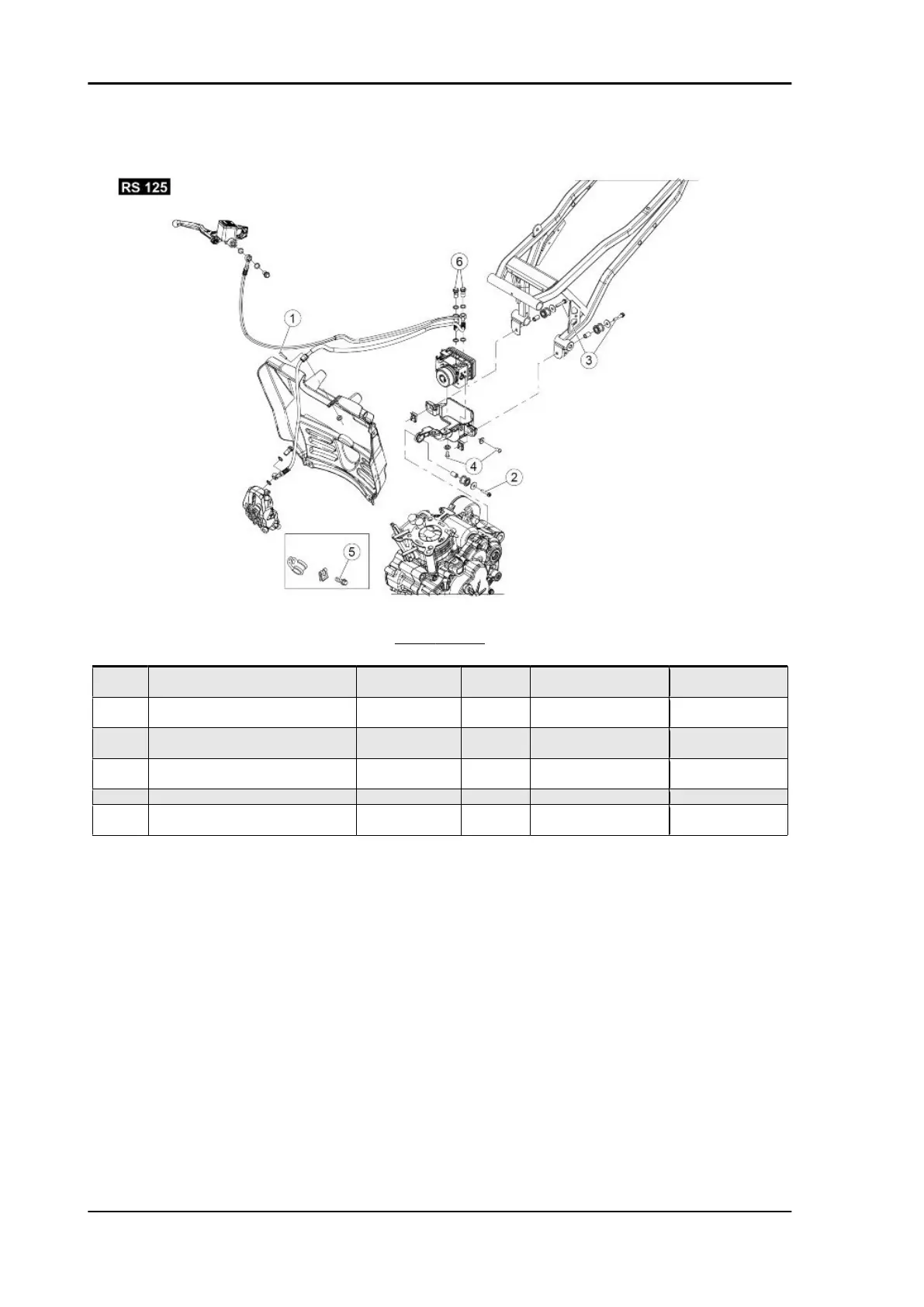

pos. Description Type Quantity Torque Notes
1 Screw fastening brake pipe to radia-
tor surround
M6 1 10 Nm (7.38 lb ft) -
2 Flanged hex head screw fastening
modulator mounting case
M5x25 1 3.5 Nm (2.58 lb ft) -
3 Flanged hex head screw fastening
modulator mounting case
M6x30 2 10 Nm (7.38 lb ft) -
4 Hex socket button head screw fas-
tening modulator to mounting case
M6 2 10 Nm (7.38 lb ft) -
5 Screw fastening brake pipe clamp M5x16 1 5 Nm (3.69 lb ft) -
6 Special brake pipe fastening screw - 2 23-26 Nm (16.96-19.18
lb ft)
-
Braking system RS 125 - Tuono 125 - Euro 4
BRAK SYS - 276
