STEERING
pos. Description Type Quantity Torque Notes
1 Screw fastening top steering yoke to
fork
M8 2 25 Nm (18.44 lb ft) -
2 Handlebar fastener nut M20 1 48 Nm (35.40 lb ft) Loct. 243
3 Handlebar U-bolt fastener screws M8 4 20 Nm (14.75 lb ft) -
4 Ignition switch assembly cover fas-
tening screws
M5 2 5 Nm (3.69 lb ft) -

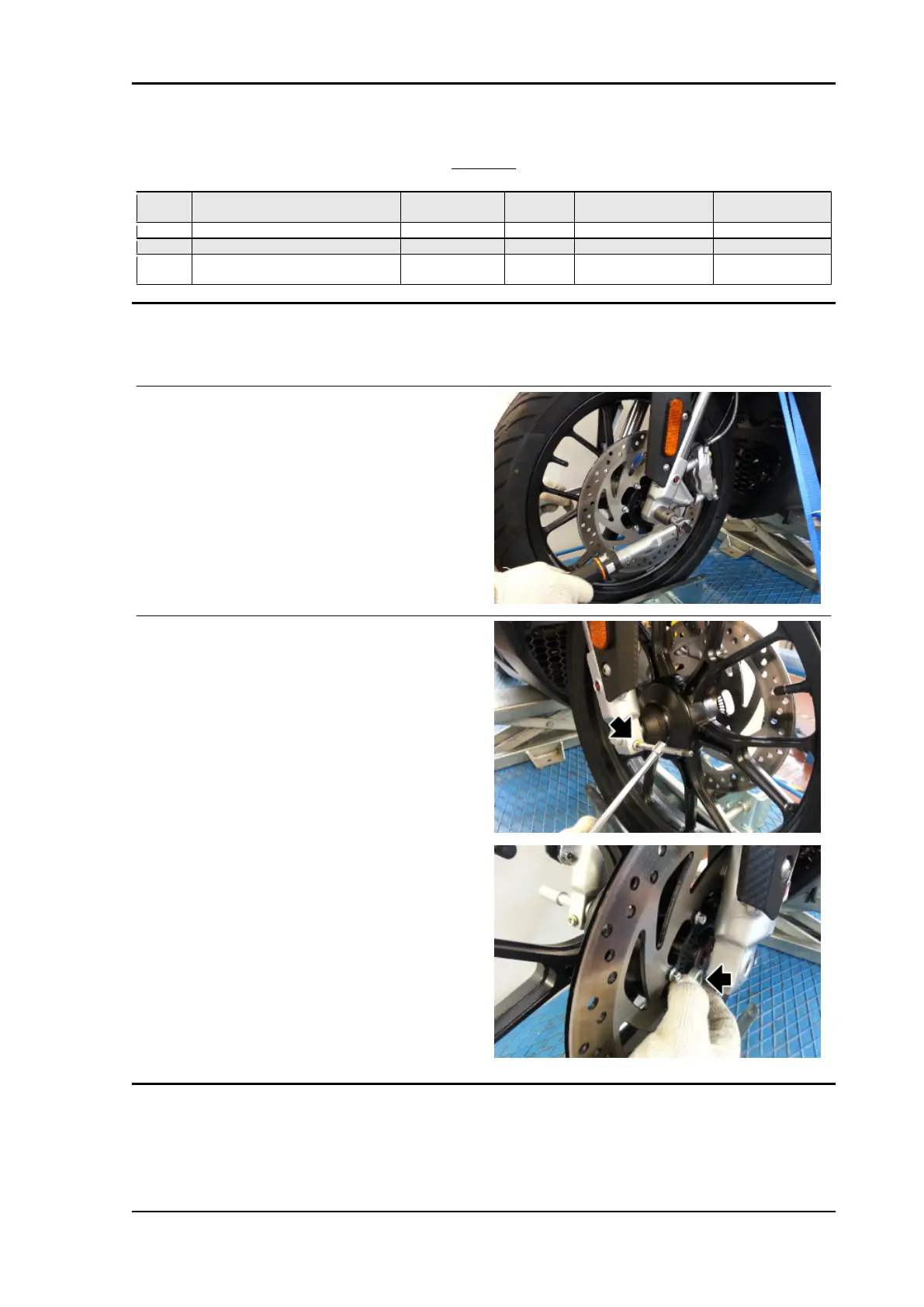

Removing the front wheel
•
Support the front of the vehicle, fastening a suitable strap to the handlebar and to a hoist.
•
Undo and remove the fastener nut and
retrieve the washer.
•
Loosen the screw retaining the calliper
mounting bracket.
•
Supporting the weight of the wheel,
partially pull out the axle from the right
hand side of the motorcycle and re-
trieve the spacer washer on the left
hand side of the motorcycle.
RS 125 - Tuono 125 - Euro 4 Suspensions
SUSP - 233
