Lower the hoist arm.
CAUTION
BEFORE RELEASING THE BELTS MAKE SURE THAT THE OPTIONAL REAR STAND IS COR-
RECTLY POSITIONED.
•
Correctly install the lower shield, the mudguard, the front wheel and the brake callipers.
•
Release the belts from the chassis.
•
Check that the forks are working correctly by applying the front brake and pushing repeatedly
on the forks.
•
Operating must be progressive and there must not be any traces of oil on the stanchions.
CAUTION
BEFORE USING THE VEHICLE, CHECK THAT IT IS CORRECTLY SET.
Rear
REAR WHEEL

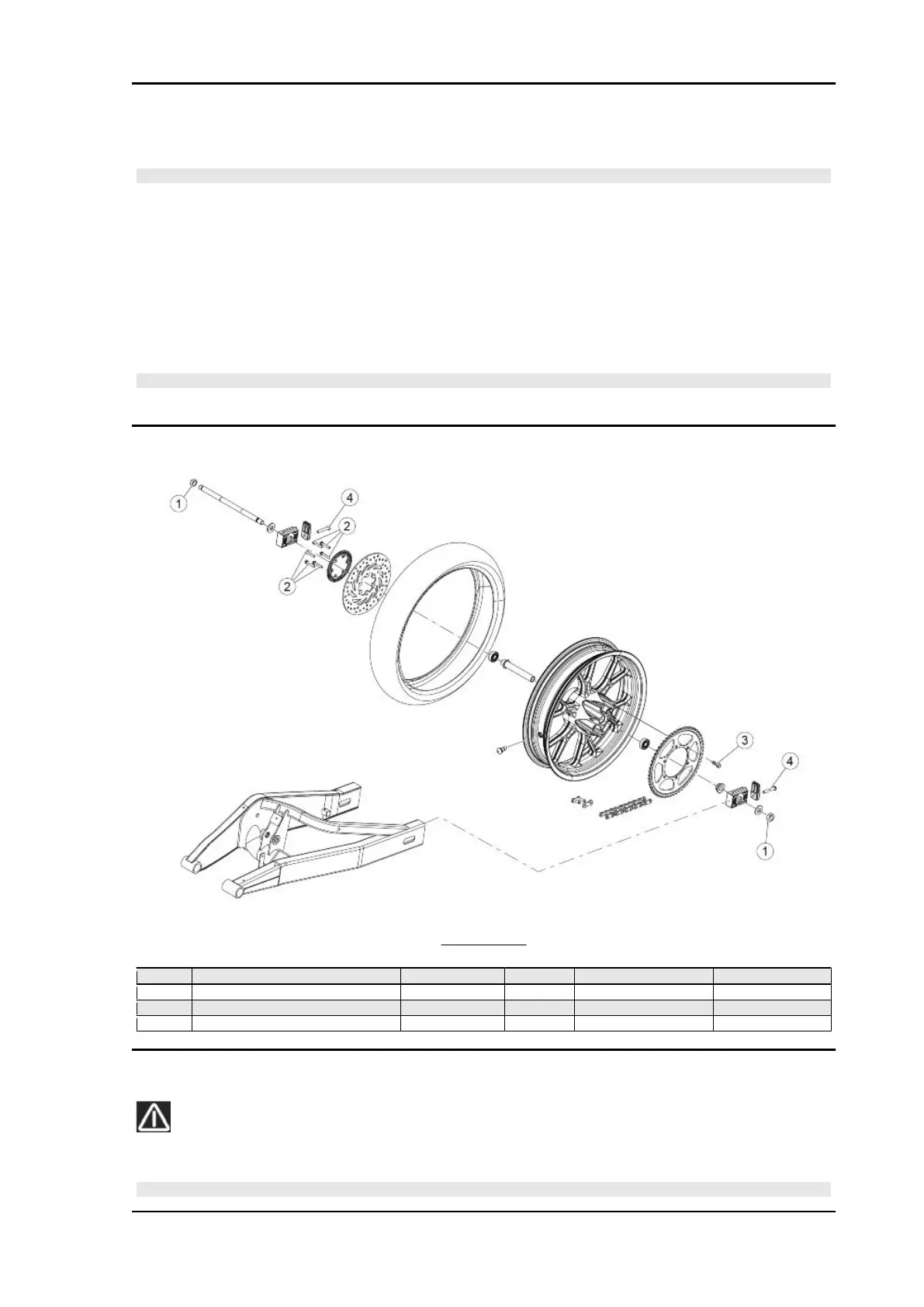

pos. Description Type Quantity Torque Notes
1 Rear wheel axle fastener nut M14 2 78 Nm (57.53 lb ft) -
2 Rear disc fastening screw M6x20 6 12 Nm (8.85 lb ft) Pre-impregnated
3 Rear sprocket fastener screws M8x25 6 25 Nm (18.44 lb ft) Pre-impregnated
4 Chain tensioner fastener screw M8 2 12 Nm (8.85 lb ft) -
Removing the rear wheel
BEFORE CARRYING OUT THE FOLLOWING OPERATIONS, LEAVE THE ENGINE AND MUFFLER
TO COOL TO AMBIENT TEMPERATURE TO PREVENT THE RISK OF BURNS.
CAUTION
RS 125 - Tuono 125 - Euro 4 Suspensions
SUSP - 243
