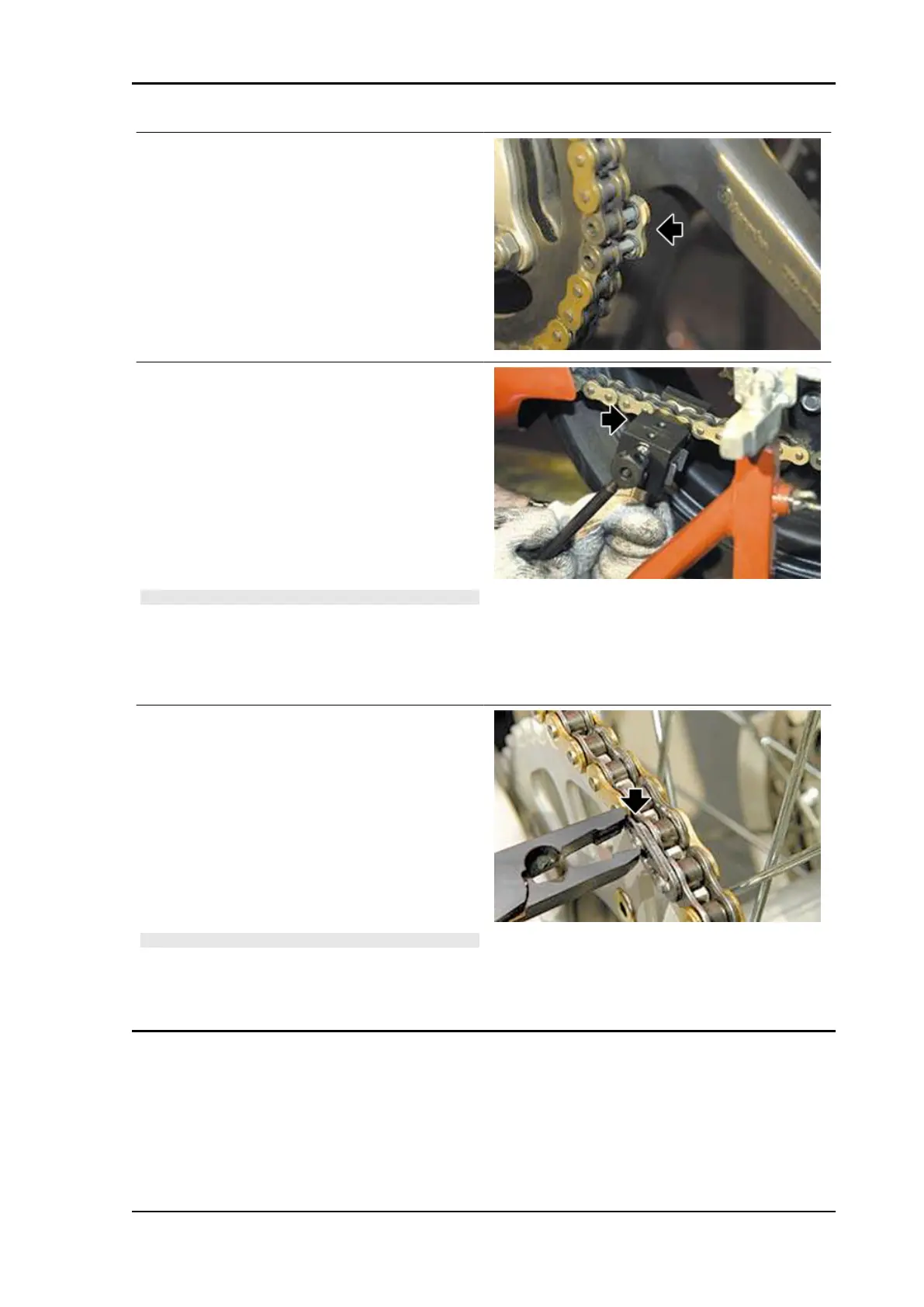

Insert the new fork from the rear
•
Insert the connecting plate at the point
of the dowels
•
Place the tool on the chain, inserting
the centring dowel between the chain
rollers
•
Tighten the slider of the tool until it rests
against the outer plate of the chain
•
Using a wrench tighten until the top of
the fork pins are against the holes of
the mobile slider
CAUTION
DO NOT FORCE. THE LINK PLATE IS THUS FITTED WITH
THE CORRECT PROTRUSION OF THE PINS.
Specific tooling
805181B Tool for fitting chain link
•
Gradually unscrew the tool until the
chain is free
•
Place the safety spring on the pins
•
Using a clamp force the spring so that
it is perfectly housed in the channels of
the pins
•
Check that the link has been fitted cor-
rectly
CAUTION
THE POINTS OF THE SPRING SHOULD FACE THE OPPO-
SITE DIRECTION TO THE ROTATION DIRECTION OF THE
CHAIN. BE CAREFUL NOT TO BEND OR DAMAGE THE
SPRING WHEN FITTING IT.
RS 125 - Tuono 125 - Euro 4 Chassis
CHAS - 257
