Specific operations for the vehicle
(RS 125)

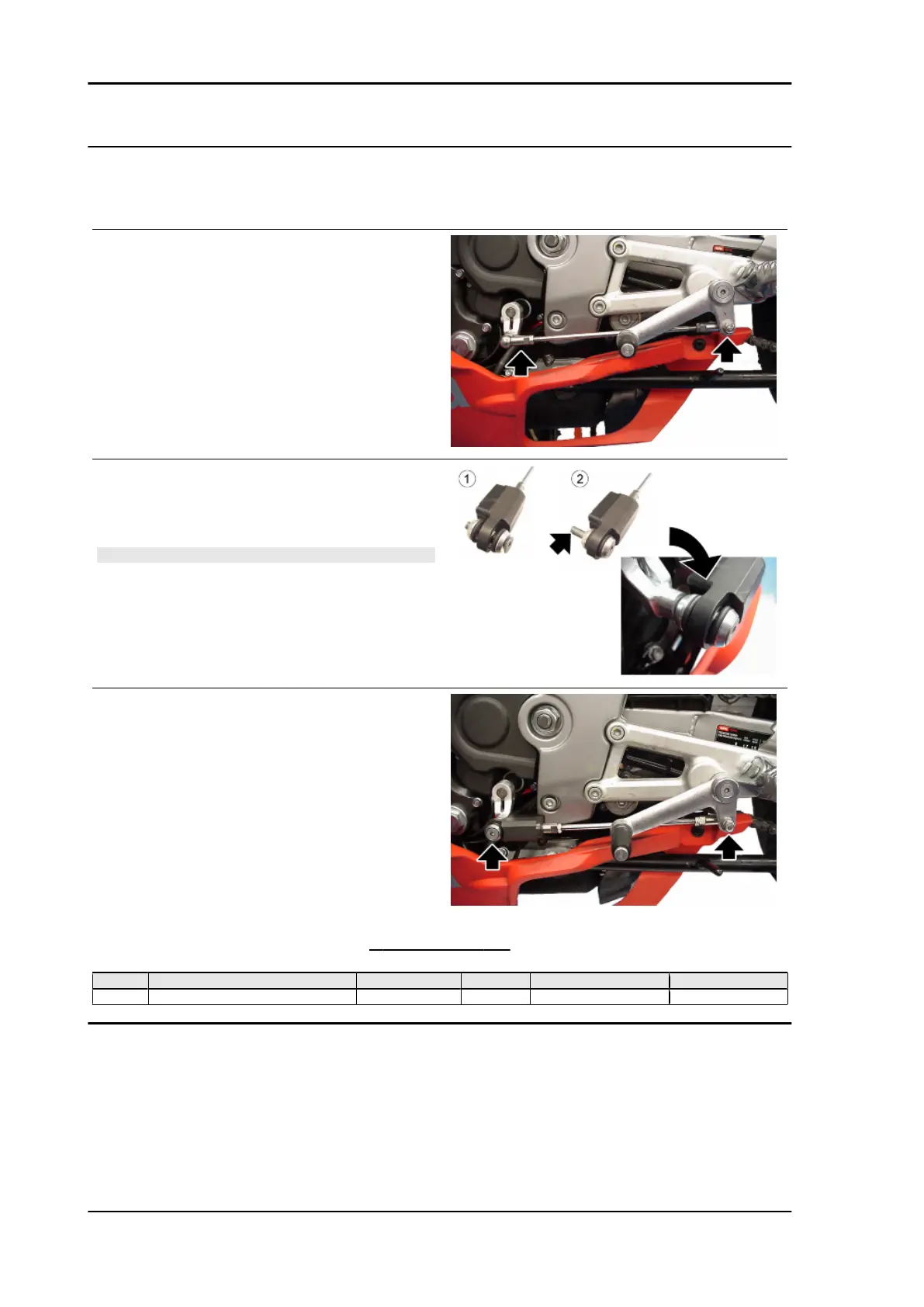

To fit the Quick Shift, follow the fitting instructions.
•
Remove the gear tie-rod by unscrew-
ing and removing the two fixing screws.
•
Place the screw (1) with its compo-
nents in the spherical joint of the Quick
Shift sensor.
WARNING
BEFORE POSITIONING AND TIGHTENING THE QUICK
SHIFT SENSOR, PUT SOME LOCTITE 243 ON THE FIXING
SCREW OF THE SPHERICAL JOINT.
•
Install the gear tie-rod with the integra-
ted Quick Shift sensor tightening the
two screws to the specified torque.
QUICK SHIFT TIE-ROD
Pos. Description Type Quantity Torque Note
1 Gearbox lever tie-rod fixing nut M6 1 10 Nm (7.38 lb ft) -
2 Screw fixing tie-rod to shift shaft M6 1 10 Nm (7.38 lb ft) Loctite 243
•
Pass the connecting cable as shown in figure.
Pre-delivery RS 125 - Tuono 125 - Euro 4
PRE DE - 374
