Swinging arm

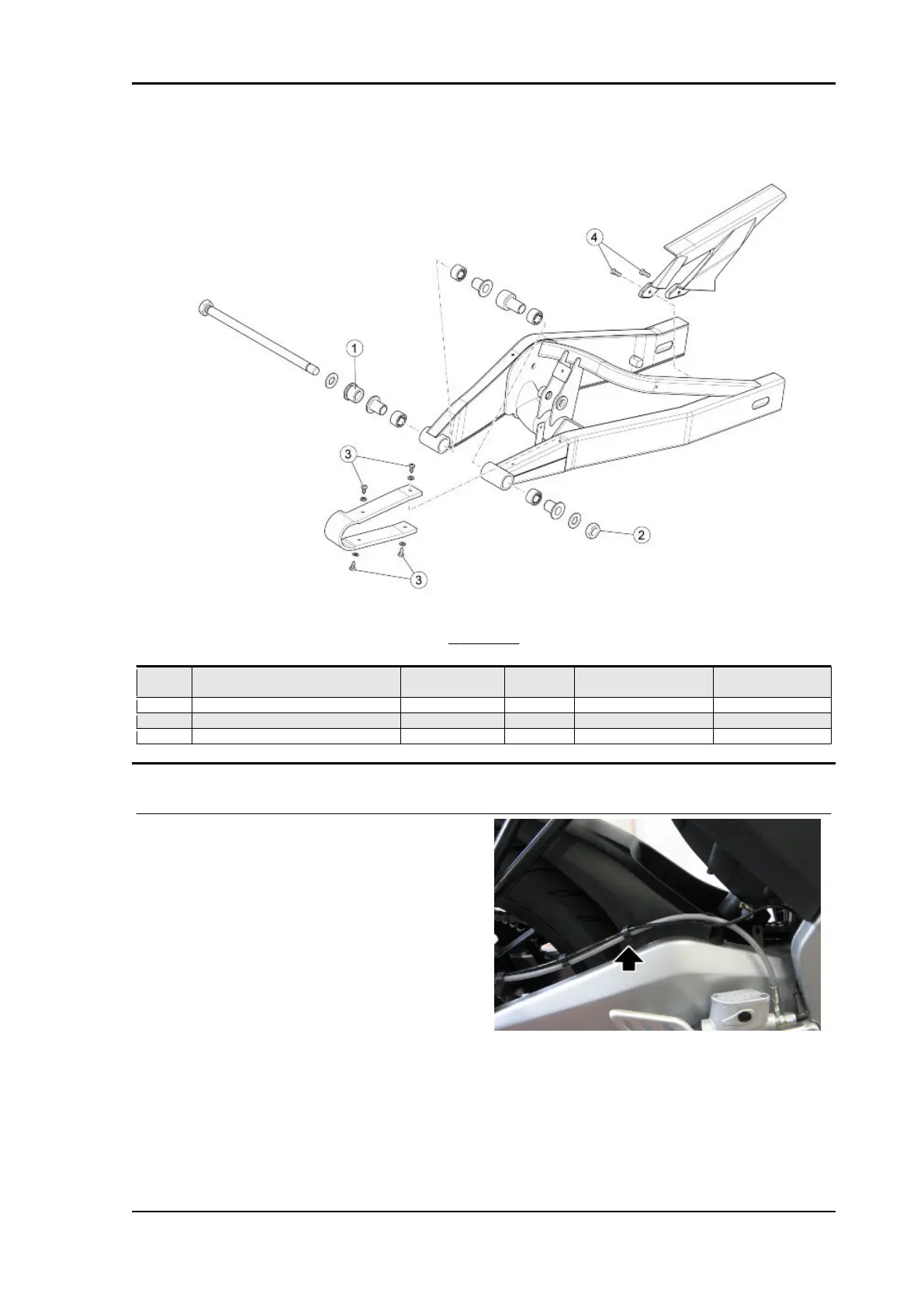

SWINGARM
pos. Description Type Quantity Torque Notes
1 Nut adjusting swingarm alignment
relative to frame
M25x1.5 1 15 Nm (11.06 lb ft) -
2 Swingarm pin nut M14 1 78 Nm (57.53 lb ft) -
3 Chain guide fastener screw Self tapping 4 1 Nm (0.74 lb ft) -
4 Chain guard fastener screw Self tapping 2 2 Nm (1.48 lb ft) -
Removing
•
Place the vehicle on the front stand.
•
Support the rear of the vehicle with
straps and a hoist.
•
Remove the rear brake calliper com-
plete with speed sensor and remove
the tube connected to the sensor ca-
ble.
•
Remove the wheel and the rear shock
absorbers.
RS 125 - Tuono 125 - Euro 4 Chassis
CHAS - 251
