Brother GT-3 Series Service Manual

6. Replacing Parts
6-1-6. Platen Motor

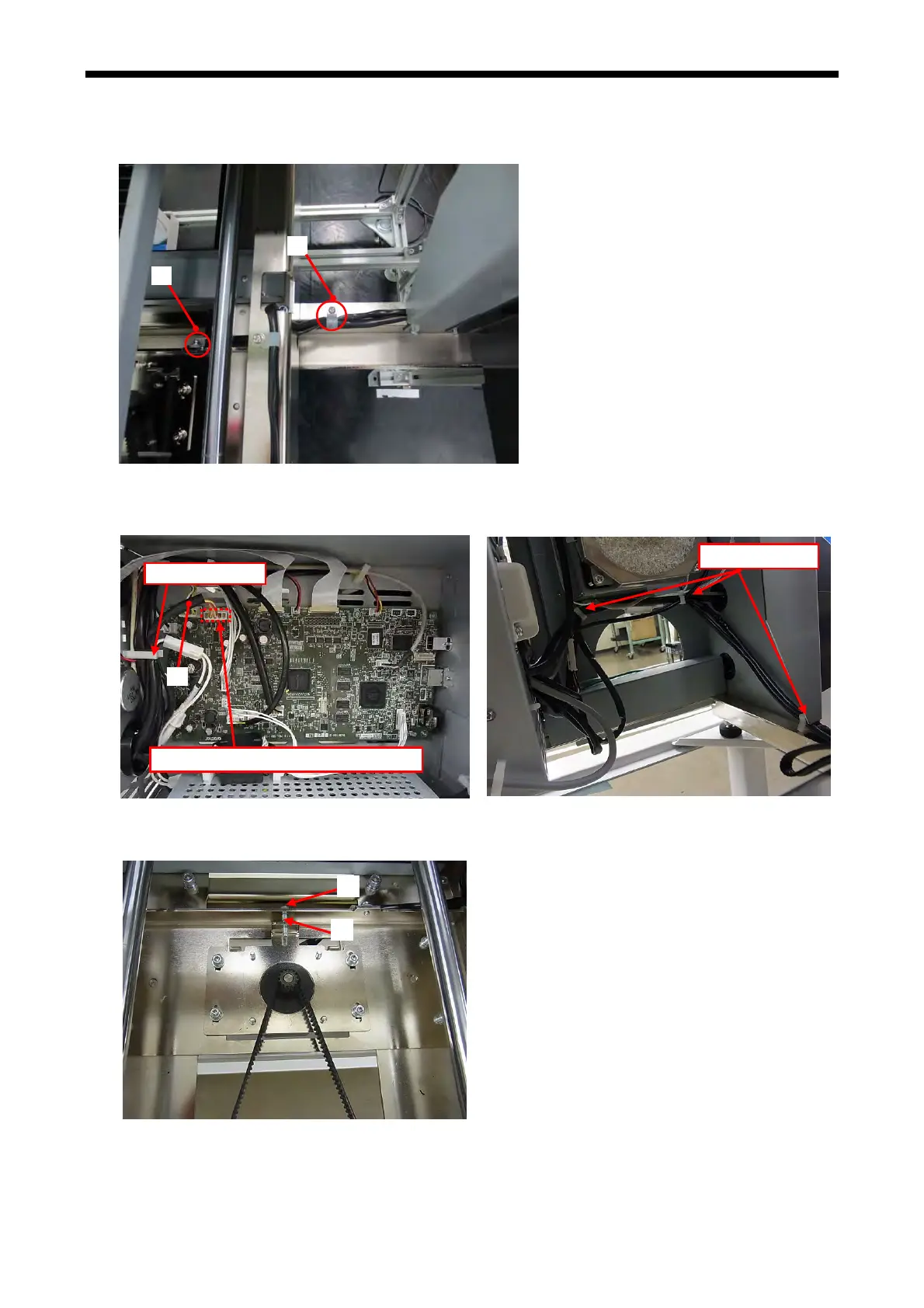

Disassemble
1. Remove the one Screw, one Cord Holder 6N (2), and remove the one Screw and the Cord Holder 5N (3).
2
3
2.
Disco
nnect the Harness (4) and remove it from the clamps below. Disconnect the Platen Motor
Connector (CN4).
(4)
Connector for Platen Motor (CN4)
Clam
p
Clamps
3. Remove the
Nut 2 M4 (5) and the Bolt Socket (6) for adjusting the tension of the Belt.
(6)
(5)
GT-3 Series
135
