Brother GT-3 Series Service Manual

6. Replacing Parts

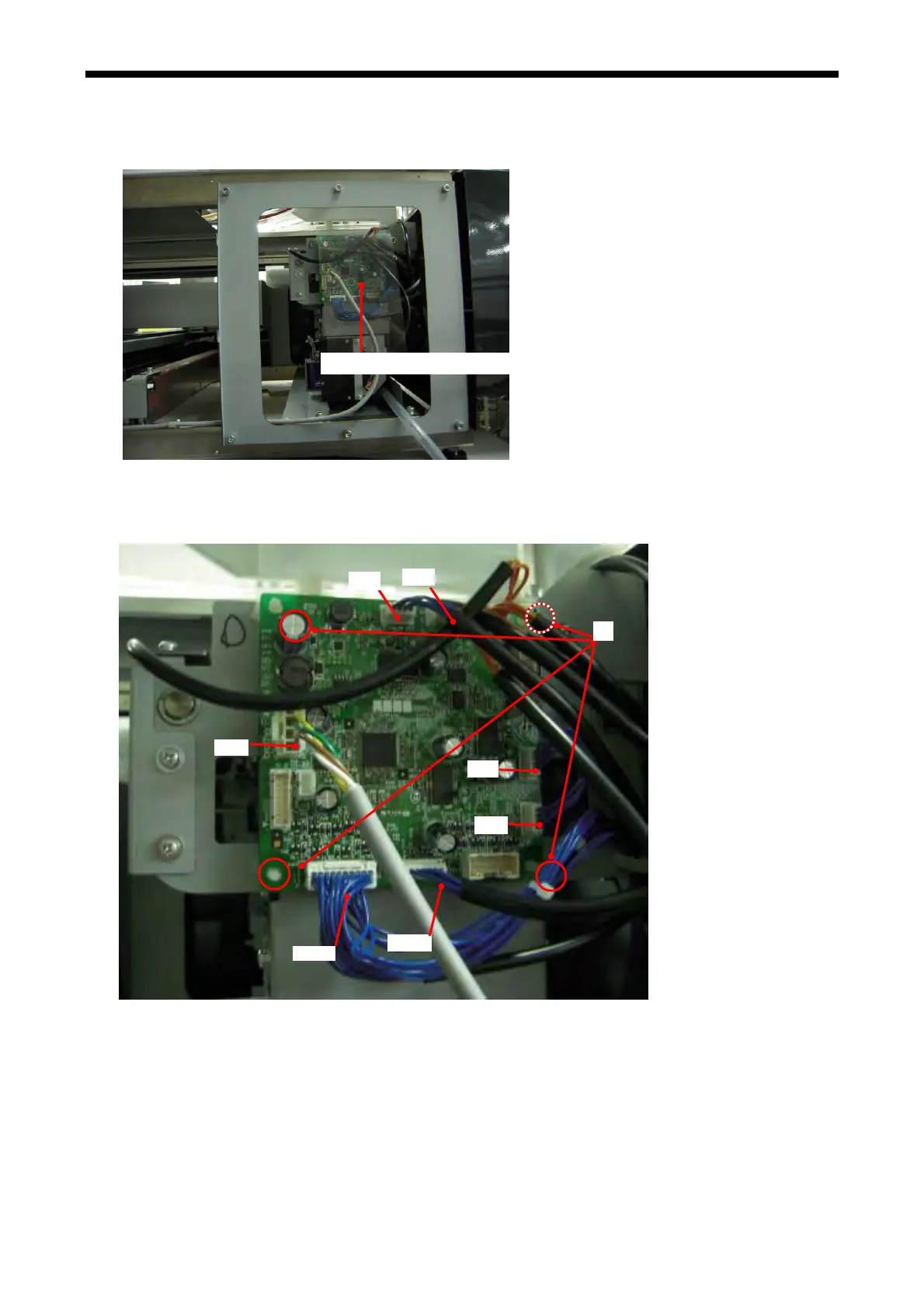

6-2-17. Maintenance PCB Assy
Disassembling
1. Disconnect the AC Cord and remove the Cover PB and Cover DB. (Refer to “6-2-12. Control Box Assy”.)
Maintenance PCB Assy
2. Remove the
seven connectors on the Maintenance PCB.
Remove the PCB from the four Supports, 6NS (plastic spacer).
CN5
CN7
CN12
CN2
CN11
CN9
CN1
(1)
3.
Follow the
reverse steps in reassembling.
GT-3 Series
336
