6. Replacing Parts
6-1-20. Suction Pump Assy
Execute the GT-3 Service Tool to adjust the parts after replacing the Tube Pump.
Required Tools
・Nippers
・Phillips screwdriver
1. Turn OFF the printer.
2. Remove the Cover DB and the Cover PB in the back, and the Cover DL and the Cover PF in the front.
(Refer to “6-1-2. Assembling/Disassembling of the Covers”.)

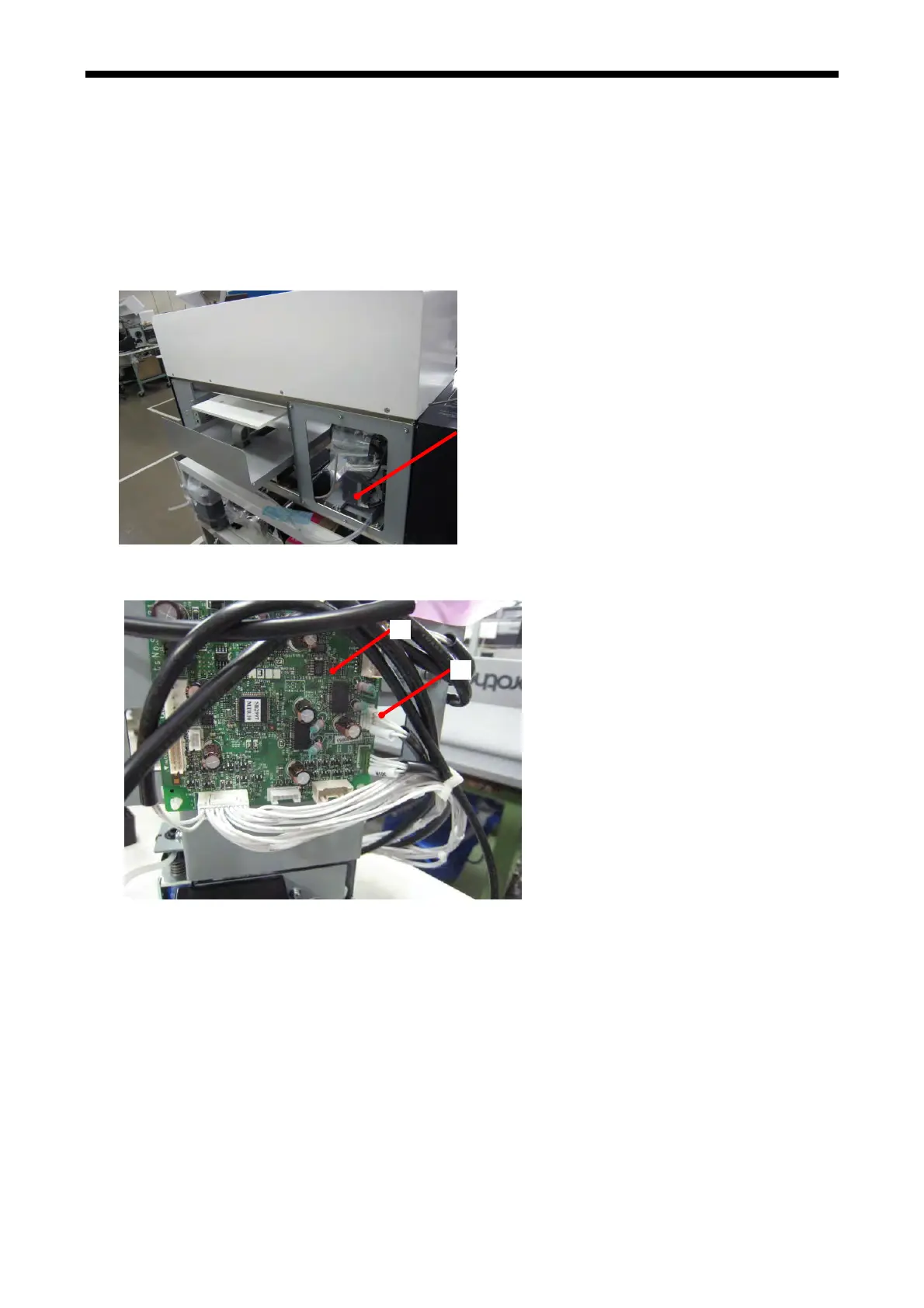

Suction Pump Assy
3.
Remove the
Maintenance Unit. Refer to “6-1-16. Assembling / Disassembling of the Maintenance Unit”.
4. Disconnect the Connector of the Harness:MNT Motor P (1) from the Maintenance PCB (2).
(2)
(1)
GT-3 Series
183
