Brother GT-3 Series Service Manual

6. Replacing Parts
6-1-8. Platen Origin Sensor

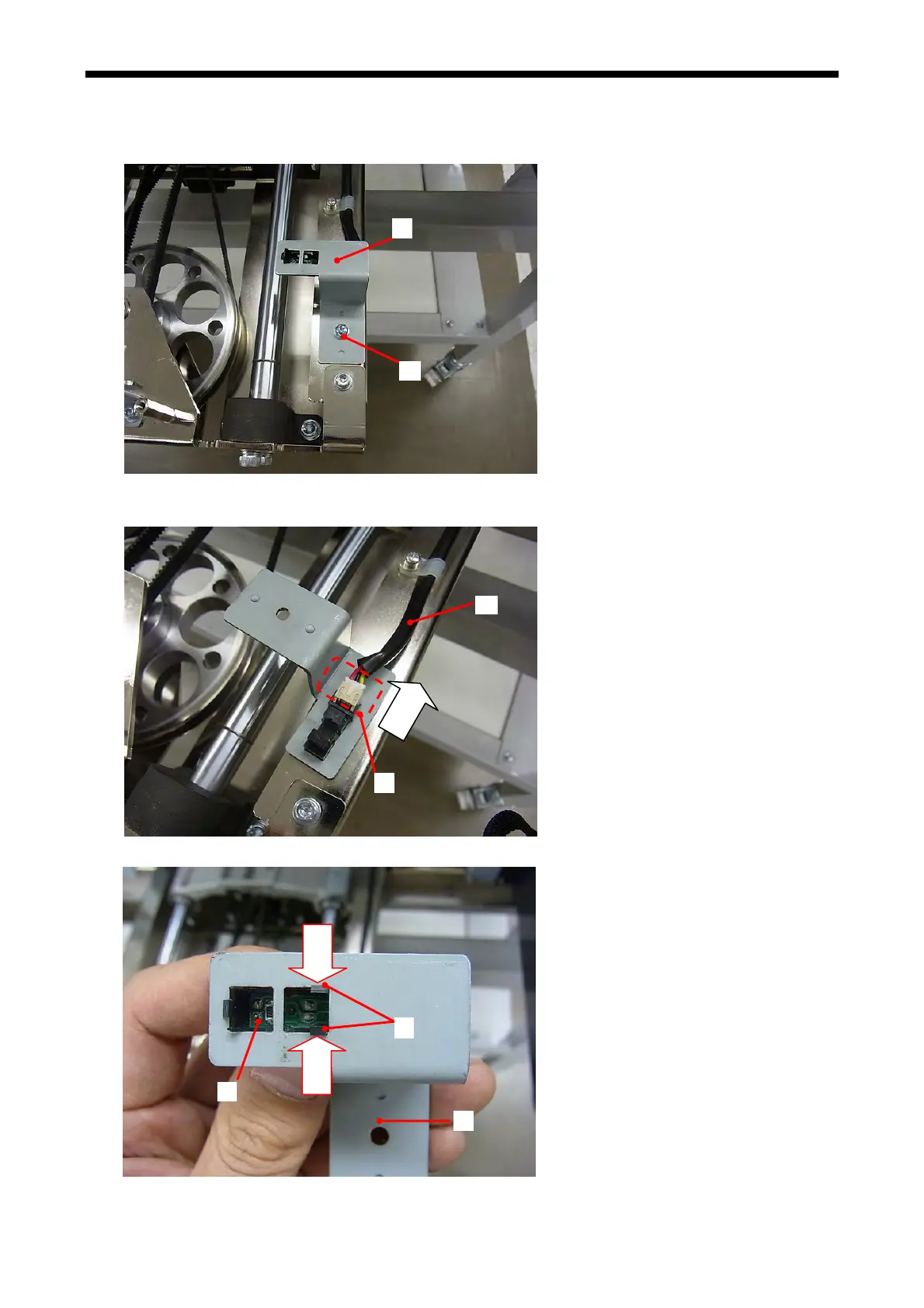

Disassembling
1. Remove the Screw (1) and remove the Sensor Holder (2).
(2)
(1)
2.
Disco
nnect the Harness: Platen Origin (3) from the connector (4).
(3)
(4)
3.
Remove the
Origin Sensor (6) from the Sensor Holder (7) by pushing the claws (5).
(5)
(6)
(7)
GT-3 Series
142
