Brother GT-3 Series Service Manual

6. Replacing Parts

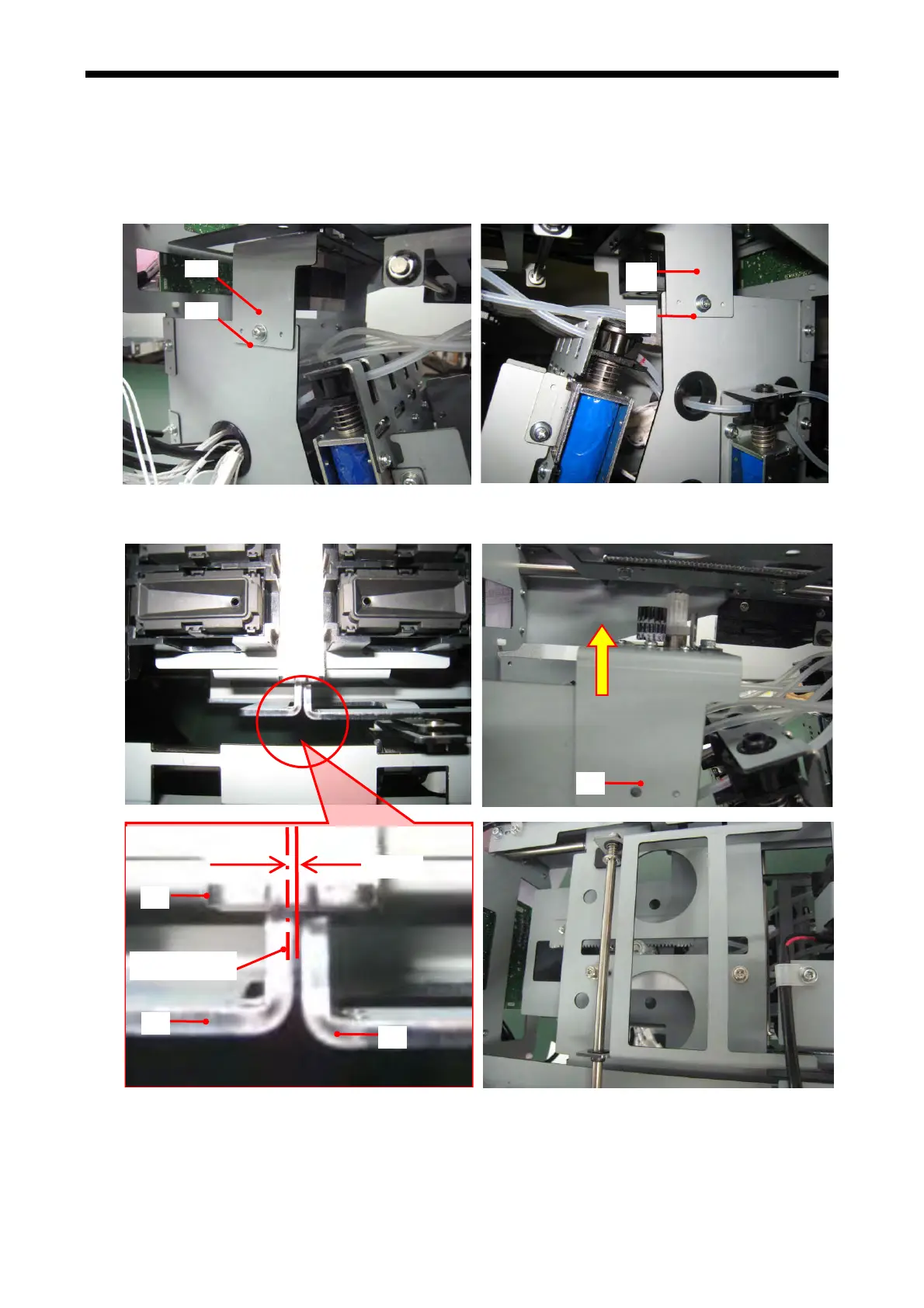

6-1-28. Adjusting the position of Wiper Blades
Required Tool
・ Phillips screwdriver
Disassembling
1. Remove the Maintenance Unit. (Refer to “6-1-16. Assembling / Disassembling of the Maintenance Unit”.)
2. Remove the screws (2) that fix the W Motor Base Lower (1).
(2)
(1)
(
2
)
(
1
)
3.
Fix the W Motor Bas
e Unit Assy (1) by lifting at the position where the hitting position of W Drive Base B
Assy (3) and the W Drive Base F Assy (4) should be a little backward from the center (projection as a
guide) of the CL Guide Lower (approx. 0.3 mm).
0.3 mm
(4)
(3)
Center line
(1)
(5)
4.
Tighten the scre
ws (2) that fix the W Motor Base Lower (1), with tightening torque 1.5 N·m.
5. Mount the Maintenance Unit. (Refer to “6-1-16. Assembling / Disassembling of the Maintenance Unit”.)
GT-3 Series
203
