6. Replacing Parts
6-1-14. Encoder Strip
0187
Disassembling
1.
Remove the Cover UF and the Cover UB. (Refer to “6-1-2. Assembling/Disassembling of the Covers”.)

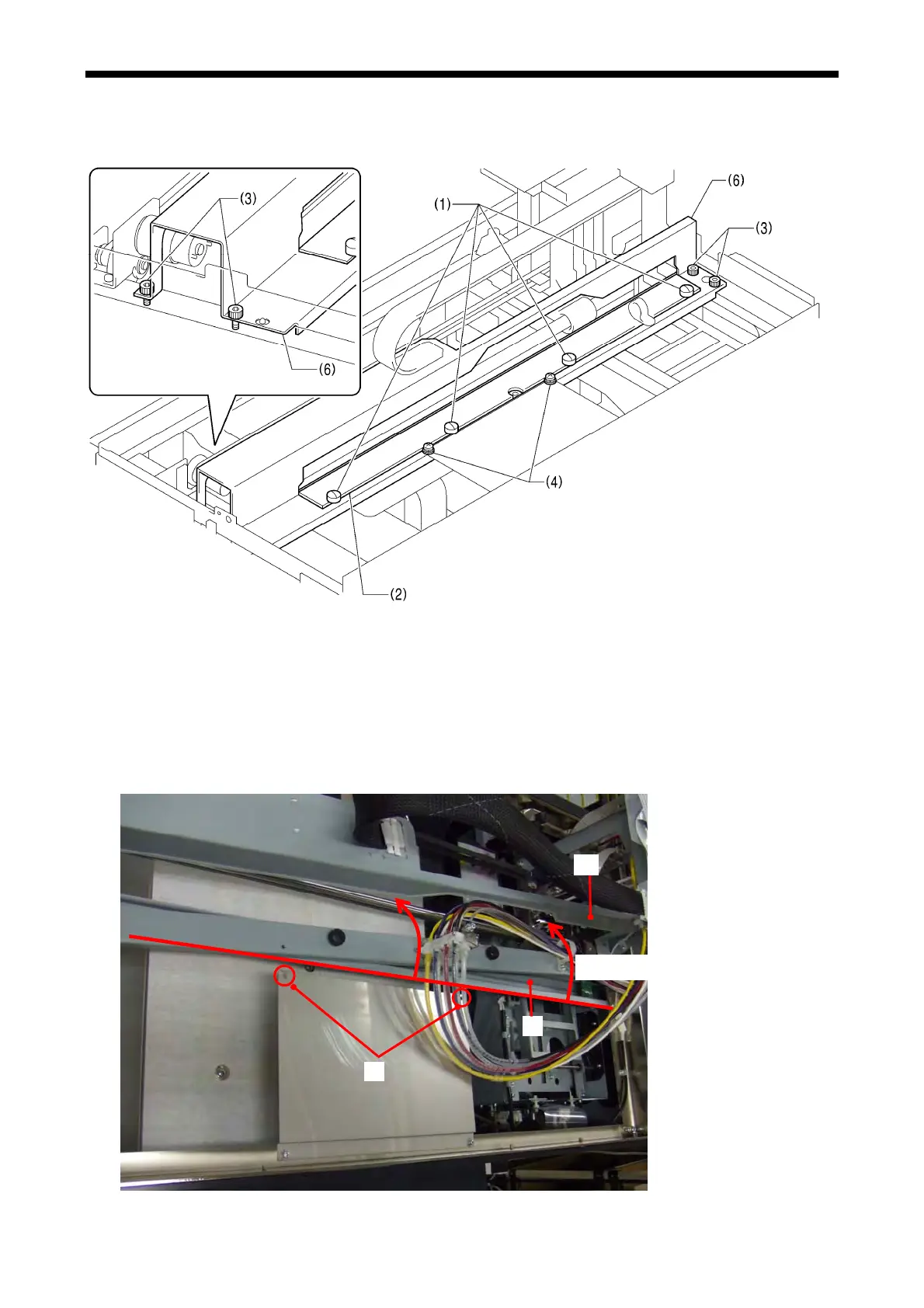

2. Loosen the four screws (1) and remove the Encoder Cover F (2).
3. Remove the four Bolt Sockets (3), two Screws (4) and shift the Carriage Back Plate (6) so that you can
see the Encoder Strip (5) inside.
<Note> Take care not to bend or crush the Tubes; they are very fragile.
Shift
(4)
(5)
(6)
GT-3 Series
158
To Next Page
