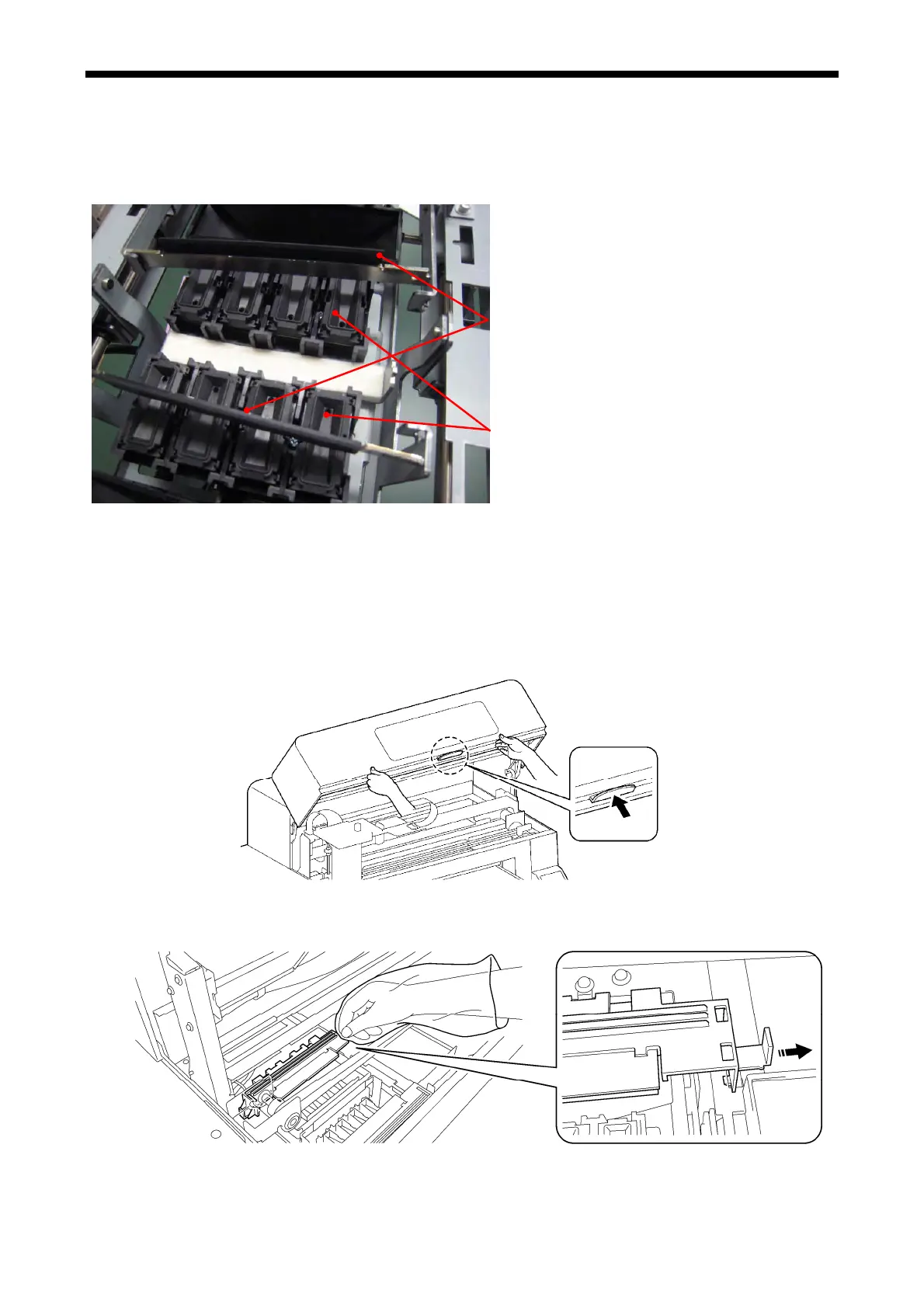

6. Replacing Parts

6-1-18. Checking and Adjusting the Wiper Blade Assy

The Wiper Blade cannot wipe off the waste ink if the Rubber (blade) of the Wiper Blade Assy (1) is bent or

worn out, and this will cause serious damage to the print quality. Confirm the situation and prepare the

Maintenance Cleaning Kit (options*) and the Nozzle Cleaning Kit (options*) to clean the Nozzles of the Print

Heads and the Cap Rubbers.

GT-3 Series

173

(1)

(2)

Requir

d Tools

・Cap Cleaning Kit and the plastic gloves (packed together)

1. Turn ON the printer.

2. Select [ Maintenance ] from the menu by pressing Up/Down Buttons and press OK Button.

3. Select [ Maintenance Parts Exchange ] and press OK Button. The Platen will be loaded and the Wipers

will be moved to the cleaning position. Follow the message and turn OFF the printer.

Open the Front Cover with both hands until it is locked with the stopper.

0046Y

4. Cover your right hand with a plastic bag so that you can hold the used Wiper Cleaner safe and clean.

Pick the right edge of the Wiper Cleaner and move slightly to the right (1-2 mm) by your right hand, the

claw in the right will be released.

0058Y
