6. Replacing Parts
6-1-10. Platen Top Plate and Shoulder Bar
Disassembling

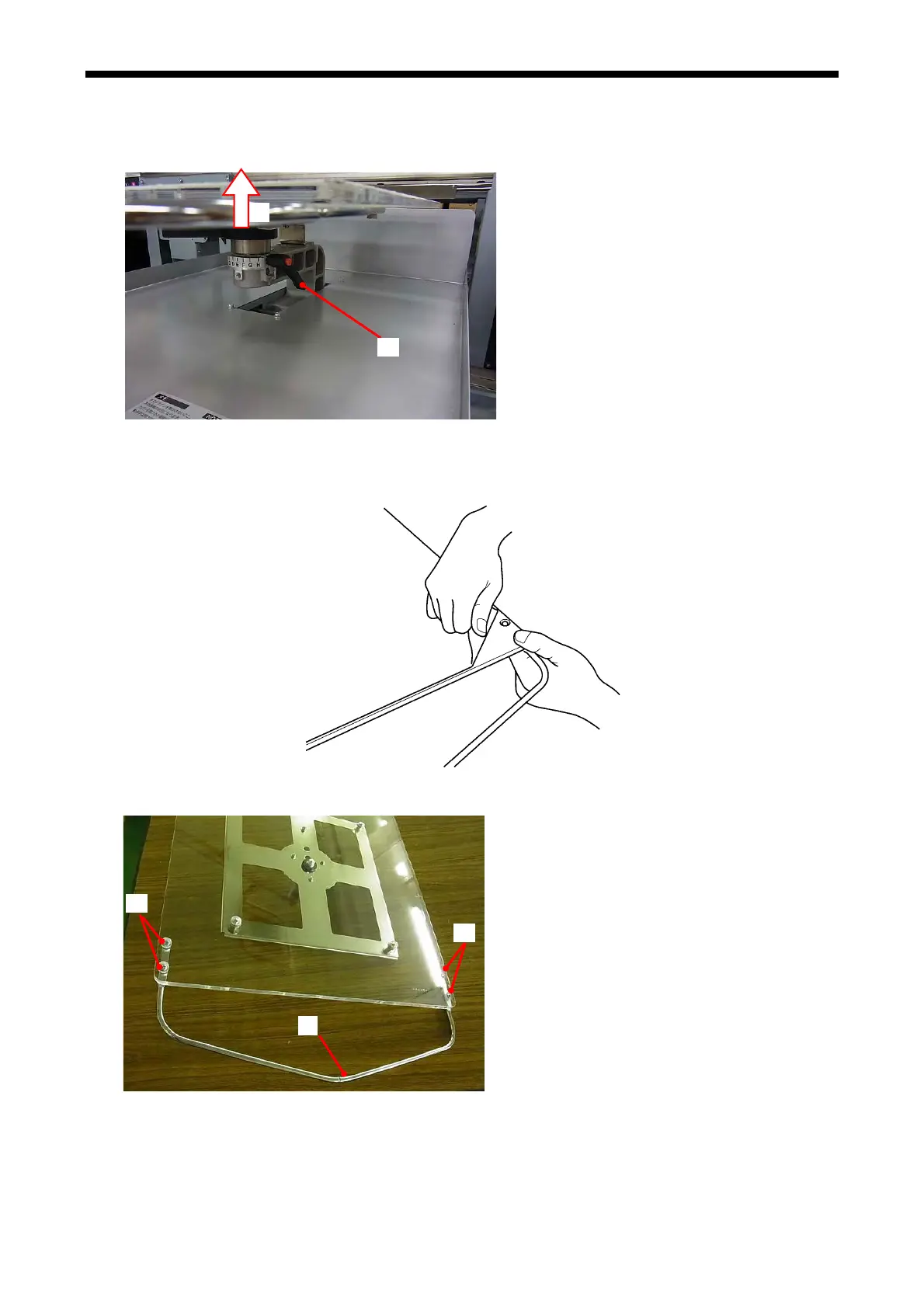

1. Loosen or remove the Clamp Lever (1) and remove the Platen (2).
(2)
(1)
2.
Peel off the Platen Sheet a
s well as the adhesive tape from the Platen surface.
<Note> Prepare a new Platen Sheet for replacement, you cannot reuse.
3.
0077Ｙ
4. Remove the four Screws (3) and remove the Shoulder Bar (4).
(3)
(3)
(4)
GT-3 Series
147
