Brother GT-3 Series Service Manual

6. Replacing Parts
6-2-8. EMC Filter

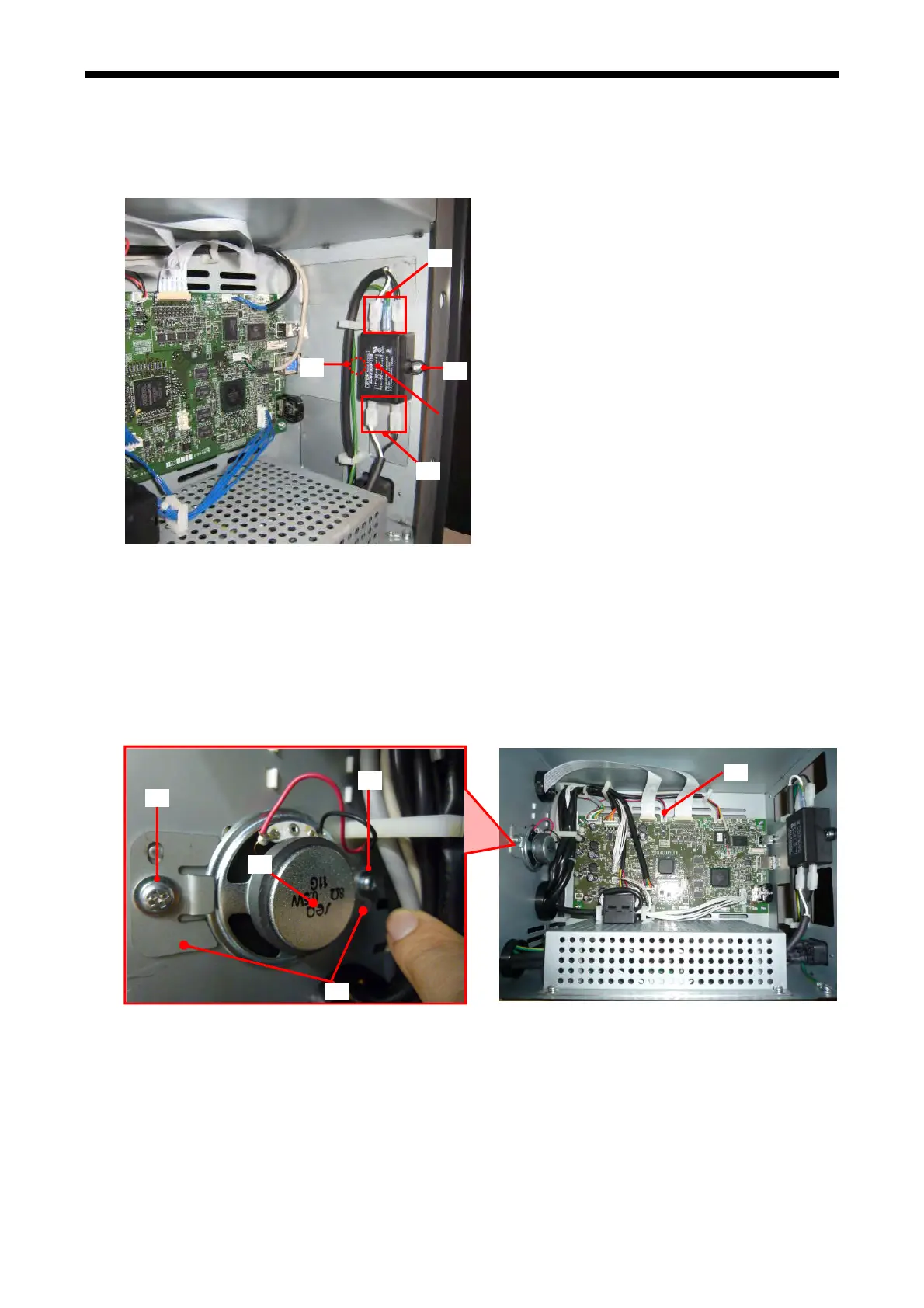

Disassembling
1. Remove the Cover DR (right side). (Refer to “6-1-2. Assembling/Disassembling of the Covers”.)
2. Remove the all five Faston Terminals (2) that connect to the EMC Filter (1).
Remove the two screws (3) that fix the EMC Filter.
(2)
(3)
(3)
(2)
3. Follow the
reverse steps in reassembling.
6-2-9. Speaker
Disassembling
1. Remove the Cover DR (right side). (Refer to “6-1-2. Assembling/Disassembling of the Covers”.)
2. Remove the Connector (1) that connects to the Speaker.
3. Loosen the two screws (3) that fix the Speaker Holder (2) and remove the Speaker (4).
(1)
(3)
(3)
(4)
(2)
4.
Follow the
reverse steps in reassembling.
GT-3 Series
322
