Brother GT-3 Series Service Manual

6. Replacing Parts
6-2-20. Ink Switch PCB Assy
Disassembling
1. Remove the Cover Cartridge. (Refer to “6-2-19. Ink Sensor PCB Assy”.）

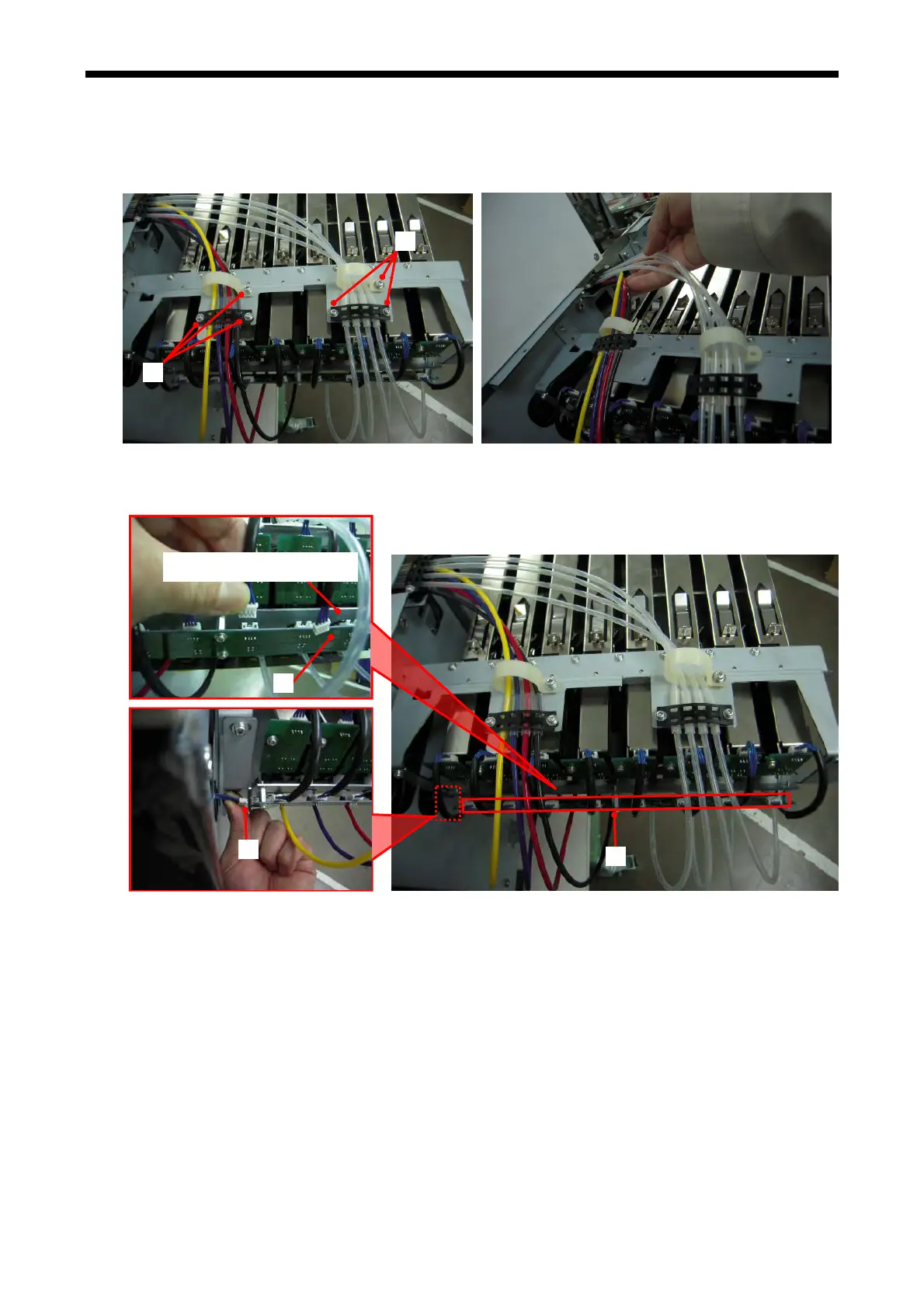

2. Remove the six Screws (1) that fix the Tube Clamp.
(1)
(1)
3. Remove all th
e nine Connectors (4) on the Ink Switch PCB Assy (3).
(4)
Ink Switch 1 Bracket
(3)
(4)
GT-3 Series
340
