Brother GT-3 Series Service Manual

6. Replacing Parts
GT-3 Series
267
6-1-36. Needles
Required Tools
 Wrench 10 (to unscrew Nut 8)
 Phillips screwdriver
 Needle-nose Pliers
 Plastic gloves
<Note>
Keep the inside of the Tubes free from dust in operation.
The ink may run out of the Tube; do not damage your cloth or table with dropped ink in operation. Connect the
joint to cover the Tube.

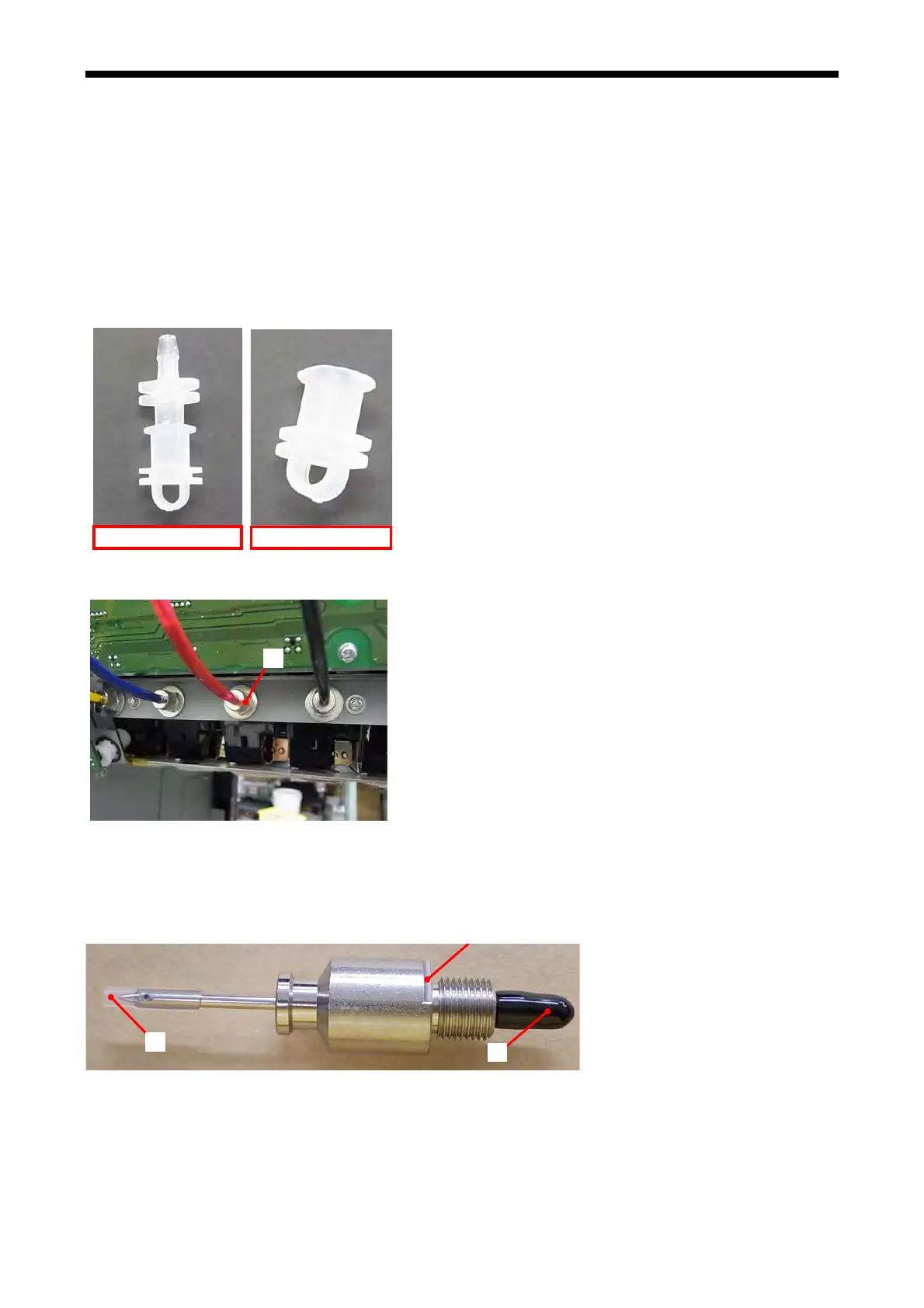

The Needles are mounted as follows.
Needle + Needle Bracket + Washer Plain S 8 + Not 8 + Tube Clamp D3 (1)
<Note>
Do not remove the PCV cap (3) until you connect the Tube to keep the inside clean.
Do not remove the Needle-Tip Tube (4) until you insert the Filter Cartridge or Ink Cartridge.
VR
S206
+VRFP
6
VRFP
6
(1)
(3)
(4)
Flange of the Needle (B)
