6. Replacing Parts

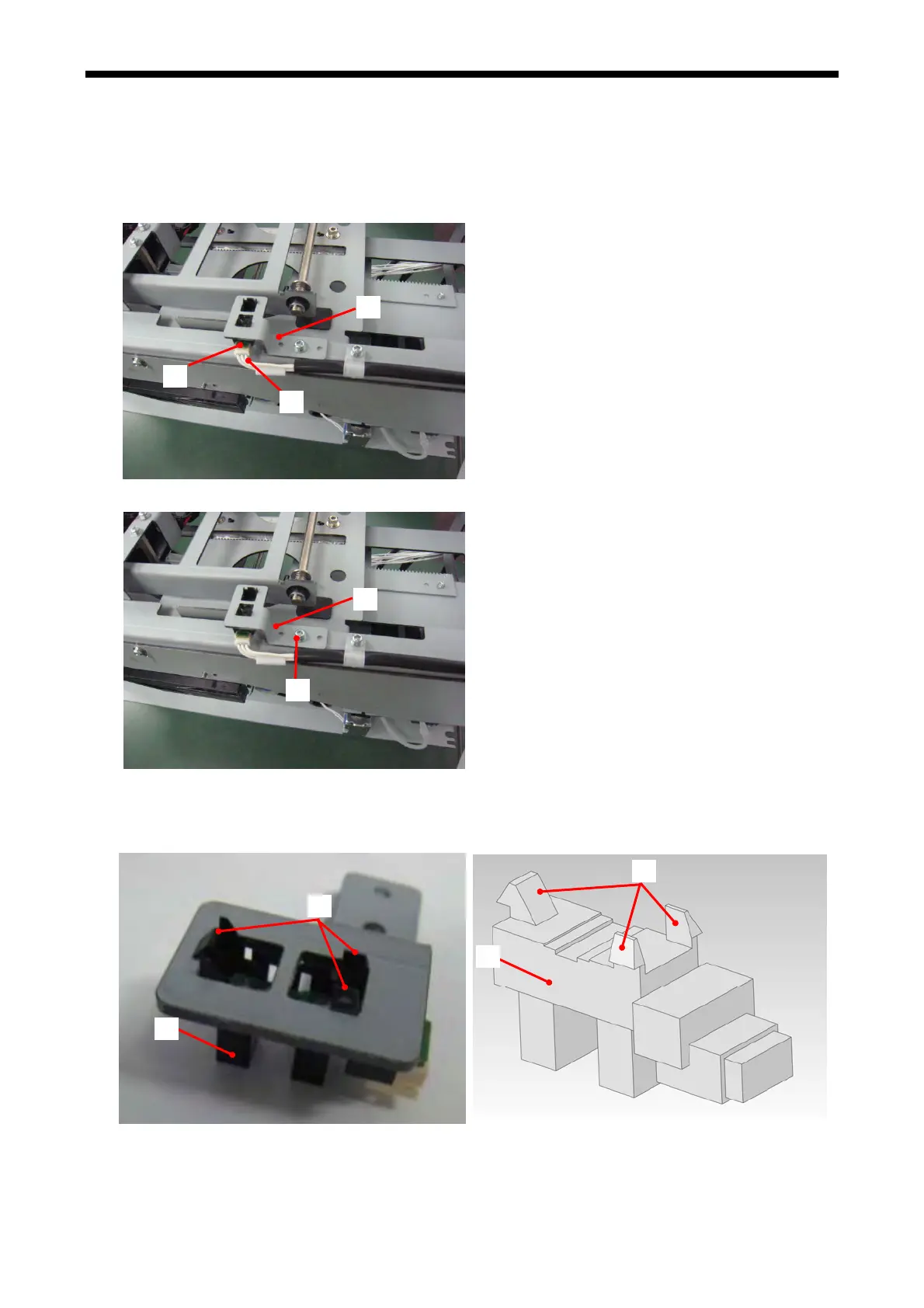

6-1-26. Wiper Sensor

Required Tool

・Phillips screwdriver

Disassembling

1. Remove the Maintenance Unit. (Refer to “6-1-16. Assembling / Disassembling of the Maintenance Unit”.)

2. Remove the Connector (1).

(2)

(1)

(4)

3. Remov

e the Screw (3) that fixes the W Sensor Holder (2).

(3)

(2)

Replac

emen

t & Assembling

1. Replace the Sensor (4).

2. Confirm that the claws (5) of the Sensor are hooked firmly.

(5)

(4)

GT-3 Series

198
