Brother GT-3 Series Service Manual

6. Replacing Parts
6-2-19. Ink Sensor PCB Assy
Disassembling

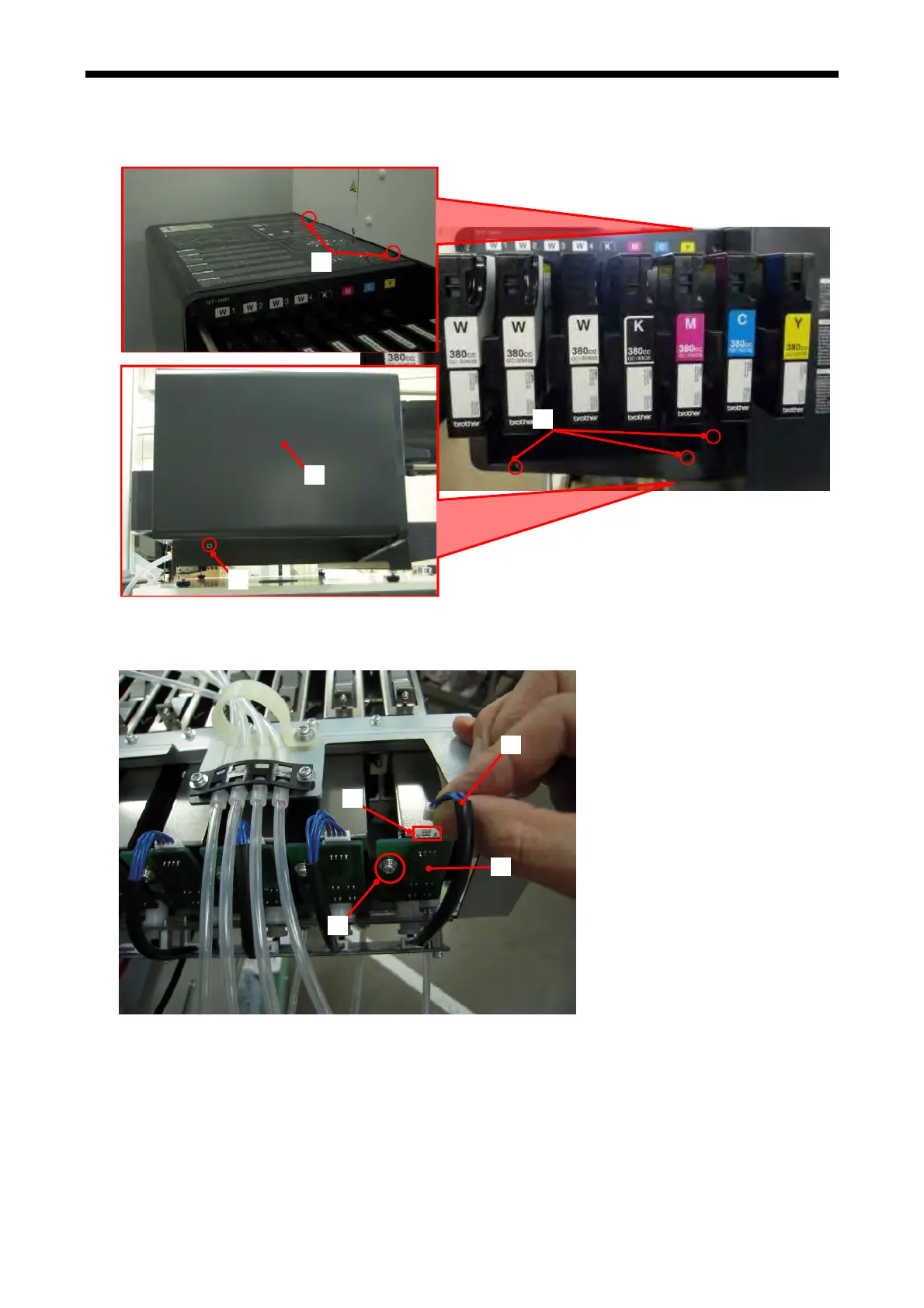

1. Remove the AC Cord and remove the six Screws (2) that fix the Cover Cartridge (1).
GT-3 Series
339
2. Remov
e the Cover Cartridge (1).
3. Disconnect the Harness: Ink Sensor (5) from the Connector (4) on the Ink Sensor PCB Assy (3).
Remove the one Screw (6) that fixes the PCB.
4. Remove the Ink Sensor PCB Assy (3).
5. Follow the reverse steps in reassembling.
(2)
(2)
(2)
(1)
(5)
(4)
(3)
(6)
