6. Replacing Parts
6-2-11. Surge Absorber PCB Assy
Disassembling
1. Remove the AC Cord and remove the Cover DR (right side). (Refer to “6-1-2. Assembling/Disassembling
of the Covers”.)
2. Remove the Power Cover. (Refer to “6-2-10. Power Unit”.)

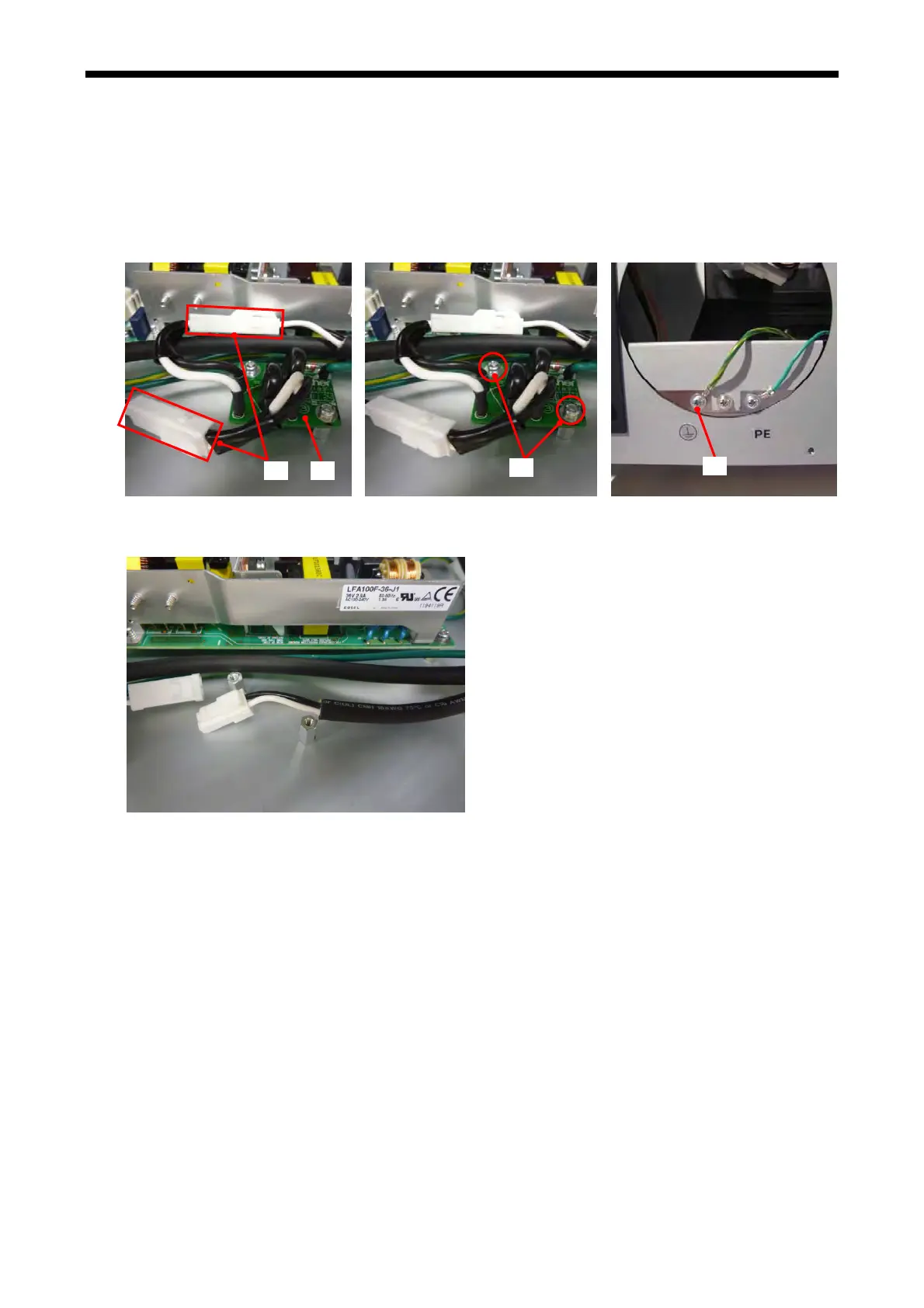

3. Remove the two Connectors (2) that connect to Surge Absorber PCB Assy (1). Remove the two screws
(3) that fix the Surge Absorber PCB Assy (1).
Remove the one screw (4) that connects the Ground Wire (green/yellow) from the PCB.
(4)
(3)
GT-3 Series
324
4.
D
isconnect and remove the Surge Absorber PCB Assy.
5. Follow the reverse steps in reassembling.
