1-6
Before You Start
1
Parts and Their Functions
Parts and Their Functions
This printer consists of components that perform various functions. This section
describes the name and function of each part in order for you to use this printer
properly to make full use of its functions.
Printer Unit
The following are the parts and functions of the printer unit.
CAUTION
Never block the ventilation slots on the printer. The ventilation slots are
provided for proper ventilation of working parts inside the printer. Blocking the
ventilation slots can cause the printer to overheat, resulting in a fire.

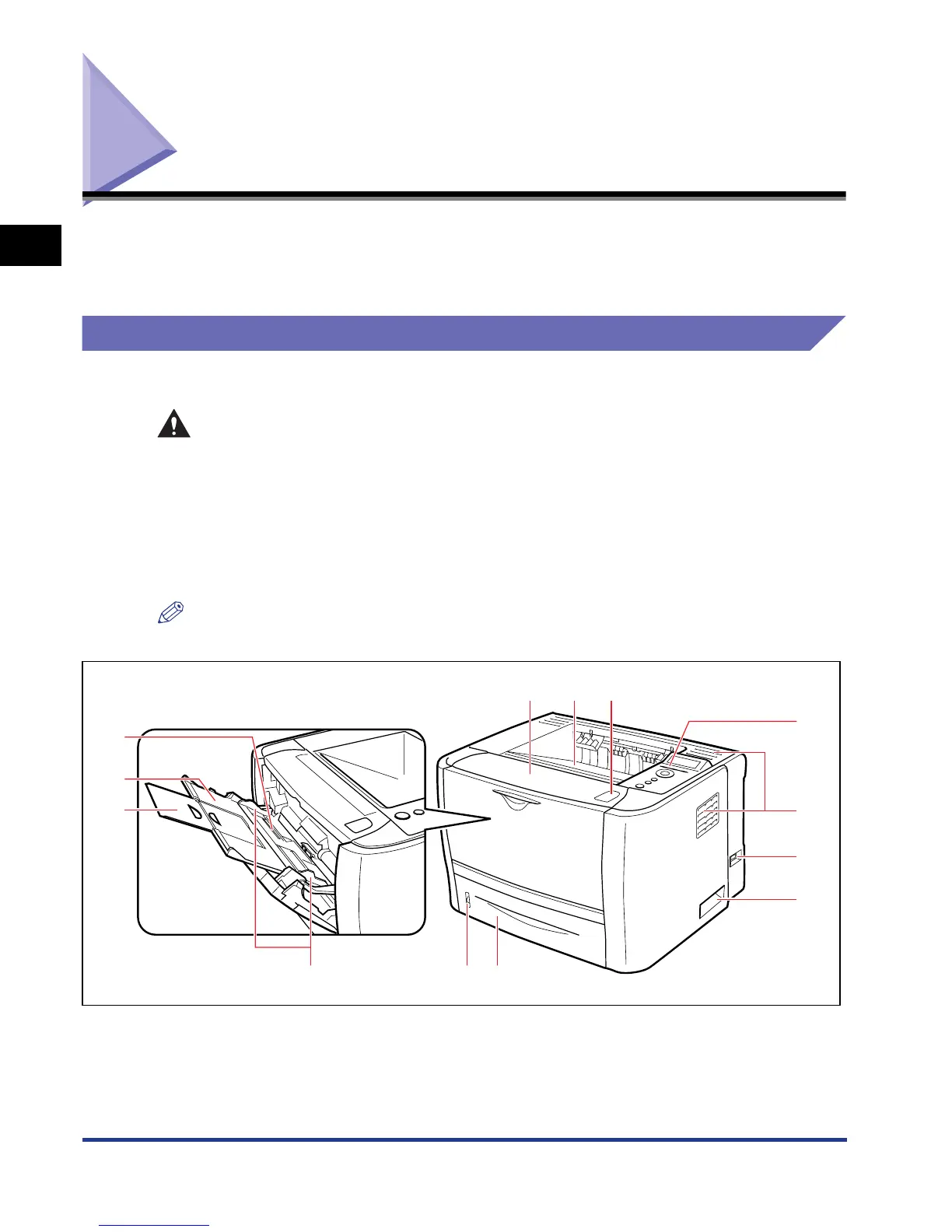

Front View
The following are the parts on the front side of the printer and their functions.
NOTE
Remove the film attached to the control panel before using the panel.
aa
aa
Multi-purpose Tray
Load paper when feeding the paper from the
multi-purpose tray. (See p. 4-33)
bb
bb
Auxiliary Tray
Pulled out when loading paper in the multi-purpose
tray. Be sure to pull out this auxiliary tray before
loading the paper.
a
b
c
edf
ghi
k
j
l
m
To Next Page
