Before You Start
1
Parts and Their Functions
ee
ee
Duplex Unit Cover
Opened when specifying the size of paper for
2-sided printing or removing paper jammed in the
duplex unit.
ff
ff
Serial No. Label
The serial number (Serial No.) for printer
identification is indicated on this label. The number
is required for receiving service or repairs.
gg
gg
Paper Size Switch Lever
Switch the lever according to the paper size for
2-sided printing when performing 2-sided printing.
(See p. 4-49)
hh
hh
Ventilation Slots
Cool the insides of the printer.
ii
ii
Face-up Output Slot
Outputs paper with the printed side facing up. (See
p. 4-14)
jj
jj
100 Indicator (Green)
Comes on when the printer is connected to a
network by 100BASE-TX.
kk
kk
10 Indicator (Green)
Comes on when the printer is connected to a
network by 10BASE-T.
ll
ll
TX/RX Indicator (Green)
Blinks while the print server is communicating.
mm
mm
LAN Connector
Connects to a 10BASE-T/100BASE-TX LAN cable.
nn
nn
USB Connector
Connected to the USB cable. Connect the other end
of the cable to the USB port on the computer.

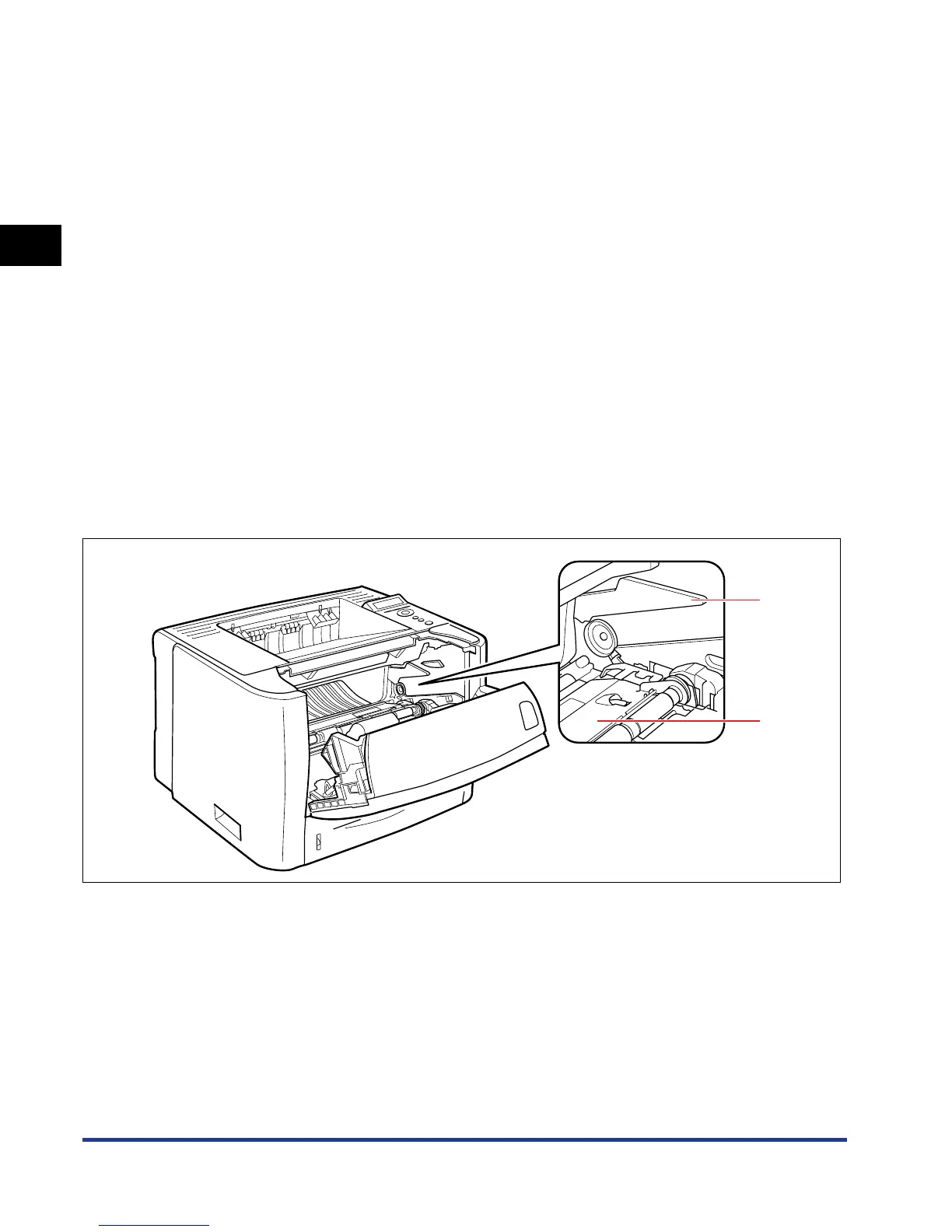

Inner View
The following are the parts inside the printer and their functions.
aa
aa
Toner Cartridge Guide
When setting the toner cartridge, push it while
aligning the projections on each side of the toner
cartridge with this guide. (See p. 7-13)
bb
bb
Transport Guide
Raised when removing paper jammed in the front
cover. (See p. 8-13)
