1-7
Before You Start
1
Parts and Their Functions
cc
cc
Tray Extension
Opened to prevent the paper from hanging out of
the multi-purpose tray when loading long-size paper,
such as A4.
dd
dd
Paper Guides
Adjust the position of the paper guides to the width
of the paper loaded in the multi-purpose tray. You
can load paper up to the load limit marks on this
tray.
ee
ee
Paper Level Indicator
Shows the amount of paper remaining in the paper
cassette.
If the paper cassette is full, the indicator is at the top.
Because the indicator moves down as the amount of
paper drops, this gives a rough estimate of the
amount of paper remaining.
ff
ff
Paper Cassette
Can be loaded with up to 250 sheets of plain paper
(of 80 g/m
2
). (See p. 4-17)
gg
gg
Front Cover
Opened when replacing the toner cartridge or
removing jammed paper. (See p. 7-4)
hh
hh
Face-down Output Tray
Outputs paper with the printed side facing down.
(See p. 4-13)
ii
ii
Open Button
Press this button to open the front cover.
jj
jj
Control Panel
Displays the printer status and allows you to specify
the settings. (See p. 1-9)
kk
kk
Ventilation Slots
Cool the insides of the printer.
ll
ll
Power Switch
Tu r ns the power of the printer ON/OFF. (See p. 2-33)
mm
mm
Lift Handles
Hold these handles when moving the printer. (See p.
7-33)

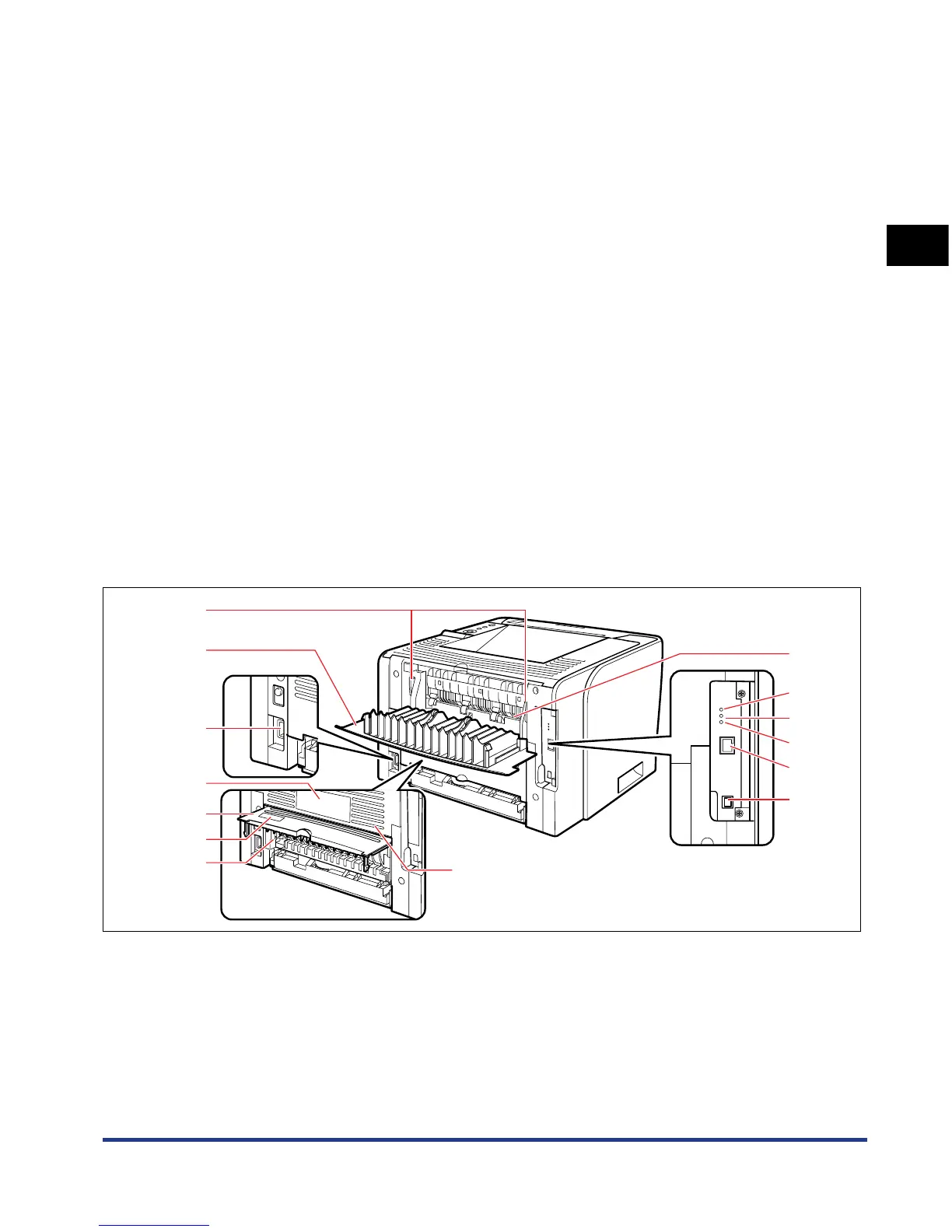

Rear View
The following are the parts on the rear side of the printer and their functions.
aa
aa
Pressure Release Levers
Press down these levers when removing jammed
paper.
(See p. 8-10)
bb
bb
Output Selection Cover
Open when using the face-up output slot or
removing paper jammed in the output area.
(See p.
4-16)
cc
cc
Power Socket
Connect the supplied power cord to this socket.
dd
dd
Rating Label
The current value indicated in this rating label shows
the average power current consumption.
e
g
d
c
a
b
i
k
j
l
m
n
f
h
To Next Page
