Operating the Touchscreen | Display unit and operation
3
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
125
Operating panel
Integrated operating panel
The operating panel is integrated in the screen. The content of the
operating panel changes depending on the current operating mode.
1 Area for showing the following:
Alphabetic keyboard
HeROS menu
Potentiometer for the speed of simulation (only in the Test
Run operating mode)
2 Machine operating modes
3 Programming modes
The control shows the active operating mode, to which the
screen is switched, with a green background.
The control shows the operating mode in the background
through a small white triangle.
4 File management
Calculator
MOD function
HELP function
Show error messages
5 Rapid access menu
Depending on the operating mode, you’ll find the most impor-
tant functions here at a glance.
6
Opening the programming dialogs (only in the Programming
and Positioning w/ Manual Data Input operating modes)
7 Numerical input and axis selection
8 Navigation
9
Arrows and the jump statementGOTO
10 Task bar
Further information: "Icons of the taskbar", page 136
In addition, the machine tool builder supplies a machine operating
panel.
Refer to your machine manual.
External keys, e.g.NC START or NC STOP, are described
in your machine manual.
2
3
4 5
8
9
6
7
1
10

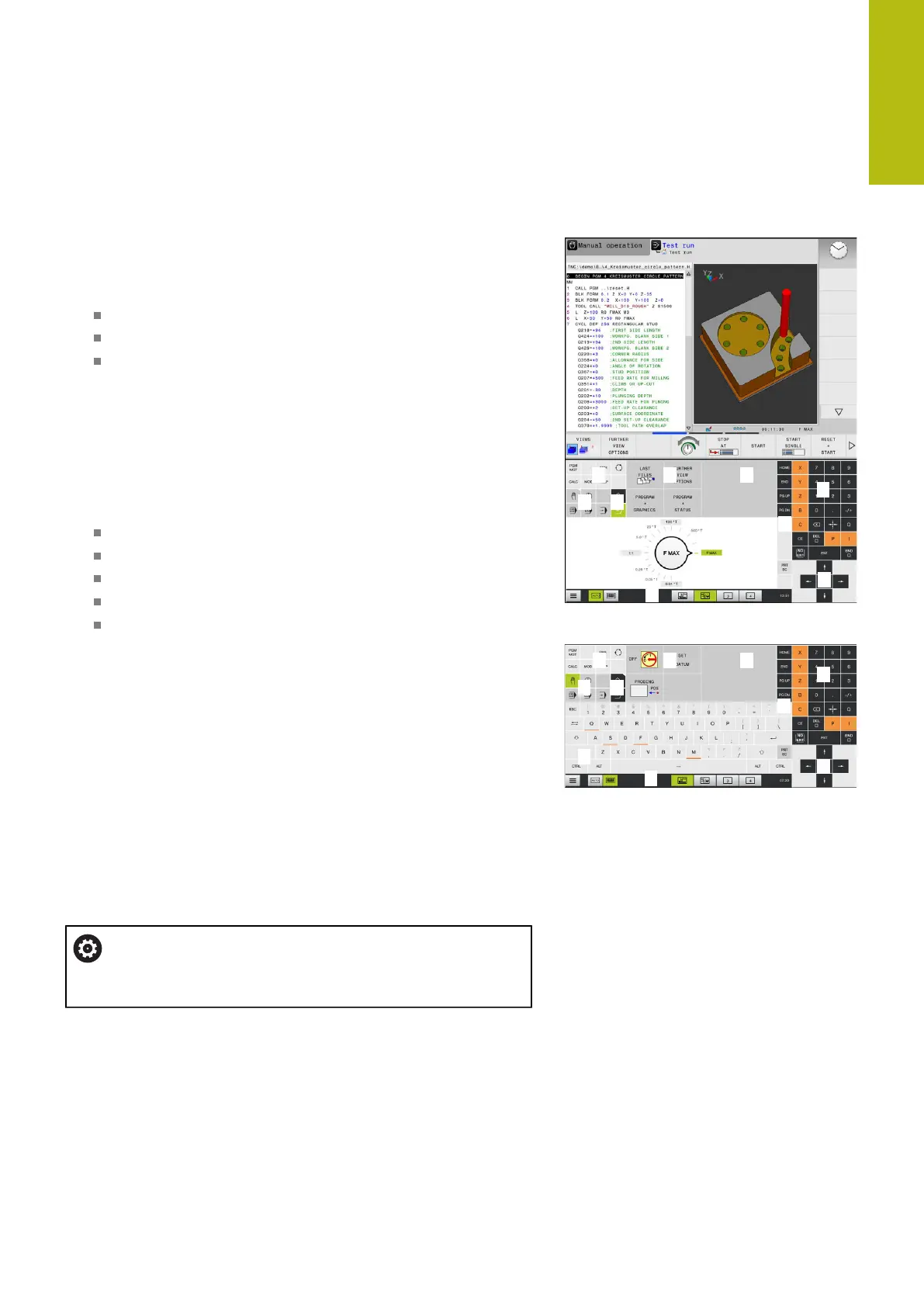

Operating panel of the Test Run mode
2
3
4
5
8
9
6
7
1
10
Operating panel in the Manual Operation mode

HEIDENHAIN TNC 620 Specifications

General

Power Supply	24 V DC
Control Type	CNC
Axes	Up to 5 axes
Display	15" TFT color flat-panel display
Interfaces	Ethernet, USB
Data Transfer	Ethernet, USB
Hard Drive	SSD
Storage	SSD
