HEIDENHAIN TNC 620 User Manual

Test Run and Program Run | Graphics (option 20)
18
702
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

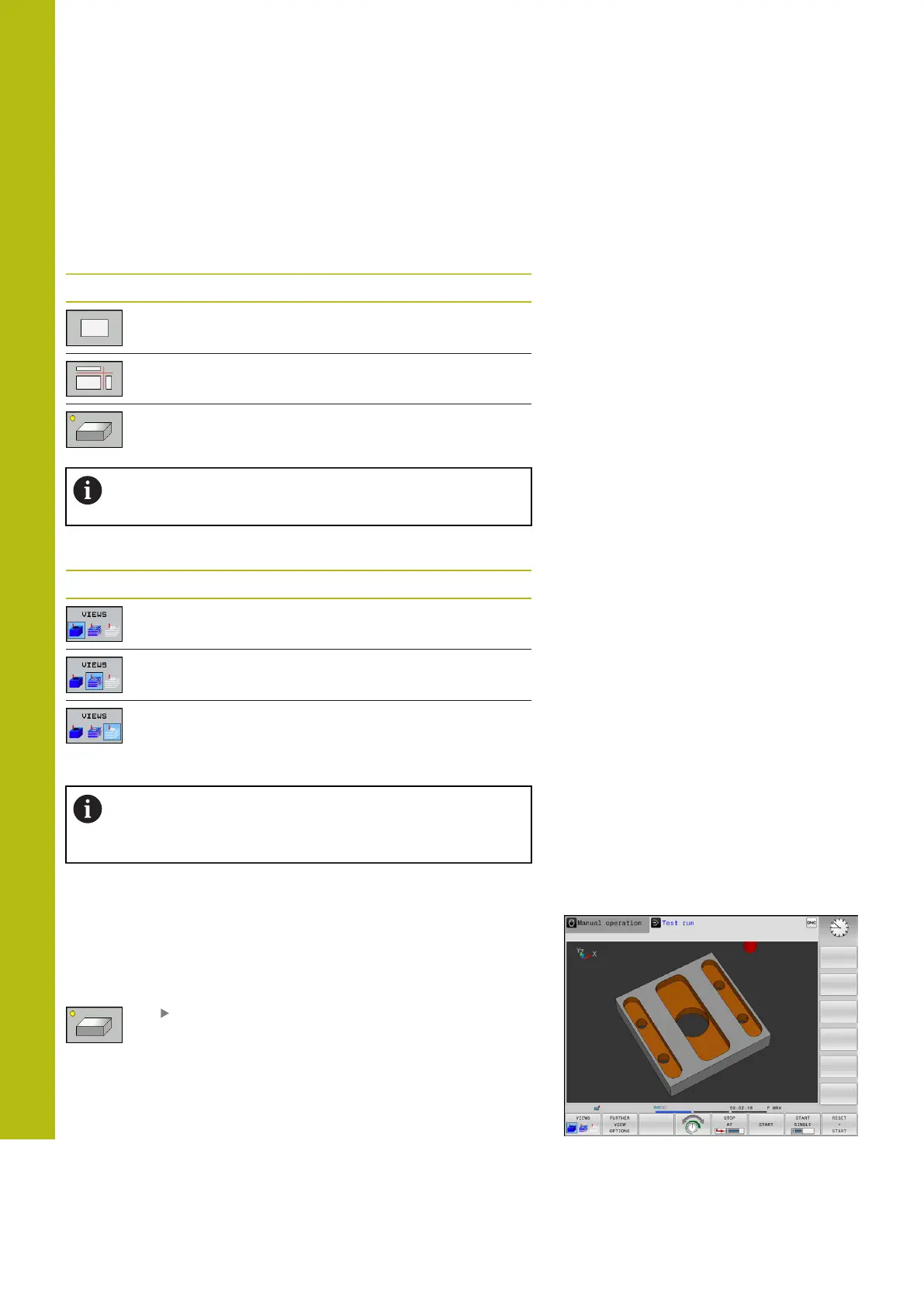

Overview: Display modes
In the Program run, single block and Program run, full sequence
operating modes, as well as in Test Run operating mode, the
control displays the following soft keys:
Soft key View
Plan view
Projection in three planes
3-D view
The position of the soft keys depends on the selected
operating mode.
The Test Run mode of operation also offers the following views:
Soft key View
Volume view
Volume view and tool paths
Tool paths
Limitations during program run
The simulation may contain errors if the control’s
computing capacity is being fully utilized for complex
machining tasks.
3-D view
Choose 3-D view:
The high-resolution 3-D view enables you to display the surface of
the machined workpiece in greater detail. Using a simulated light
source, the control creates realistic light and shadow conditions.
Press the 3-D view soft key

HEIDENHAIN TNC 620 Specifications

General

Power Supply	24 V DC
Control Type	CNC
Axes	Up to 5 axes
Display	15" TFT color flat-panel display
Interfaces	Ethernet, USB
Data Transfer	Ethernet, USB
Hard Drive	SSD
Storage	SSD
