Multiple-Axis Machining | FUNCTION TCPM (option 9)

574

HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

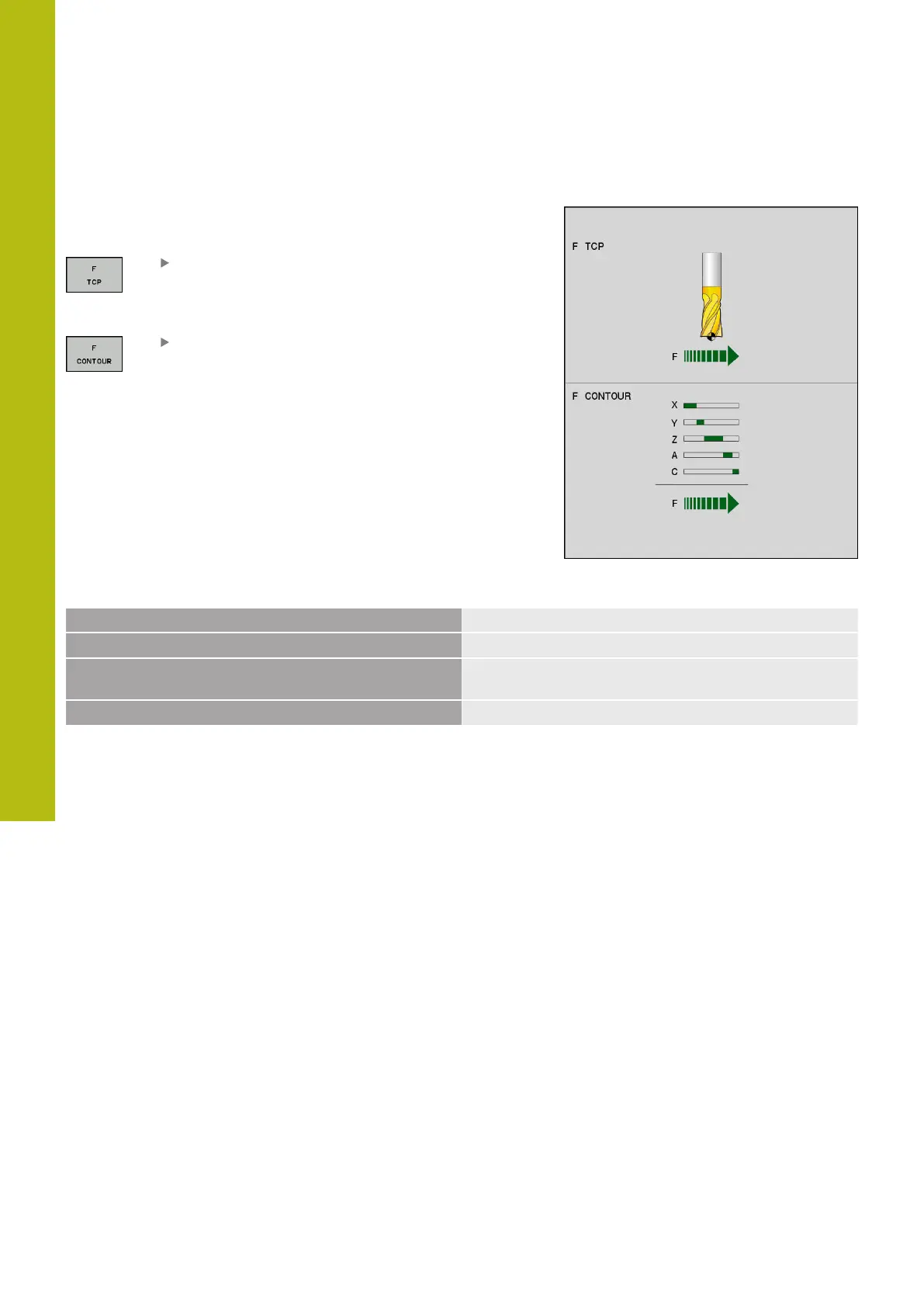

Mode of action of the programmed feed rate

The control provides two functions for defining the operating

method of the programmed feed rate:

F TCP determines that the programmed feed

rate is interpreted as the actual relative velocity

between the tool tip (tool center point) and the

workpiece

F CONT determines that the programmed feed

rate is interpreted as the contouring feed rate

of the axes programmed in the respective NC

block.

Example

...

13 FUNCTION TCPM F TCP ...

Feed rate refers to the tool tip

14 FUNCTION TCPM F CONT ...

Feed rate is interpreted as the speed of the tool along the

contour

...
