Subprograms and Program Section Repeats | Any desired NC program as subprogram

HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

351

9.4 Any desired NC program as subprogram

Overview of the soft keys

When you press the PGM CALL key, the control displays the

following soft keys:

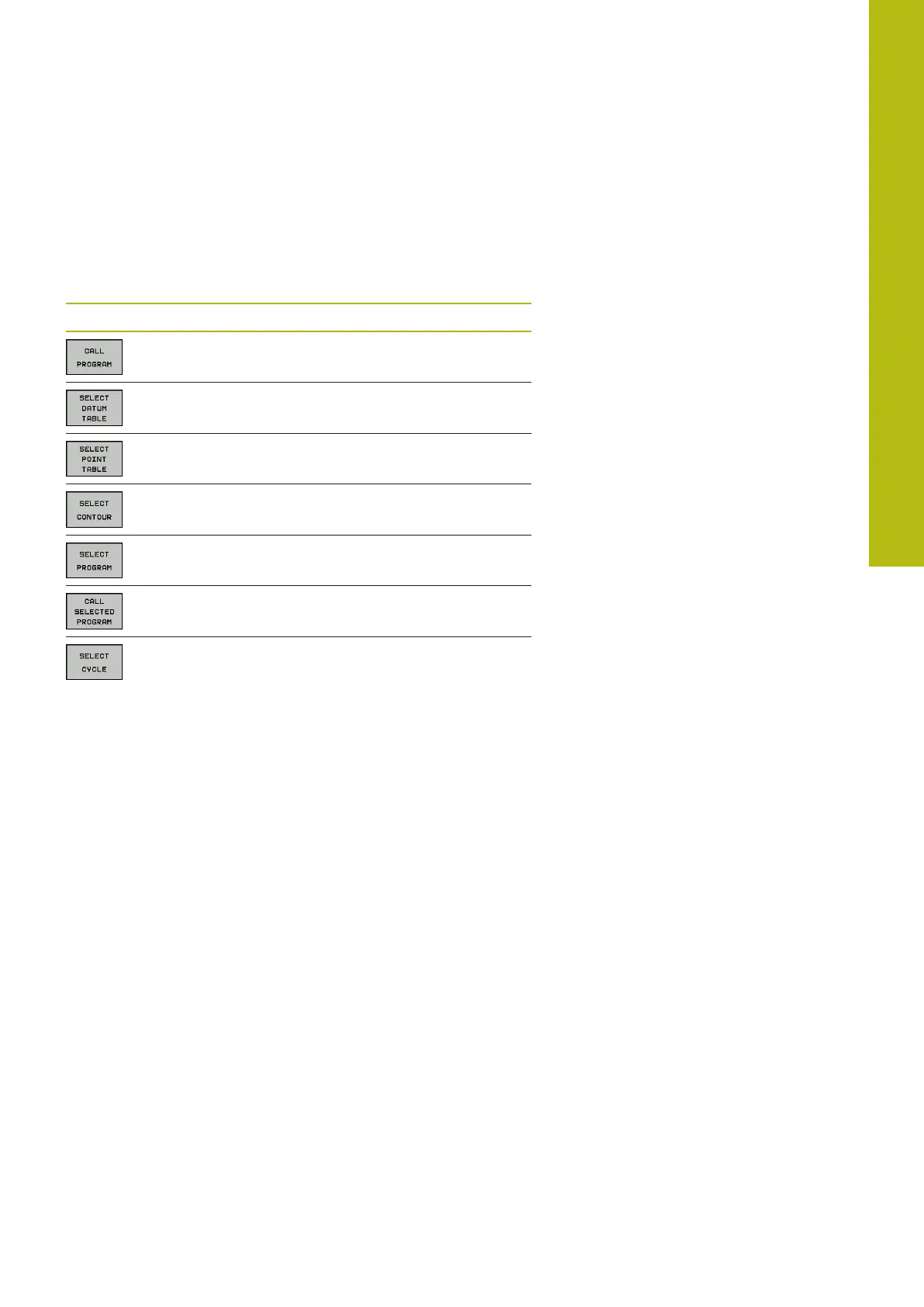

Soft key Function

Call an NC program with PGM CALL

Select a datum table with SEL TABLE

Select a point table with SEL PATTERN

Select a contour program with SEL CONTOUR

Select an NC program with SEL PGM

Call the last selected file with CALL SELECTED

PGM

Select any NC program with SEL CYCLE as a fixed

cycle

Further information: Cycle Programming User's

Manual
