HEIDENHAIN TNC 620 User Manual

First Steps with the TNC 620 | Setting up tools
1
82
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

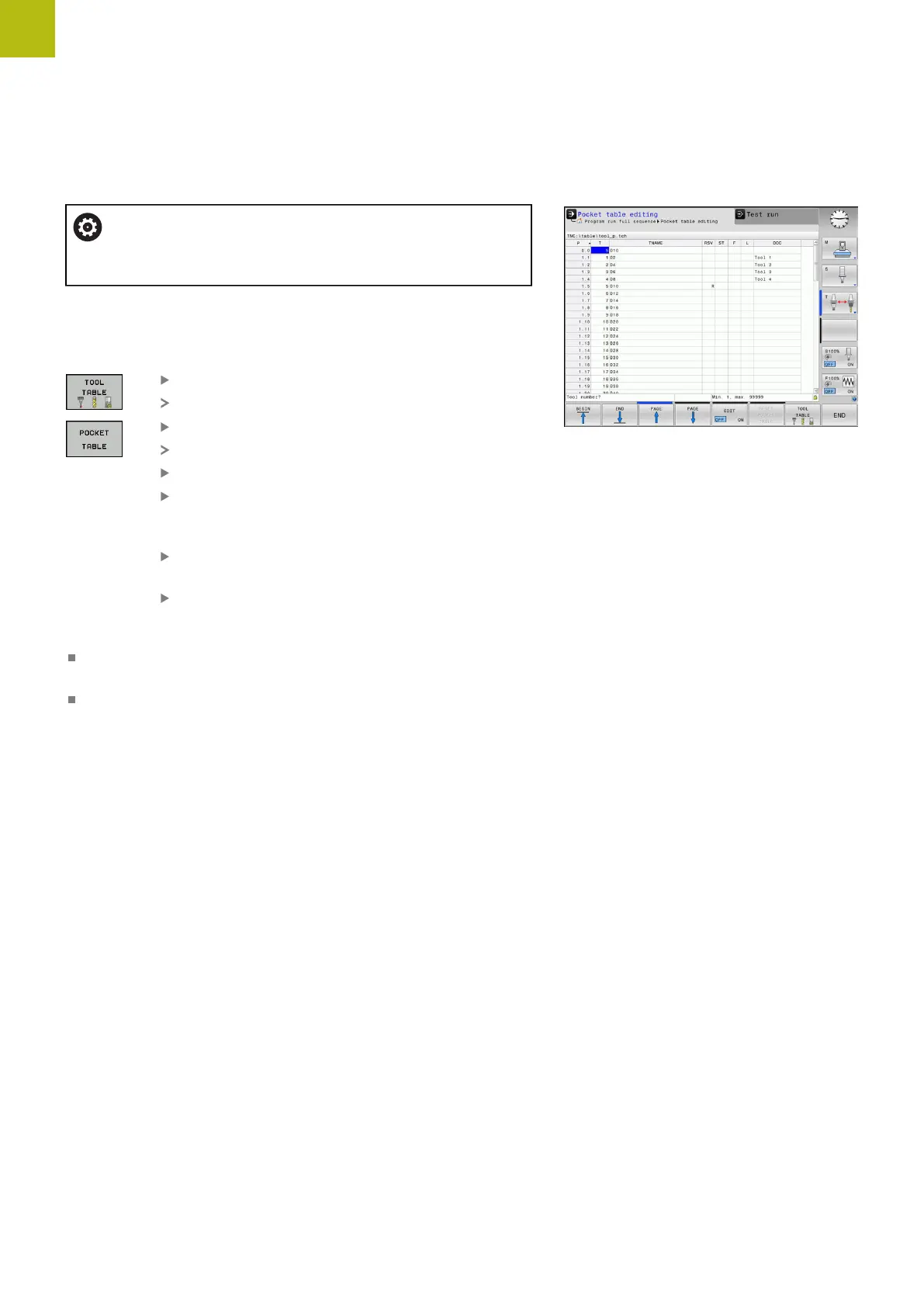

The pocket table TOOL_P.TCH
Refer to your machine manual.
The function of the pocket table depends on the
machine.
In the pocket table TOOL_P.TCH (permanently saved under
TNC:\table\) you specify which tools your tool magazine contains.
To enter data in the pocket table TOOL_P.TCH, proceed as follows:
Display the tool table
The control shows the tool table.
Display the pocket table
The control shows the pocket table.
Edit the pocket table: Set the EDIT soft key to ON
With the upward or downward arrow keys you
can select the pocket number that you want to
edit
With the rightward or leftward arrow keys you
can select the data that you want to edit
To leave the pocket table, press the END key
Further information on this topic
Operating modes of the control
Further information: "Modes of operation", page 91
Working with the pocket table
Further information: "Pocket table for tool changer",
page 246

HEIDENHAIN TNC 620 Specifications

General

Power Supply	24 V DC
Control Type	CNC
Axes	Up to 5 axes
Display	15" TFT color flat-panel display
Interfaces	Ethernet, USB
Data Transfer	Ethernet, USB
Hard Drive	SSD
Storage	SSD
