1.5 Setting up tools
Selecting the correct operating mode

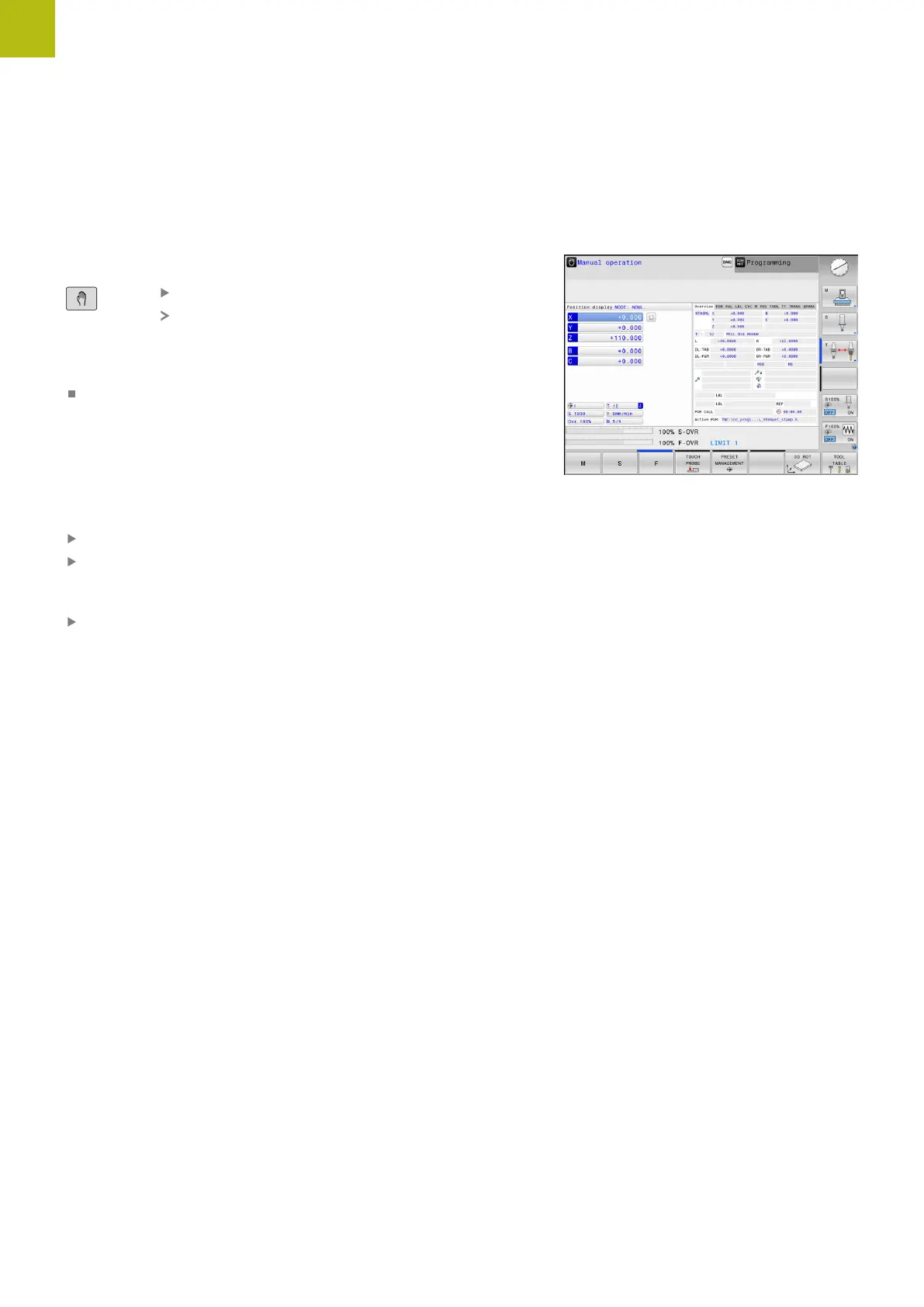

Tools are set up in the Manual operation mode:
Press the operating mode key
The control switches to the Manual operation
mode.
Further information on this topic
Operating modes of the control
Further information: "Modes of operation", page 91
Preparing and measuring tools
Clamp the required tools in their tool holders
When measuring with an external tool presetter: Measure the
tools, note down the length and radius, or transfer them directly
to the machine through a transfer program
When measuring on the machine: store the tools in the tool
changer
Further information: "The pocket table TOOL_P.TCH",
page 82

HEIDENHAIN TNC 620 Specifications

General

Power Supply	24 V DC
Control Type	CNC
Axes	Up to 5 axes
Display	15" TFT color flat-panel display
Interfaces	Ethernet, USB
Data Transfer	Ethernet, USB
Hard Drive	SSD
Storage	SSD
