Special Functions | Pulsing spindle speed FUNCTION S-PULSE

HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

525

Resetting the pulsing spindle speed

Example

18 FUNCTION S-PULSE RESET

Use the FUNCTION S-PULSE RESET to reset the pulsing spindle

speed.

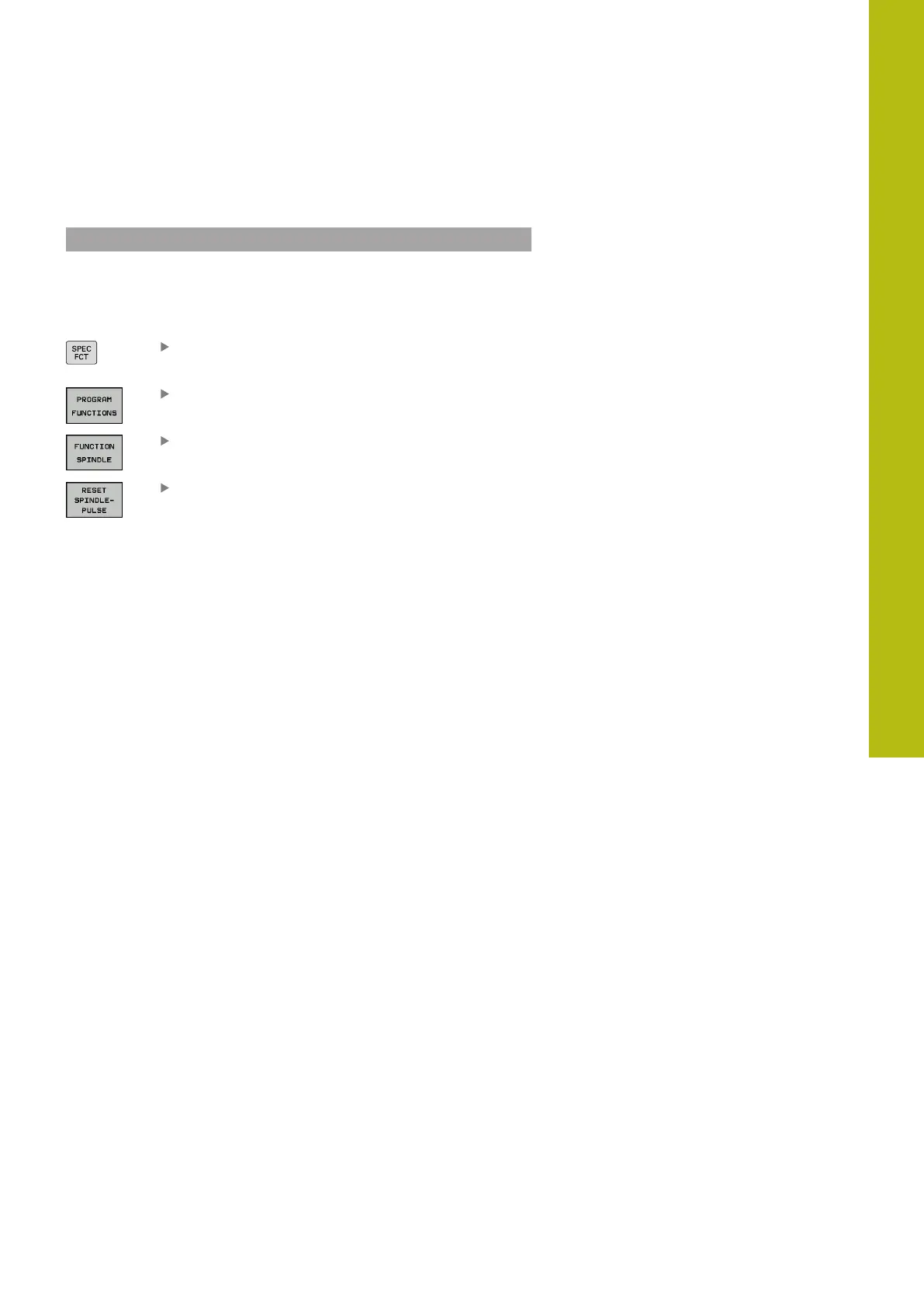

Proceed as follows for the definition:

Show the soft-key row with special functions

Press the PROGRAM FUNCTIONS soft key

Press the FUNCTION SPINDLE soft key

Press the RESET SPINDLE-PULSE soft key.
