Manual Operation and Setup | Presetting with a 3-D touch probe (option number 17)
16
678
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

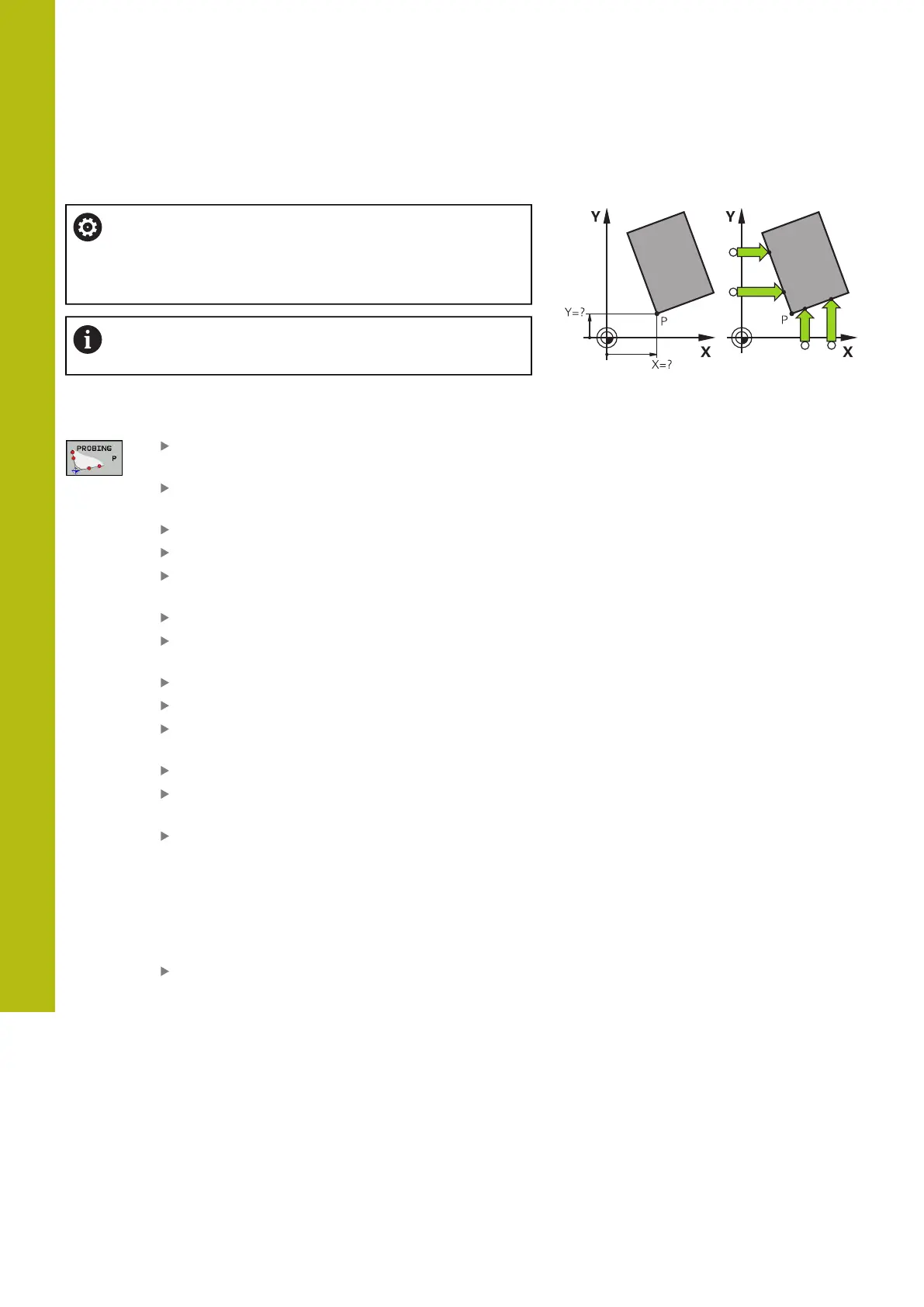

Corner as preset
Refer to your machine manual.
It depends on the machine whether you can
compensate workpiece misalignment with an offset
(angle for table rotation).
HEIDENHAIN only gives warranty for the function of the
probing cycles if HEIDENHAIN touch probes are used.
The "Corner as preset" probing cycle identifies the angle and
intersection of two straight lines.
Select the probing function: Press the
PROBING P soft key
Position the touch probe near the first touch
point on the first workpiece edge
Select the probe direction by soft key
Probe: Press the NC Start key
Position the touch probe near the second touch
point on the same workpiece edge
Probe: Press the NC Start key
Position the touch probe near the first touch
point on the second workpiece edge
Select the probe direction by soft key
Probe: Press the NC Start key
Position the touch probe near the second touch
point on the same workpiece edge
Probe: Press the NC Start key
Preset: Enter both coordinates of the preset in
the menu window
Apply with the SET PRESET soft key
Further information: "Writing measured values
from the touch probe cycles to a datum table",
page 661
Further information: "Writing measured values
from the touch-probe cycles to the preset table",
page 662
To terminate the probe function, press the END
soft key
