Programming Aids | Programming graphics
5
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
213

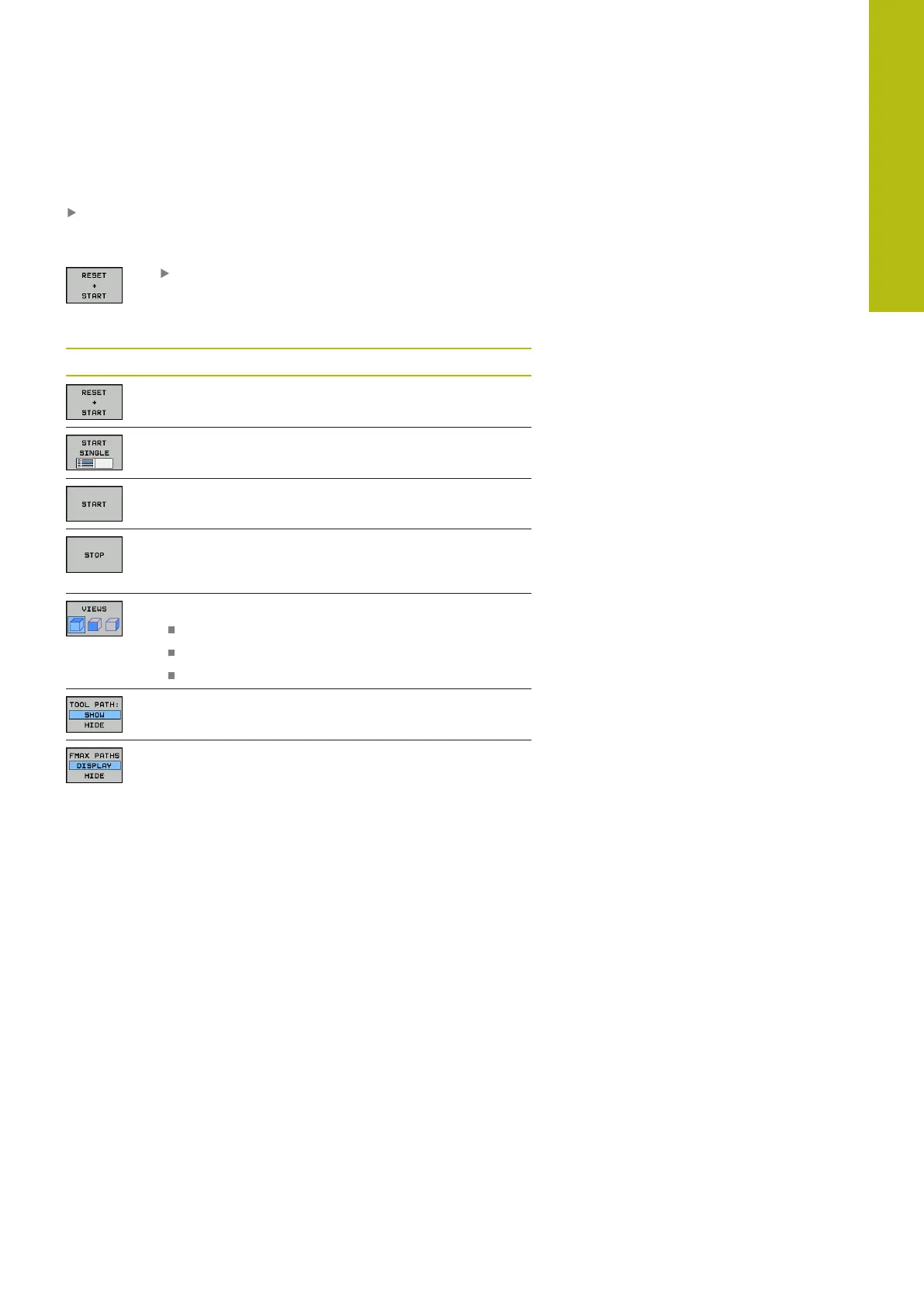

Generating a graphic for an existing program
Use the arrow keys to select the block up to which you want
the graphic to be generated, or press GOTO and enter the
desired block number
Reset previously active tool data and generate
graphics: Press the RESET + START soft key
Additional functions:
Soft key Function
Reset previously active tool data. Generate
programming graphics
Generate programming graphic blockwise
Generate a complete graphic or complete it after
RESET + START
Stop the programming graphics. This soft key
only appears while the control is generating the
programming graphics
Selecting views
Plan view
Front view
Page view
Display or hide tool paths
Display or hide tool paths in rapid traverse
