Special Functions | Tool carrier management
12
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
497
Allocating parameterized tool carriers
To allow the control to factor a parameterized tool carrier into
calculations, you must allocate the tool carrier to a tool and call the
tool again.
Parameterized tool carriers can consist of several sub-
files. If the sub-files are incomplete, the control will
display an error message.
Only use fully parameterized tool carriers!
Proceed as follows to allocate a parameterized tool carrier to a
tool:
Operating mode: Press the Manual operation
key
Press the TOOL TABLE soft key
Press the EDIT soft key
Move the cursor to the KINEMATIC column of the
required tool
Press the SELECT soft key

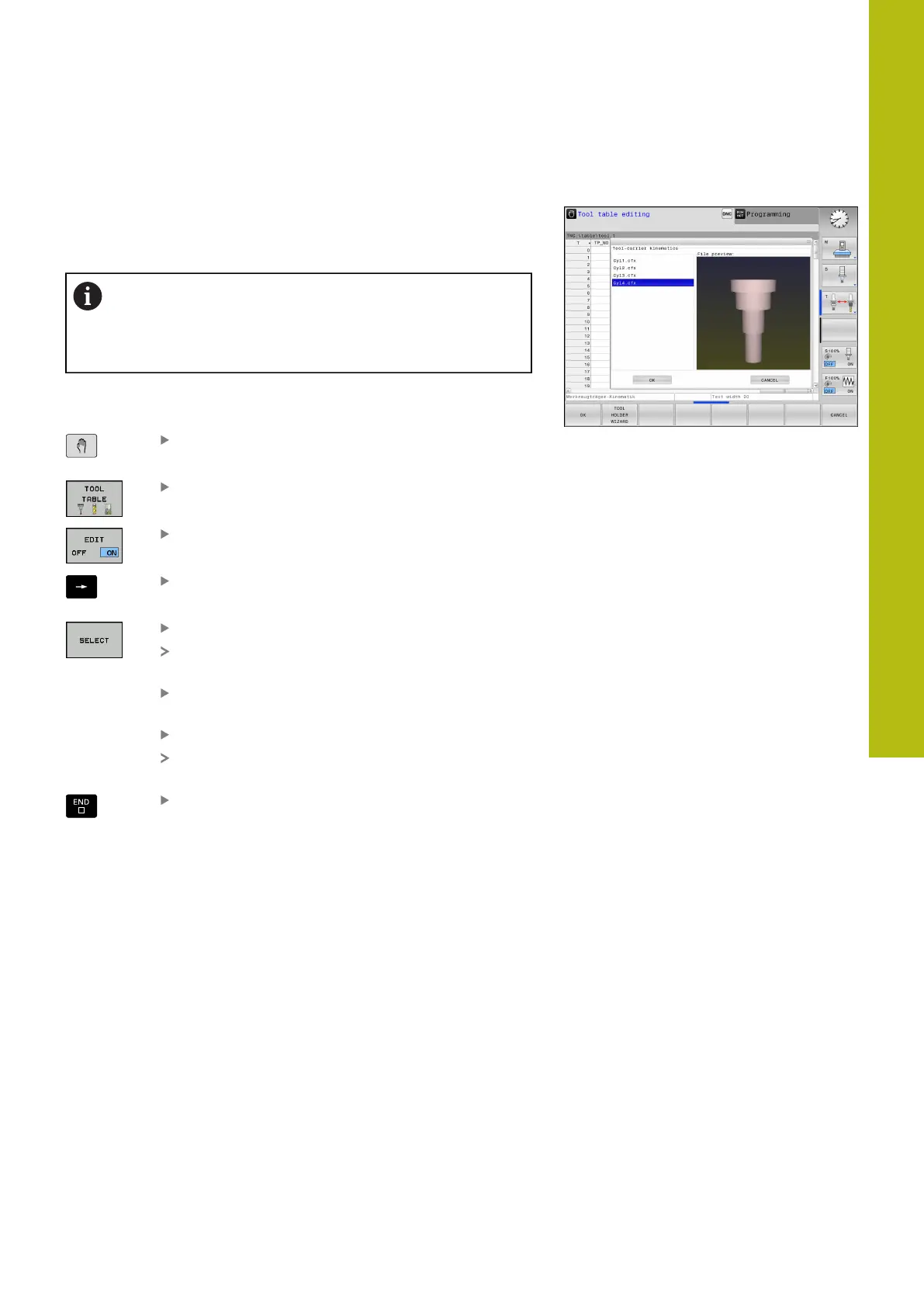

The control opens a pop-up window with
parameterized tool carriers
Select the desired tool carrier using the preview
screen
Press the OK soft key
The control copies the name of the selected tool
carrier to the KINEMATIC column
Exit the tool table
