First Steps with the TNC 620 | Programming the first part
1
68
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

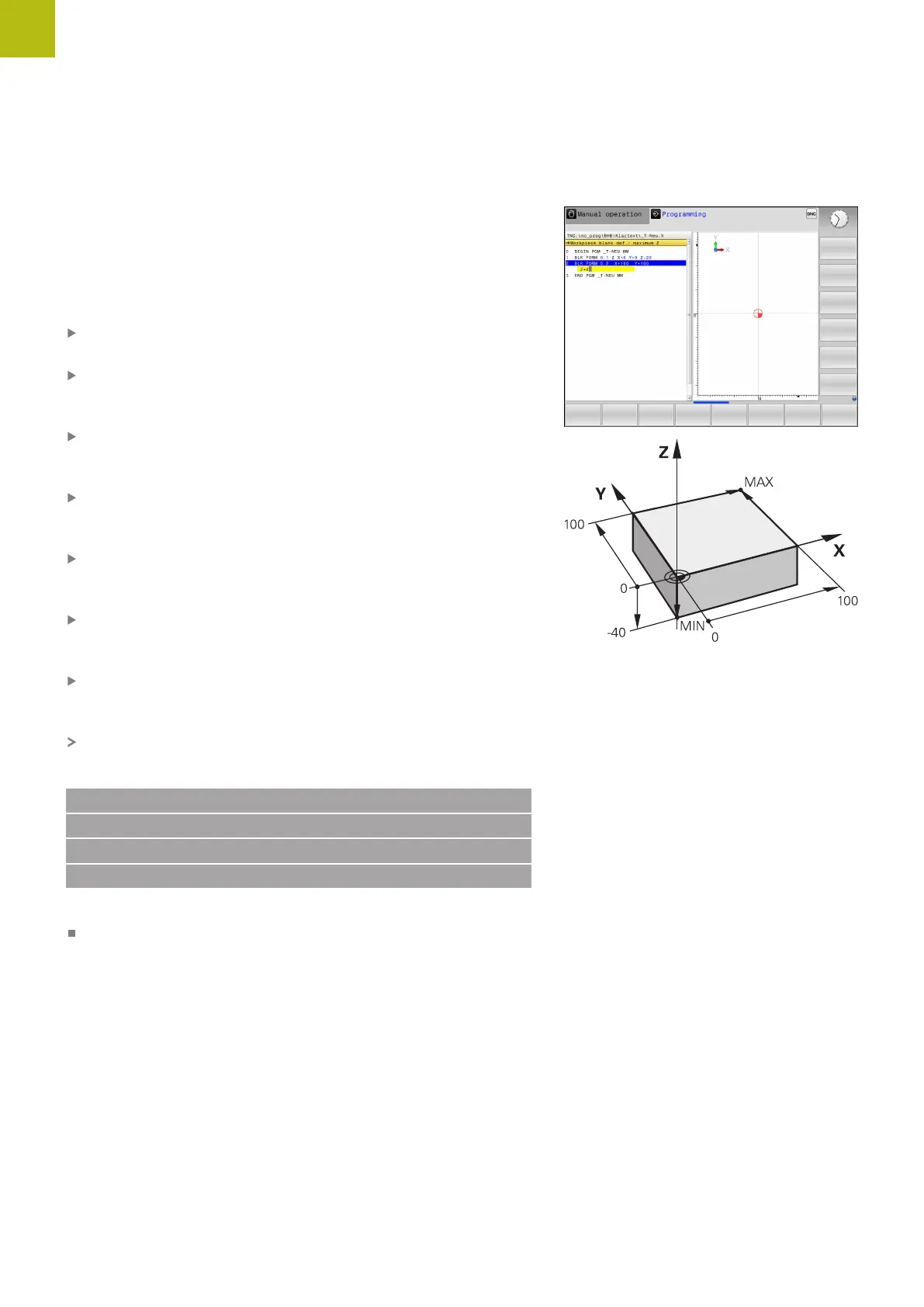

Defining a workpiece blank
After you have created a new program you can define a workpiece
blank. For example, define a cuboid by entering the MIN and MAX
points, each with reference to the selected preset.
After you have selected the desired blank form via soft key, the
control automatically initiates the workpiece blank definition and
asks for the required data:
Working plane in graphic: XY?: Enter the active spindle axis. Z
is saved as default setting. Accept with the ENT key
Workpiece blank def.: Minimum X: Enter the smallest X
coordinate of the workpiece blank with respect to the preset,
e.g. 0, confirm with the ENT key
Workpiece blank def.: Minimum Y: Enter the smallest Y
coordinate of the workpiece blank with respect to the preset,
e.g. 0, confirm with the ENT key
Workpiece blank def.: Minimum Z: Enter the smallest Z
coordinate of the workpiece blank with respect to the preset,
e.g. -40, confirm with the ENT key
Workpiece blank def.: Maximum X: Enter the largest X
coordinate of the workpiece blank with respect to the preset,
e.g. 100, confirm with the ENT key
Workpiece blank def.: Maximum Y: Enter the largest Y
coordinate of the workpiece blank with respect to the preset,
e.g. 100, confirm with the ENT key
Workpiece blank def.: Maximum Z: Enter the largest Z
coordinate of the workpiece blank with respect to the preset,
e.g. 0, confirm with the ENT key
The control ends the dialog.
Example
0 BEGIN PGM NEW MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 END PGM NEW MM
Further information on this topic
Define workpiece blank
Further information: "Creating a new NC program",
page 158
